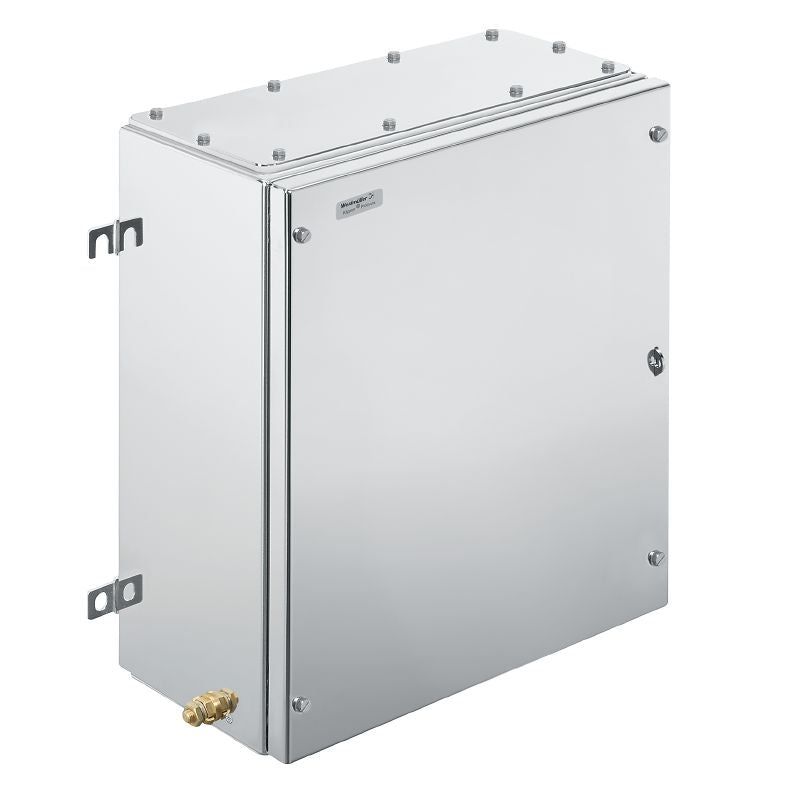

1195040002 - Stainless Steel Terminal Box 458mm H x 382mm W x 150mm D

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

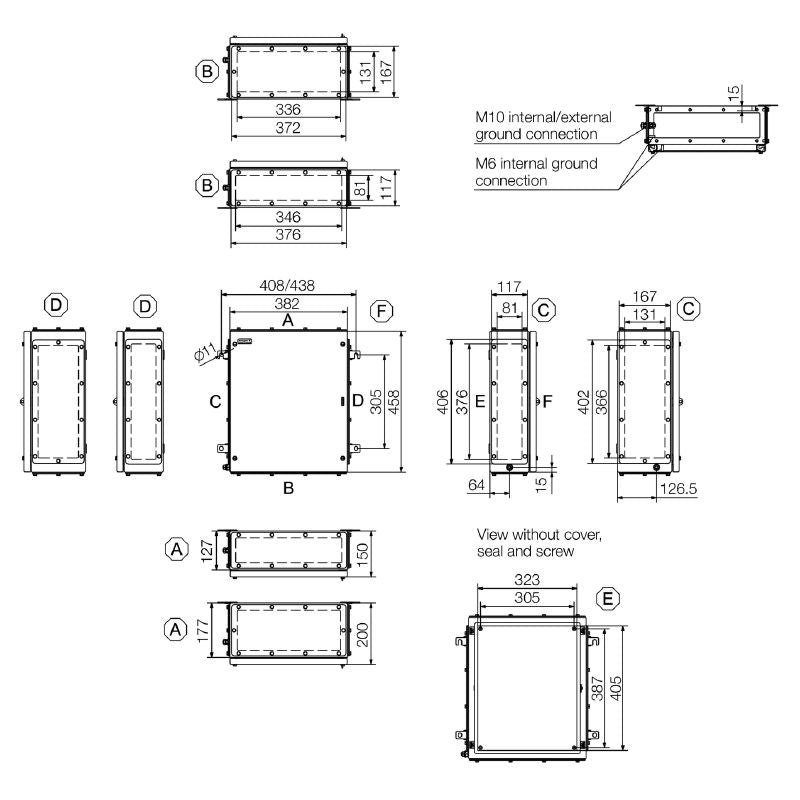

Introducing the Klippon TB MH, a versatile empty terminal box crafted from high-grade stainless steel for robust performance across various applications With dimensions measuring 458 mm in height, 382 mm in width, and 150 mm in depth, this enclosure is thoughtfully designed to facilitate cable entries through multiple gland plates located at the top, bottom, left, and right sides Made from untreated stainless steel grade 1.

4404 (316L), it promises reliability even in challenging environments.

Features and Benefits:

•Designed for explosive risk zones.

•Suitable for oil and gas, chemical, offshore, and onshore industries.

•Includes 4 welded-on mounting feet for easy installation.

•Protection class rated up to IP66.

•Lid secured with 4 hinges for secure access.

•Maximum payload capability of 70 kg.

•Process industry.

•Explosive risk zones.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.
