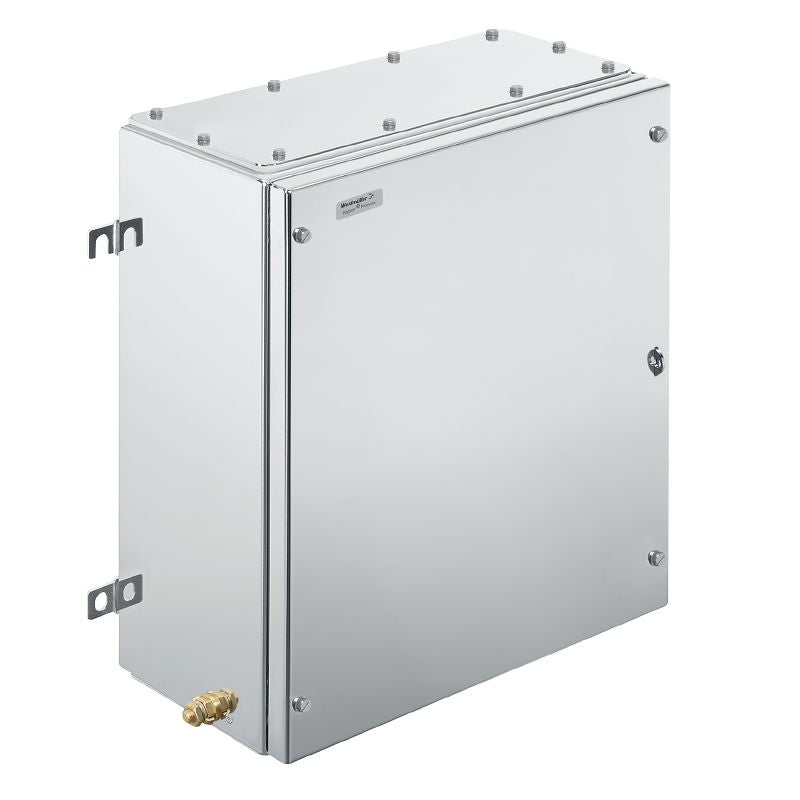

1195020001 - Stainless Steel Terminal Box 458mm x 382mm for Hazardous Areas

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

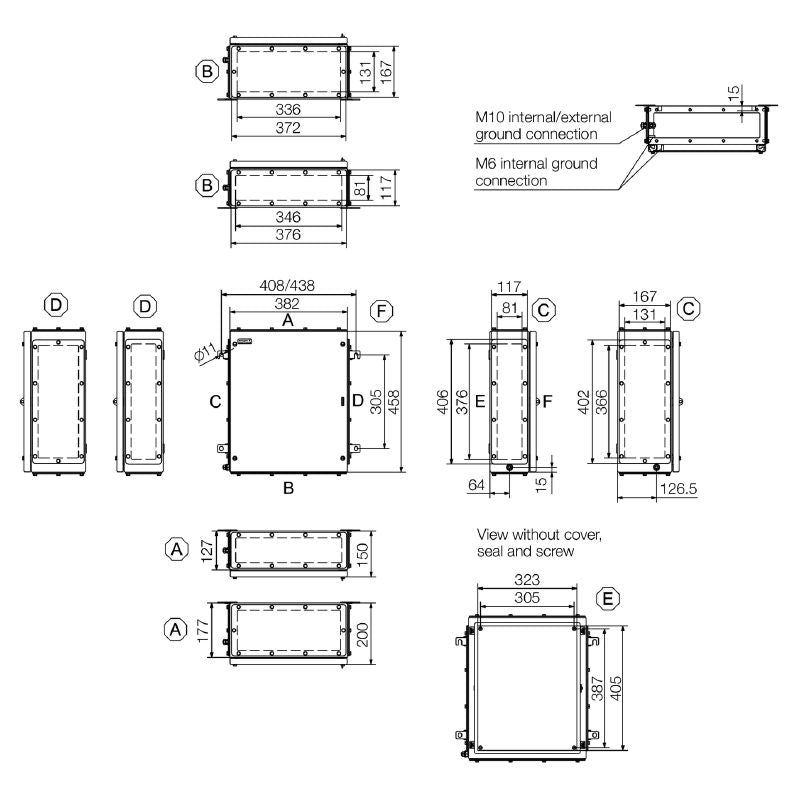

Presenting the KTB MH Terminal Box, an unfilled enclosure crafted from high-grade stainless steel With dimensions of 458 mm in height, 382 mm in width, and 150 mm in depth, this box features gland plates located at both the top and bottom for versatile applications Made from stainless steel 14301 (304) and elegantly electropolished for a shiny silver finish, it meets several industry standards, including RoHS and cULus.

This terminal box is designed to perform reliably in explosive risk areas as well as in the oil, gas, and chemical sectors, suitable for both offshore and onshore environments.

Features and Benefits:

•Constructed from electropolished stainless steel 1.4301 (304).

•IP66 protection when used in appropriate temperature ranges.

•Impact resistance ratings of 7 J for ATEX version and 10 J for standard version.

•Multiple mounting options with welded-on feet and hexagonal screws.

•Includes access openings and integrated fixing features.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
