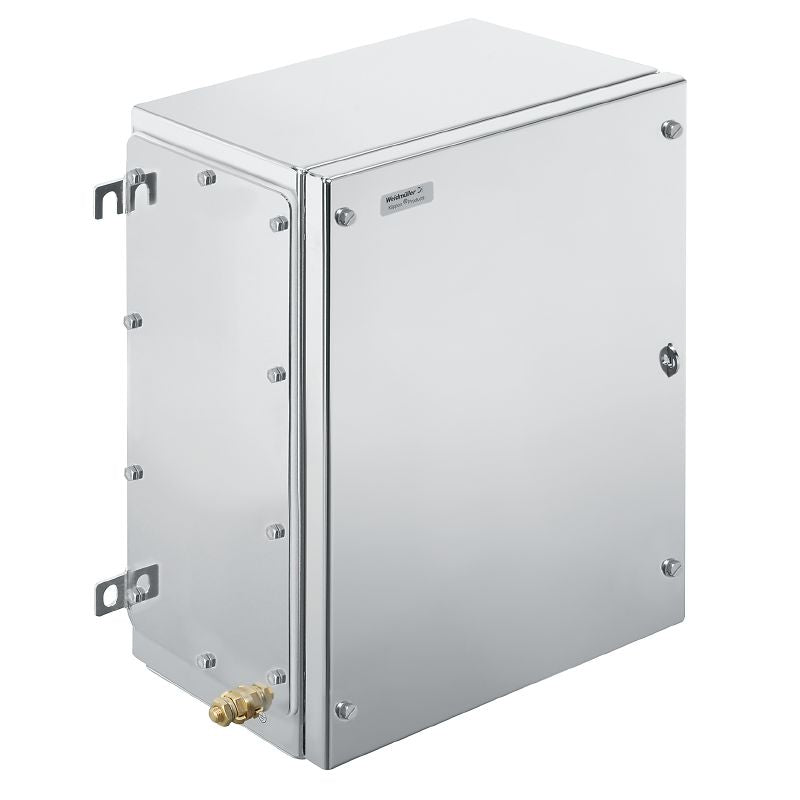

1194920001 - Stainless Steel Terminal Box 400x300x150mm with Multi Hinges

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

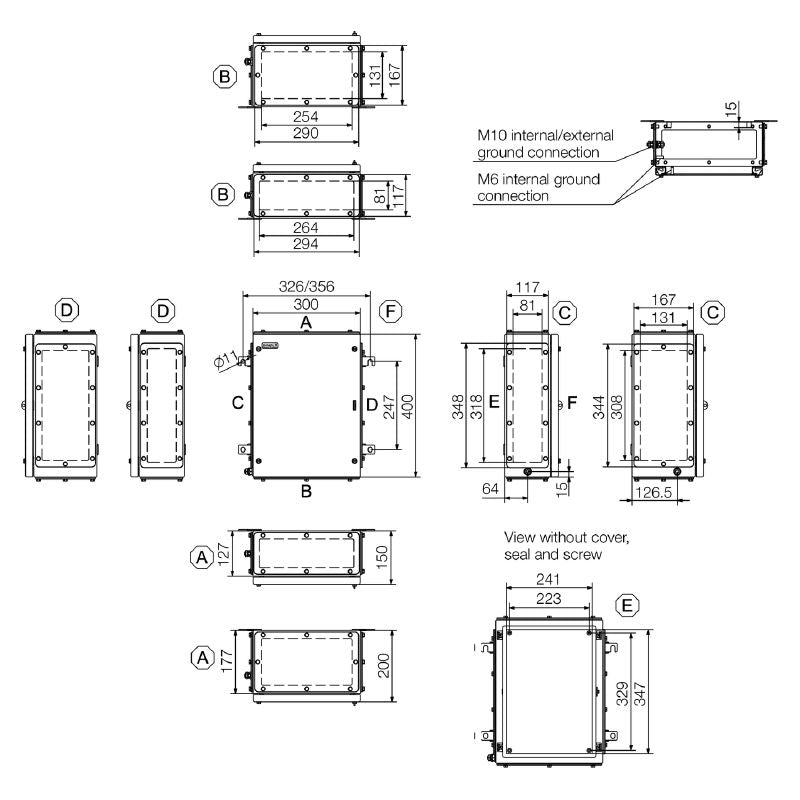

Introducing the Klippon TB MH terminal box, expertly crafted to house multiple hinges and made from high-quality stainless steel With overall dimensions of 400 mm in height, 300 mm in width, and 150 mm in depth, this terminal box is not only functional but also built to last It features gland plates located on both the top and bottom, constructed from electropolished stainless steel 14301 (304) This product adheres to various compliance standards, including RoHS, and comes with a range of approvals, ensuring safety and reliability for your electrical applications.

Features and Benefits:

•Constructed from stainless steel 1.4301 (304).

•Electropolished surface finish.

•Protection class of IP66 and IP67.

•Operating temperature range of -60 °C to 135 °C.

•Equipped with gland plates for easy access.

•Designed for explosive risk zones.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore applications.

Specifications:
