Description:

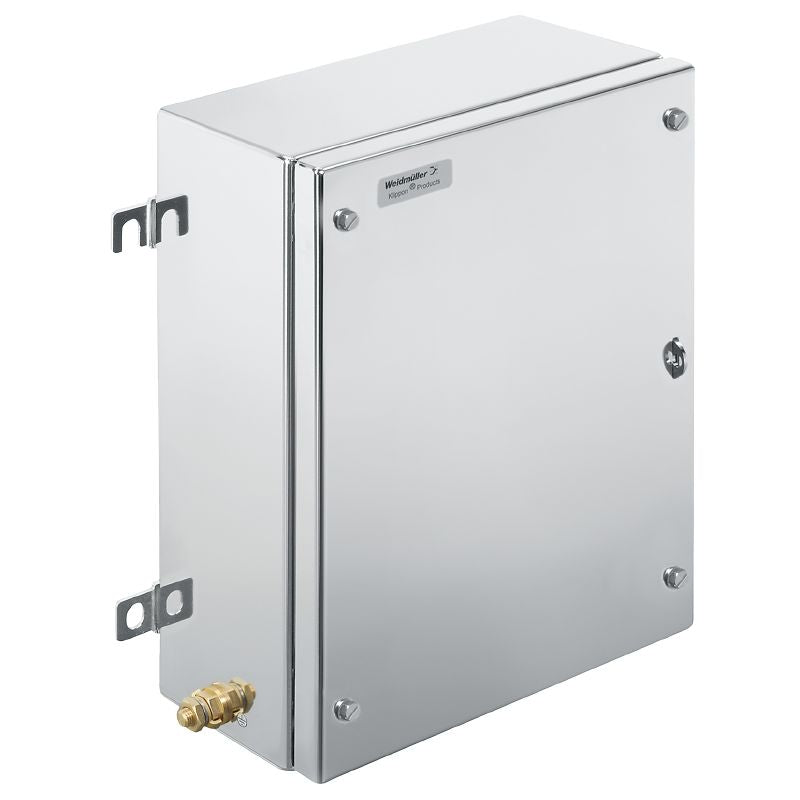

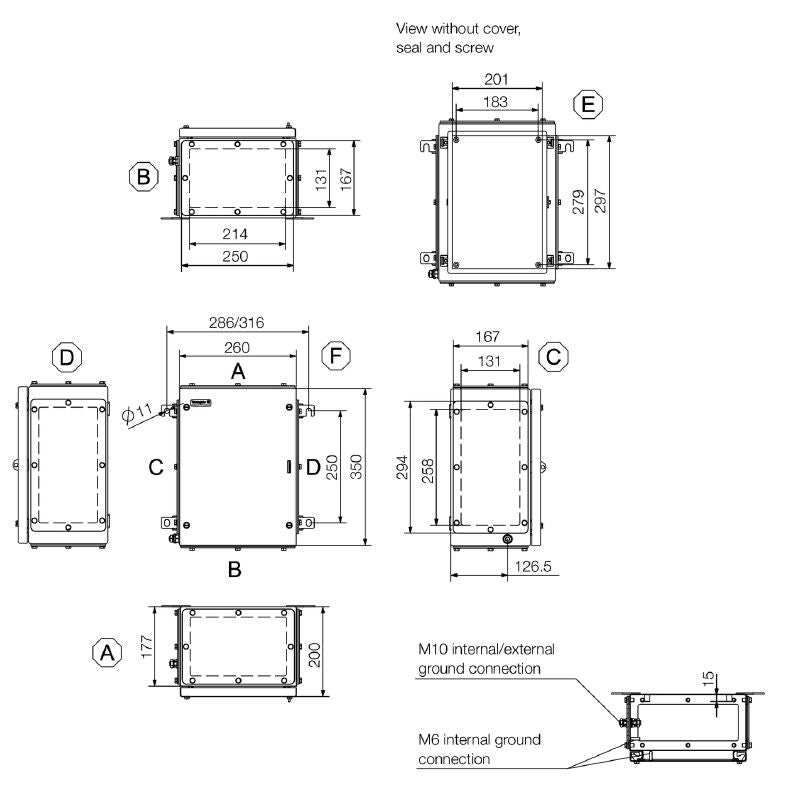

Introducing the KTB MH 352620 S4E3 terminal box, expertly crafted from premium stainless steel 14404 (316L) With a height of 350 mm, width of 260 mm, and depth of 200 mm, this robust empty enclosure is designed for versatility It features gland plates strategically positioned at the bottom, left, and right for easy access and installation The electropolished surface not only enhances its appearance but also provides excellent protection against corrosion, making it an ideal choice for various applications.

Features and Benefits:

•Compliant with ROHS.

•Provides IP66 protection when used within specified temperature limits.

•Designed for use in explosive risk zones, process industries, oil and gas, and offshore/onshore applications.

•Includes four welded mounting feet for secure attachment.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:

Operating temperature (max)	135 °C
Operating temperature (min)	-60 °C
Protection degree	IP66, IP67
Enclosure attachment	4 welded-on mounting feet with 11 mm holes
Flange plate	Yes
Material thickness of enclosure	1.5 mm
Material thickness of cover	1.5 mm
Max. payload	36 kg
Access opening dimensions	297 mm height x 201 mm width
Impact resistance	7 J ATEX version, 10 J version standard
Seal material	Silicone
