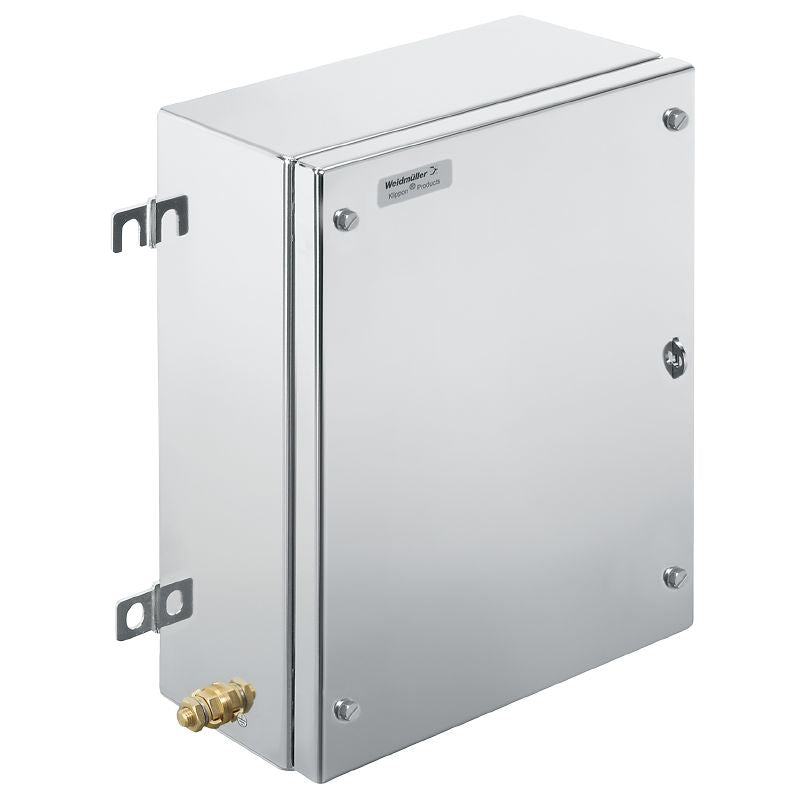

1194860002 - 350mm Stainless Steel Terminal Box for Hazardous Areas

Description:

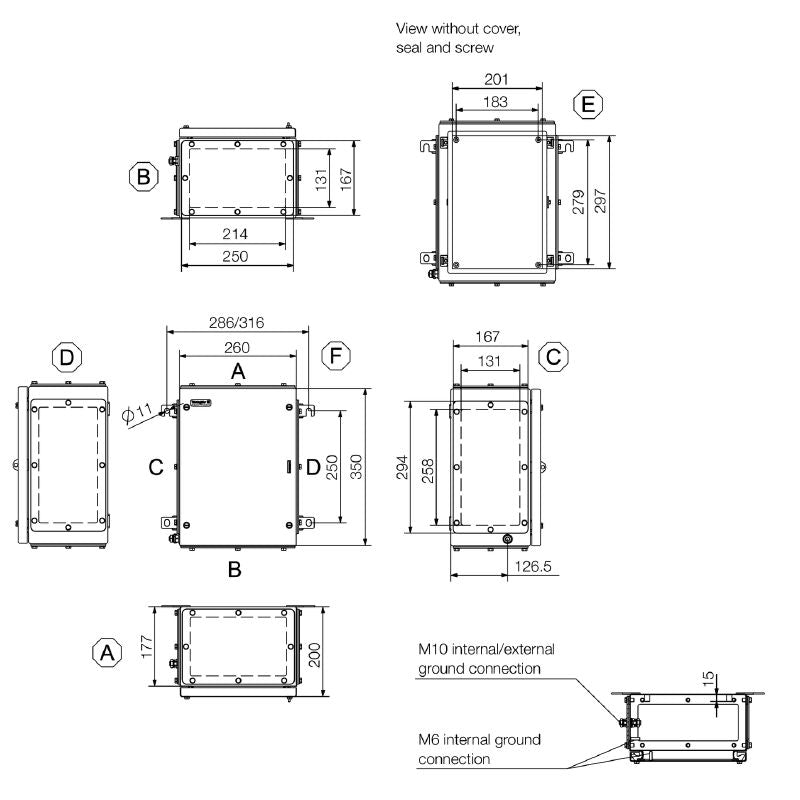

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), an empty enclosure expertly constructed from high-grade stainless steel This durable enclosure stands at 350 mm tall, 260 mm wide, and 200 mm deep, making it versatile for a range of applications Specifically engineered for environments with explosive risk, it is built from stainless steel 14404 (316L) for superior resistance The bottom of the enclosure is equipped with gland plates to facilitate easy cable entry.

With multiple certifications including ATEX and cULus, this terminal box guarantees compliance with safety standards while offering reliable functionality.

Features and Benefits:

•Compliant with RoHS exemption.

•Suitable for explosive risk areas.

•Constructed from high-grade stainless steel (1.4404).

•Max payload capacity of 36 kg.

•IP66 and IP67 protection degree.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.

Specifications:
