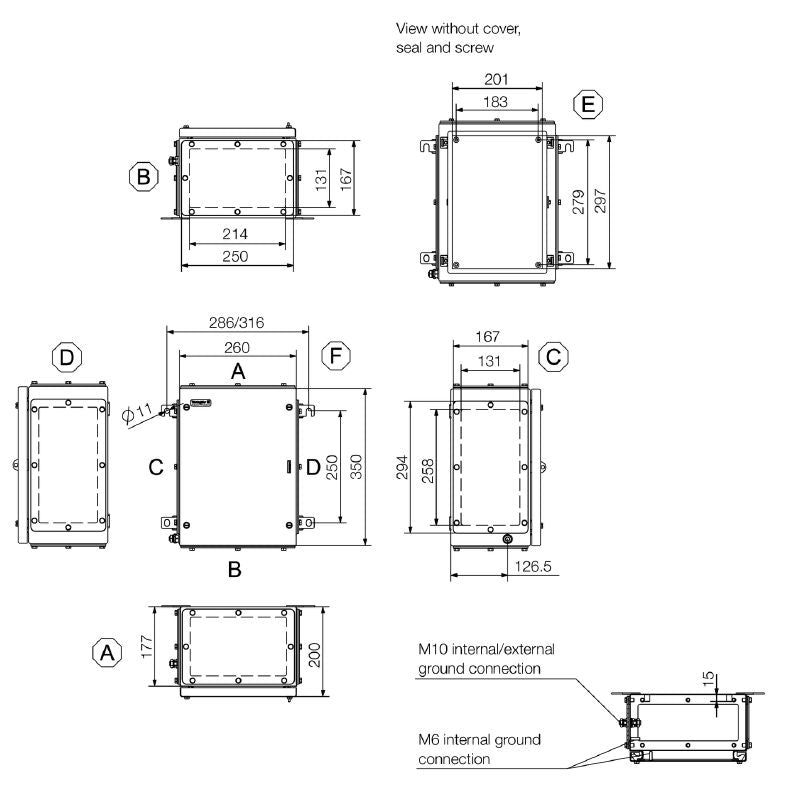

1194850000 - Stainless Steel Terminal Box 350mm x 260mm x 200mm, IP66

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the KTB MH 352620 S4E0, a robust empty enclosure crafted from stainless steel 14404 (316L) featuring an elegantly electropolished surface Measuring 350 mm tall, 260 mm wide, and 200 mm deep, this enclosure is engineered for compliance with RoHS standards and boasts multiple certifications, including ATEX and cULus It operates efficiently within a temperature range of -60 °C to 135 °C, and provides IP66 protection, with a maximum temperature limit of 105 °C.

Perfect for a variety of applications, it ensures safety and reliability in challenging environments.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Electropolished surface finish.

•Access openings with specified heights and widths for easy access.

•Impact resistance of 7 J for ATEX version, 10 J for standard version.

•Four hinged lid design for accessibility.

•Suitable for explosive risk zones and process industry applications.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
