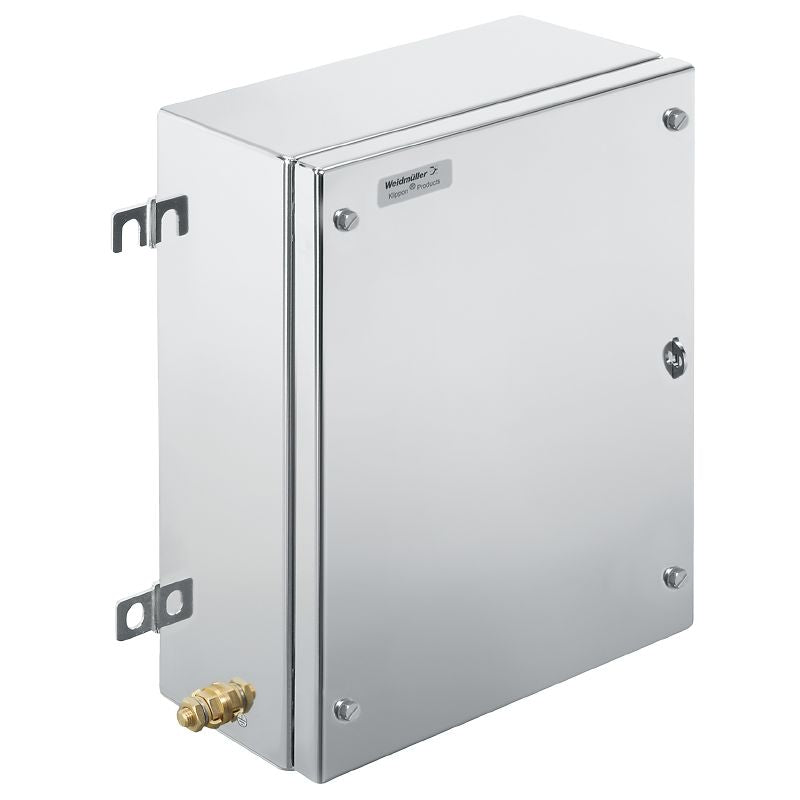

1194820002 - IP66 Stainless Steel Terminal Box, 350mm x 260mm x 150mm

Description:

Introducing the Klippon TB MH, a robust terminal box crafted from high-grade stainless steel for versatile applications With dimensions of 350 mm in height, 260 mm in width, and 150 mm in depth, this box guarantees exceptional environmental protection rated at IP66 It features gland plates on both the top and bottom for easy installation and adaptability Suitable for use in areas with explosion risks, it is designed to meet the demands of industries such as oil and gas, as well as chemical processing.

Features and Benefits:

•Constructed from stainless steel 1.4404 (316L).

•Designed with a maximum payload capacity of 36 kg.

•Impact resistance of 7 J for the ATEX version.

•Features an access opening of 297 mm in height and 201 mm in width.

•Includes 4 welded-on mounting feet for secure attachment.

•Lid is attached with 4 hinges and can open to an angle of 130 degrees.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
