1194810001 - Stainless Steel Terminal Box 350mm x 260mm x 150mm

SKU: SKU: 1194810001 Download PDF

Select a Variant:

1194810001 - Stainless Steel Terminal Box 350mm x 260mm x 150mm

SET THE QTY:

Now $1,223.56 Web pricing policy

~~BEFORE $0.00~~ Now $1,223.56 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

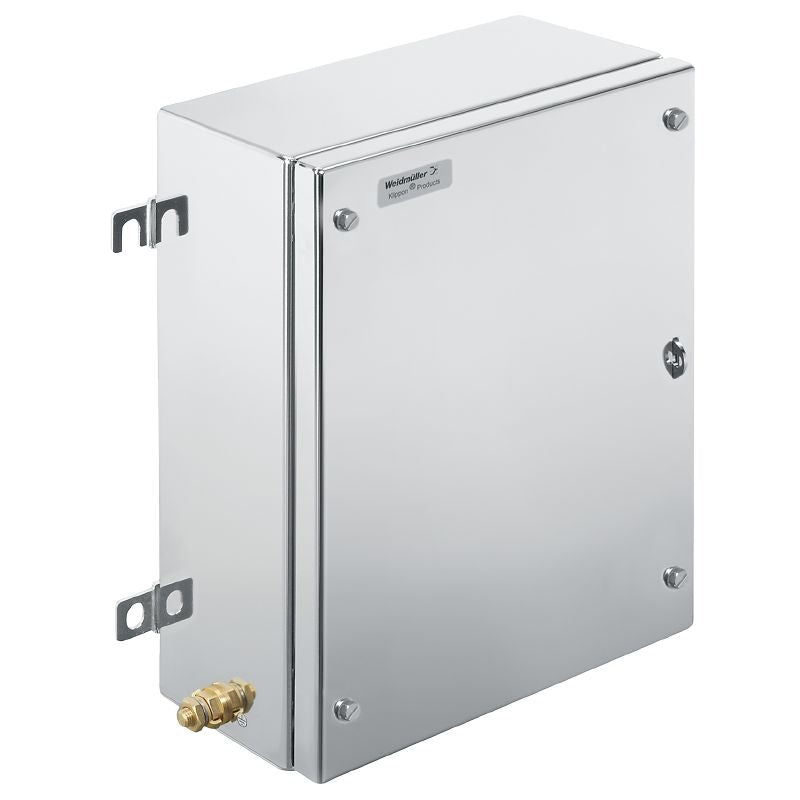

Introducing the Klippon TB MH (Terminal Box - Multi Hinge), a robust empty enclosure crafted from high-quality stainless steel Measuring 350 mm in height, 260 mm in width, and 150 mm in depth, its electropolished surface results in a sophisticated silver finish Built with stainless steel grade 14301 (304), this terminal box offers durability and reliability for various applications Perfect for anyone seeking a reliable enclosure solution.

Features and Benefits:

•Suitable for explosive risk zones.

•Ideal for various industries including oil and gas, chemical, and offshore applications.

•Compliant with RoHS and has a lead-free exemption.

•Contains multiple mounting feet for secure installation.

•IP66 protection rating, suitable for challenging environments.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.

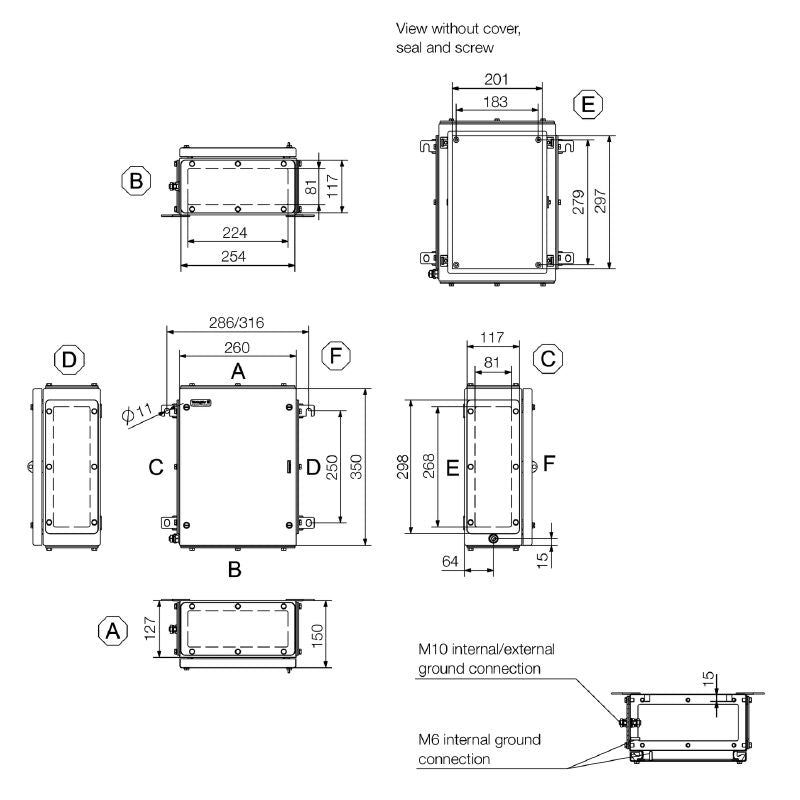

Specifications:

Height	350 mm
Width	260 mm
Depth	150 mm
Operating temperature, max	135 °C
Operating temperature, min	-60 °C
Protection class	IP66
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Max. payload	36 kg
Access opening: height	297 mm
Access opening: width	201 mm
Gland plates	Bottom
Material	Stainless steel 1.4301 (304)
Surface finish	electropolished
