1194760001 - Stainless Steel 306x306x200mm Electropolished Terminal Enclosure

1194760001 - Stainless Steel 306x306x200mm Electropolished Terminal Enclosure

SKU: 1194760001   Download PDF

Select a Variant:
  • 1194760001 - Stainless Steel 306x306x200mm Electropolished Terminal Enclosure
Qty:
Now $1,323.27   Web pricing policy
BEFORE   $0.00 Now $1,323.27 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the versatility of the KTB MH 303020 S2E1 empty enclosure, perfect for a range of applications Made from durable stainless steel 14301 (304), this enclosure stands at 306 mm tall, 306 mm wide, and 200 mm deep With gland plates located at the bottom and an attractive electropolished silver finish, it combines functionality and style seamlessly.

Features and Benefits:

    •Constructed from stainless steel 1.4301 (304).

    •Electropolished for a silver appearance.

    •IP66 protection degree when used correctly.

    •Possible usage in explosive risk zones.

    •Accommodates various cable gland sizes.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore.

    •Onshore.

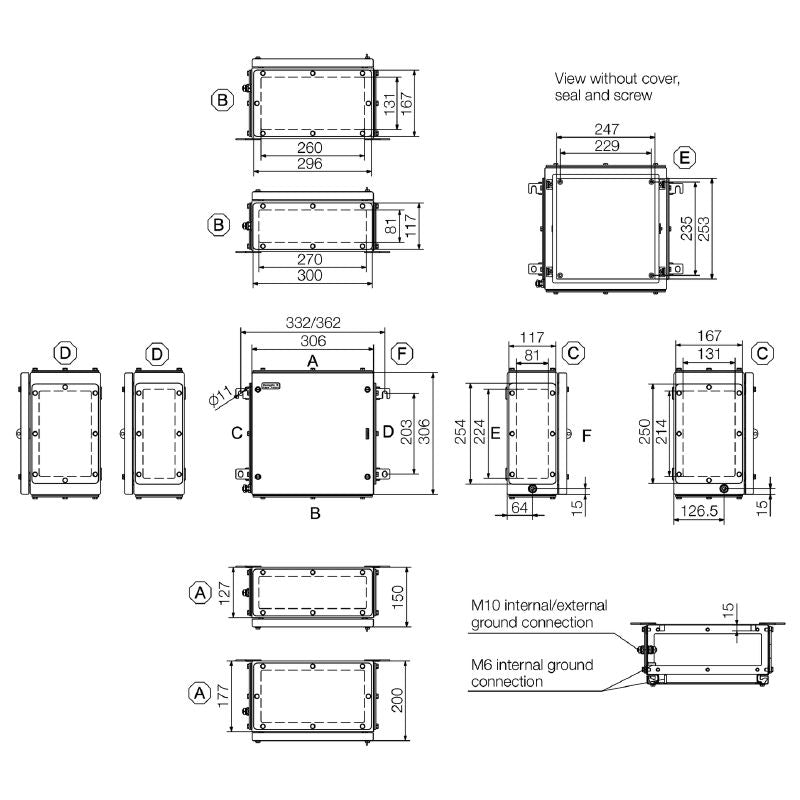

Specifications:

 Height 306 mm
 Width 306 mm
 Depth 200 mm
 Net weight 11,736.588 g
 Operating temperature -60 °C to 135 °C
 Protection class IP66 and IP67
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Max. payload 37 kg
 Access opening height 253 mm
 Access opening width 247 mm
