1194730003 - Stainless Steel Terminal Box, 306mm x 306mm x 150mm

SKU: SKU: 1194730003 Download PDF

Select a Variant:

1194730003 - Stainless Steel Terminal Box, 306mm x 306mm x 150mm

SET THE QTY:

Now $1,347.71 Web pricing policy

~~BEFORE $0.00~~ Now $1,347.71 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

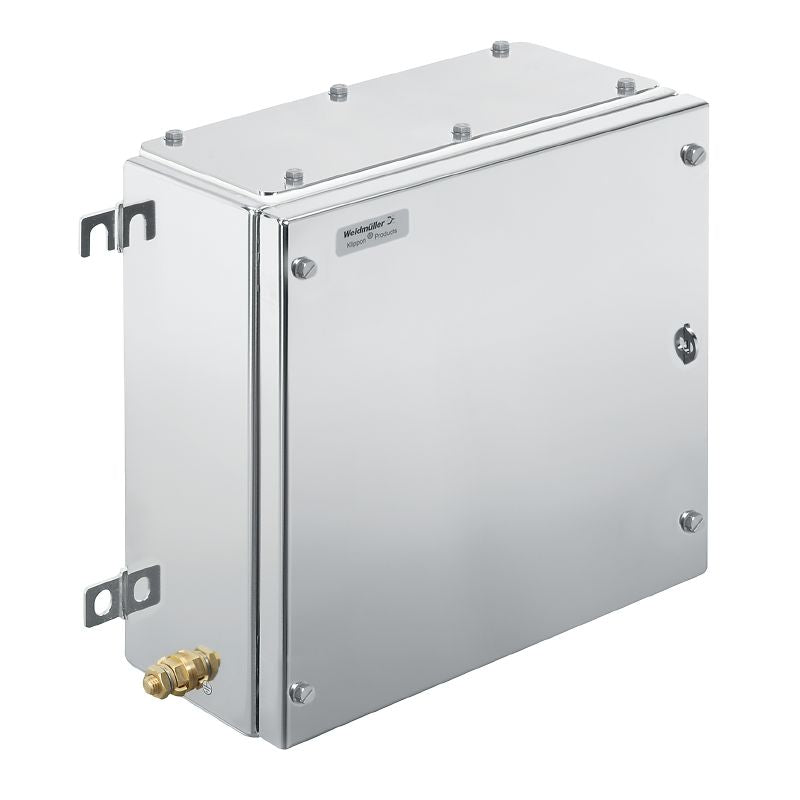

Introducing the Klippon TB MH, a robust empty terminal box crafted from high-quality stainless steel grade 14301 (304) Its untreated silver finish gives it a sleek appearance This box measures 306 mm in height and width, and 150 mm in depth, making it a versatile option for your needs Gland plates are conveniently located on the bottom and both sides, providing easy access for cable entries.

Features and Benefits:

•Composed of untreated stainless steel 1.4301.

•Manufactured for use in environments with explosive risks such as the process, oil and gas, and chemical industries.

•Fitted with four welded-on mounting feet and an IP66 protection rating, maintaining functionality in harsh conditions.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

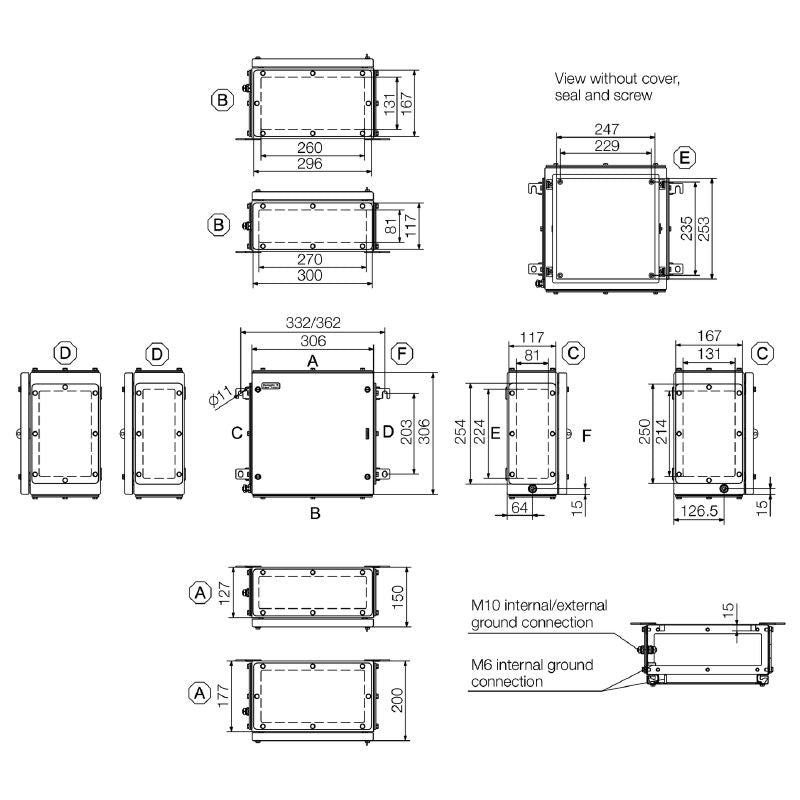

Specifications:

Depth	150 mm
Height	306 mm
Width	306 mm
Operating Temperature	-60 °C to 135 °C
Protection Degree	IP66/IP67
Max Payload	37 kg
Material Thickness of Cover	1.5 mm
Material Thickness of Enclosure	1.5 mm
Material Thickness of Flange	3 mm
Number of Lid Screws	4
Opening Angle Lid	130 °
Torque for Lid Screws	2.5 Nm
Seal Material	Silicone
Enclosure Attachment	4 welded-on mounting feet with 11 mm holes
