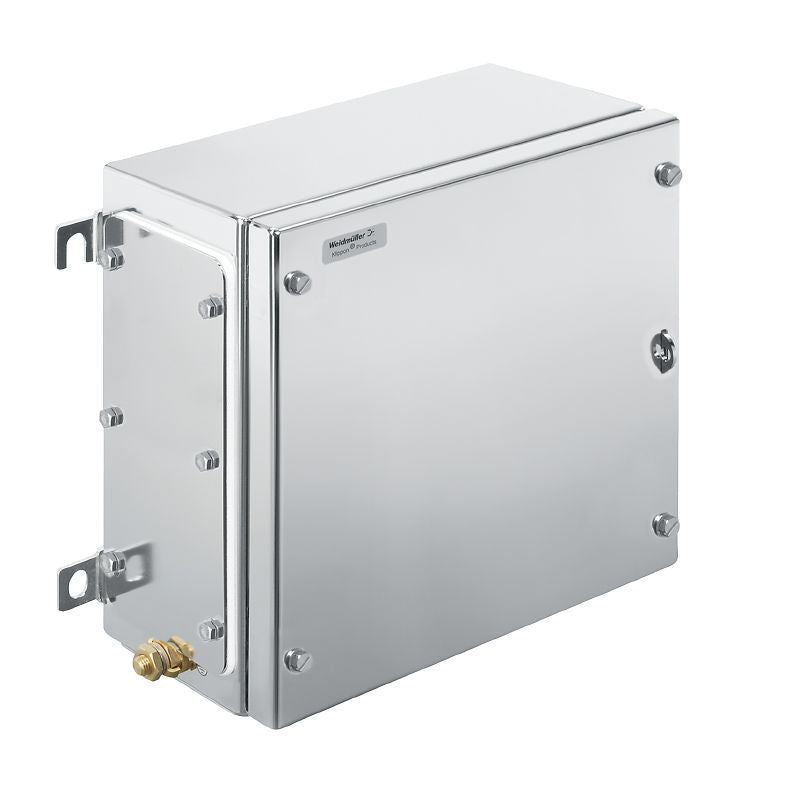

1194690000 - Stainless Steel Terminal Box, 260mm x 260mm x 200mm

SKU: SKU: 1194690000 Download PDF

Select a Variant:

1194690000 - Stainless Steel Terminal Box, 260mm x 260mm x 200mm

SET THE QTY:

Now $1,527.39 Web pricing policy

~~BEFORE $0.00~~ Now $1,527.39 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the versatility of this stainless steel enclosure, expertly crafted for terminal box applications With dimensions of 260 mm in height, 260 mm in width, and 200 mm in depth, this enclosure provides ample space for your needs It features gland plates on the top, bottom, left, and right sides for convenient wiring Made from high-grade electropolished stainless steel (grade 14404, 316L), this product is built to last and holds certifications including RoHS compliance and UL file number E243298, ensuring it meets industry standards for safety and quality.

Features and Benefits:

•Compliant with RoHS requirements.

•Multiple gland plate configurations.

•Constructed of durable stainless steel.

•Electropolished finish for enhanced corrosion resistance.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore applications.

Specifications:

Operating temperature, max.	135 °C
Operating temperature, min.	-60 °C
Depth	200 mm
Height	260 mm
Width	260 mm
Net weight	8,200 g
Protection degree	IP66, IP67
Material thickness of enclosure	1.5 mm
Max. payload	27 kg
Access opening: height	207 mm
Access opening: width	201 mm
Gland plates	Bottom, top, left, right
Lid attachment	4 hinges and M6 hex-head slotted screws SW10
Surface finish	electropolished
