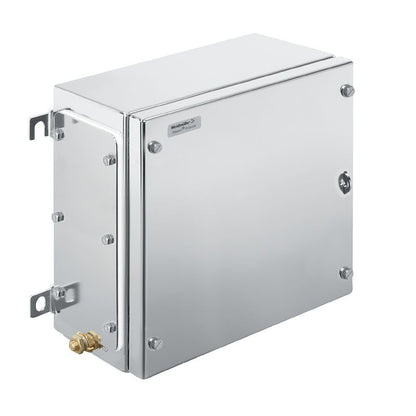

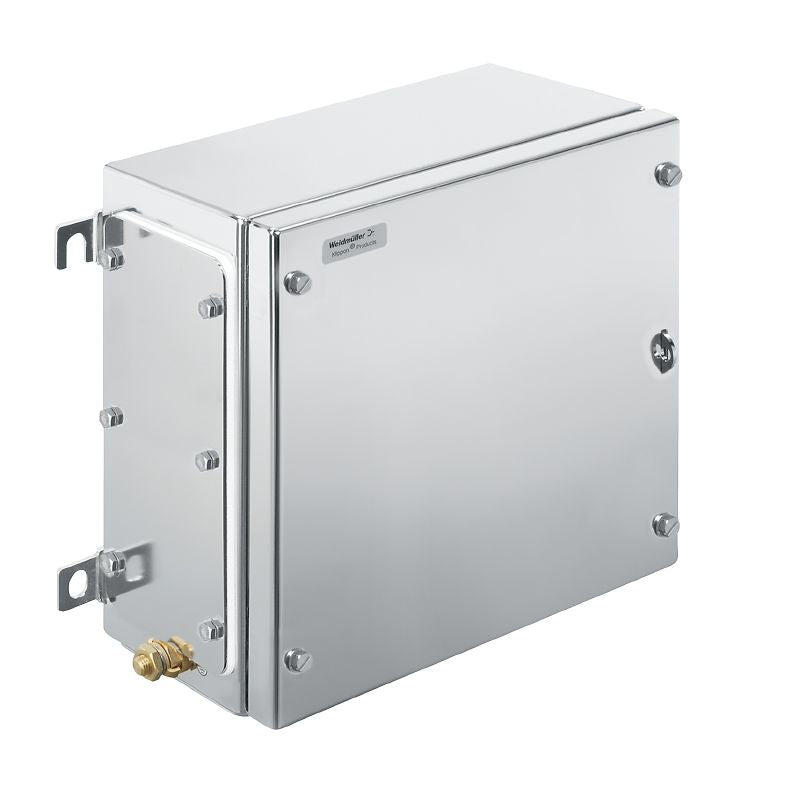

1194680002 - Klippon Stainless Steel Terminal Box 260x260x200mm Enclosure

Description:

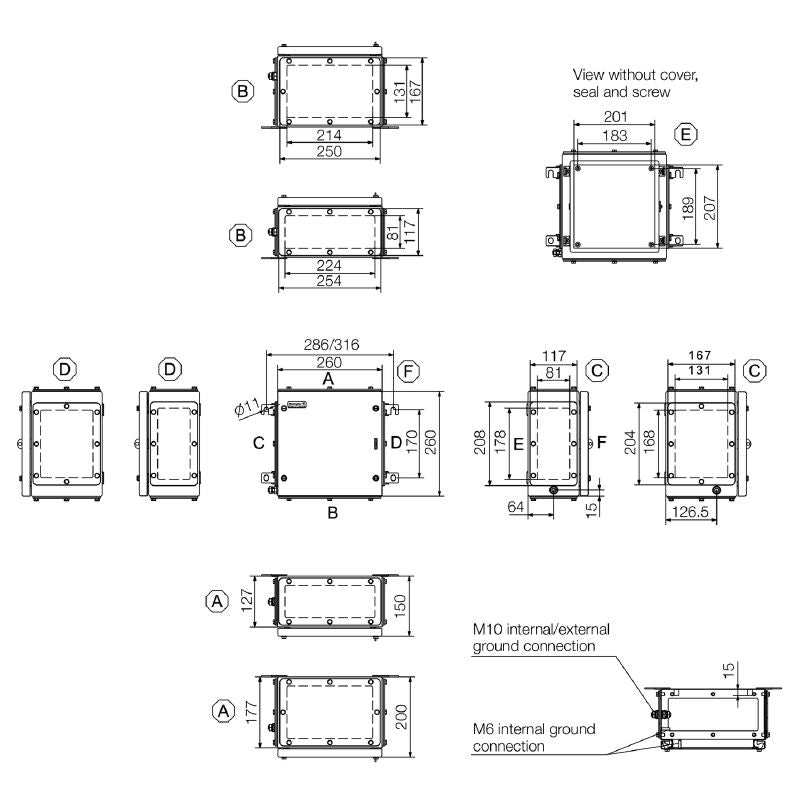

Introducing the Klippon TB MH terminal box, an empty enclosure crafted from high-quality stainless steel With dimensions of 260 mm in height, 260 mm in width, and 200 mm in depth, this robust enclosure is both functional and stylish It is equipped with gland plates situated at the bottom, left, and right sides for easy access and installation Made from stainless steel 14404 (316L) in its natural silver finish, it’s designed for durability and versatility in various applications.

Features and Benefits:

•Compliant with RoHS standards.

•Equipped with an access opening height of 207 mm and width of 201 mm.

•Includes flange plate for secure attachment.

•Impact resistance rated at 7 J for ATEX versions and 10 J for standard versions.

•Maximum payload capacity of 27 kg.

•Protection class rated at IP66 and IP67.

•Designed for use in explosive risk zones.

•Suitable for the process industry.

•Applicable to the oil and gas industry.

•Recommended for use in chemical industry settings.

•Capable of offshore and onshore deployment.

Specifications:
