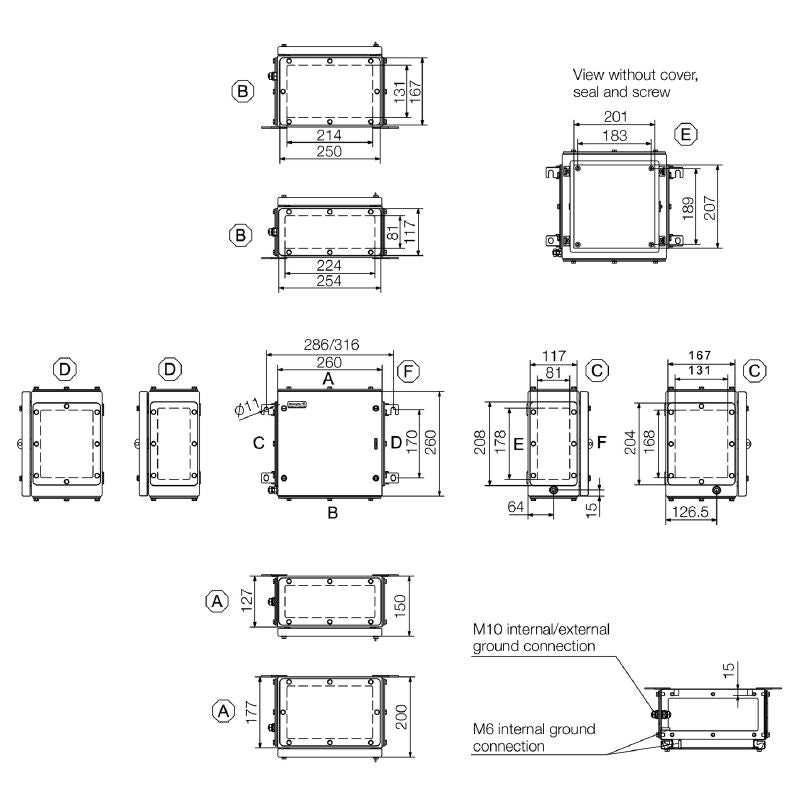

1194680001 - Stainless Steel Multi-Hinge Terminal Box, 260mm x 260mm x 200mm

SKU: SKU: 1194680001 Download PDF

Select a Variant:

1194680001 - Stainless Steel Multi-Hinge Terminal Box, 260mm x 260mm x 200mm

SET THE QTY:

Now $1,383.15 Web pricing policy

~~BEFORE $0.00~~ Now $1,383.15 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the KTB MH 262620 S2E3, a versatile empty terminal box crafted for multi-hinge applications Made from durable stainless steel, this terminal box showcases a polished silver finish and dimensions of 260 mm in height, 260 mm in width, and 200 mm in depth Its design includes strategically placed gland plates on the bottom, left, and right sides, ensuring efficient functionality and adaptability for various uses.

This high-quality stainless steel 14301 (304) construction guarantees longevity and resistance to wear.

Features and Benefits:

•RoHS compliant.

•Suitable for explosive risk zones.

•Designed for use in process, oil and gas, chemical, offshore, and onshore industries.

•Integrated mounting options with 4 welded-on feet.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:

Operating temperature range	-60 °C to 135 °C
Protection class	IP66, IP67
Material thickness of enclosure	1.5 mm
Material thickness of cover	1.5 mm
Mounting dimensions	{'height': '170 mm', 'width': '316 mm'}
Max payload	27 kg
Access opening dimensions	{'height': '207 mm', 'width': '201 mm'}
Number of lid screws	4
Lid opening angle	130 degrees
Surface finish	electropolished
Seal material	Silicone
Approval certifications	['ATEX', 'cULus', 'DNV', 'IECEX', 'INMETRO', 'NEPSI']
