1194660002 - Stainless Steel Terminal Box 260mm x 260mm x 200mm

SKU: SKU: 1194660002 Download PDF

Select a Variant:

1194660002 - Stainless Steel Terminal Box 260mm x 260mm x 200mm

SET THE QTY:

Now $1,147.39 Web pricing policy

~~BEFORE $0.00~~ Now $1,147.39 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

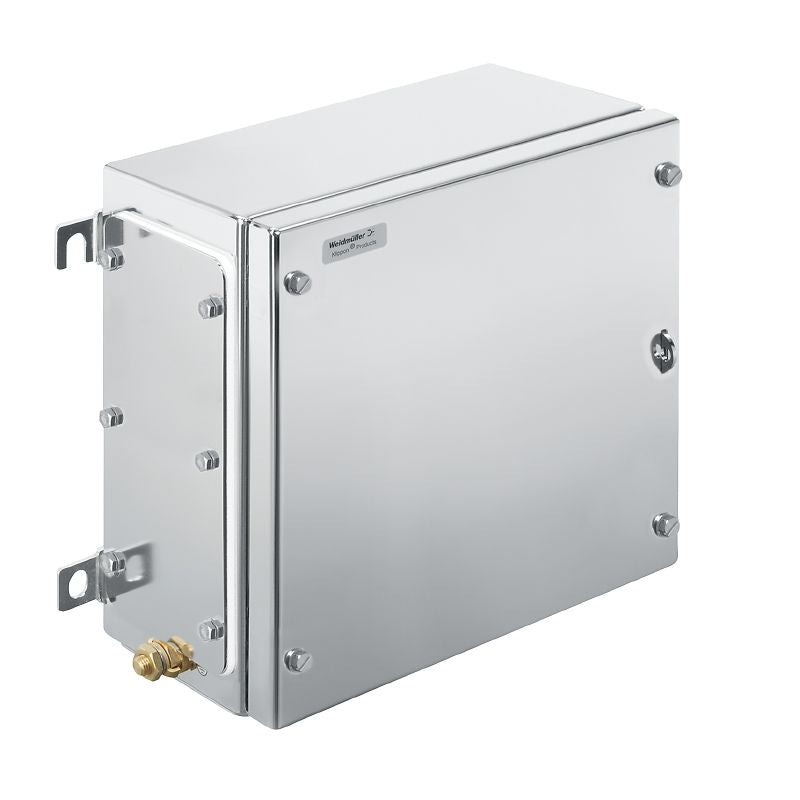

Discover the Klippon TB MH (Terminal Box - Multi Hinge), a versatile empty enclosure crafted from high-quality stainless steel With dimensions of 260 mm in height, 260 mm in width, and 200 mm in depth, this robust enclosure is designed for durability, utilizing untreated stainless steel 14404 (316L) It also comes equipped with gland plates on the bottom, enhancing its functionality for various applications.

Ideal for safe and secure housing of electrical components, the Klippon TB MH combines strength with practicality.

Features and Benefits:

•Approvals include RoHS and multiple safety certifications such as cULus, ATEX, IECEX, and DNV.

•Protection degrees IP66 and IP67.

•Impact resistance of 7 J for the ATEX version.

•Multiple cable gland options and mounting feet for secure installation.

•Designed for explosive risk zones and various industrial applications.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore and onshore use.

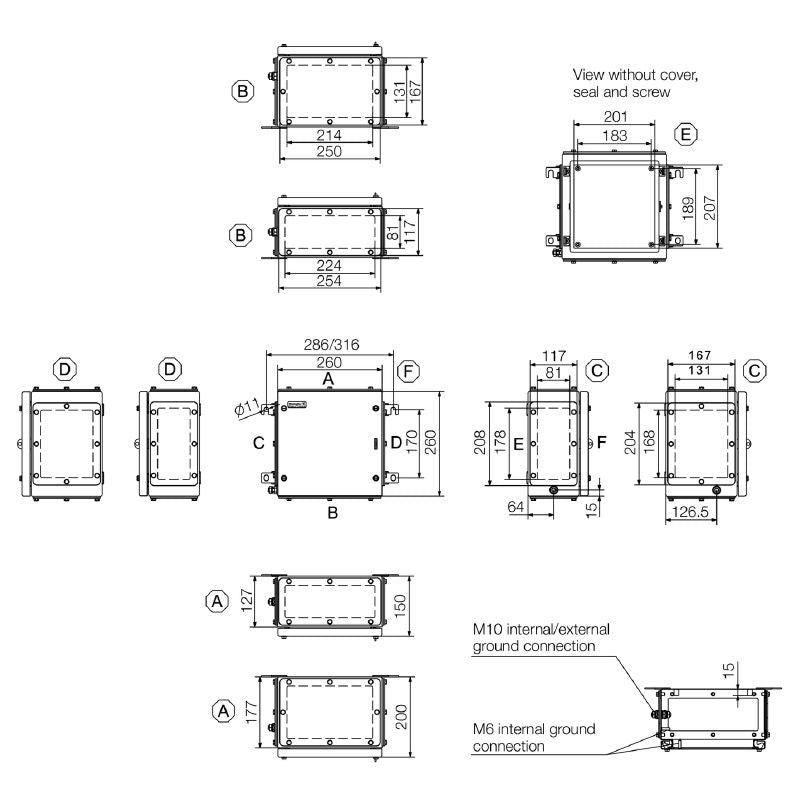

Specifications:

Height	260 mm
Width	260 mm
Depth	200 mm
Material	Stainless steel 1.4404 (316L)
Operating temperature	-60 °C to 135 °C
Protection class	IP66, IP67
Net weight	10.363588 kg
Access opening height	207 mm
Access opening width	201 mm
Max payload	27 kg
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
