1194630001 - Stainless Steel Terminal Box 260mm for Gland Plates

1194630001 - Stainless Steel Terminal Box 260mm for Gland Plates

SKU: 1194630001   Download PDF

Select a Variant:
  • 1194630001 - Stainless Steel Terminal Box 260mm for Gland Plates
Qty:
Now $1,289.18   Web pricing policy
BEFORE   $0.00 Now $1,289.18 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

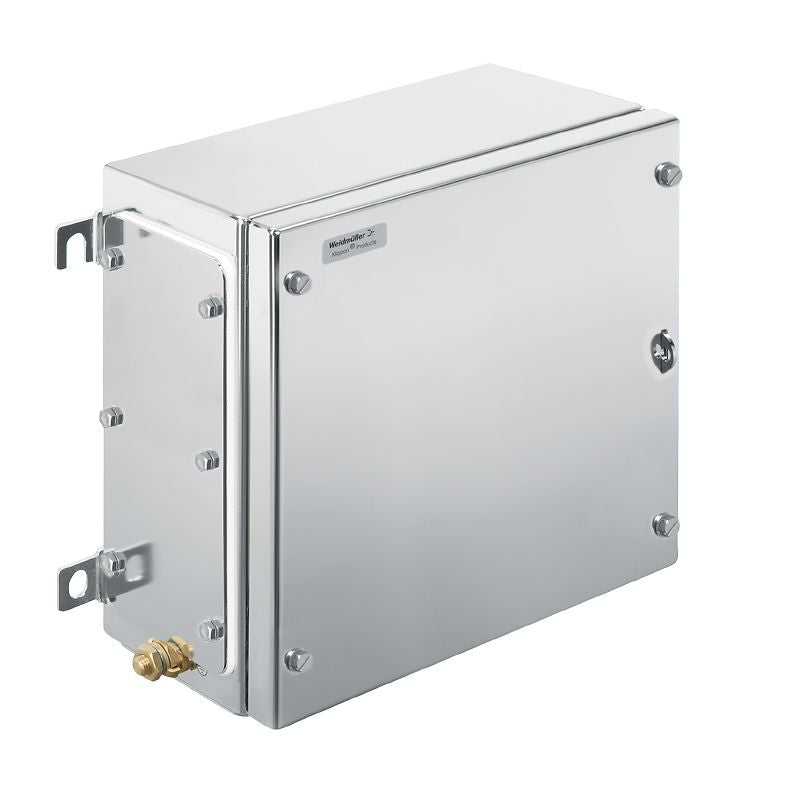

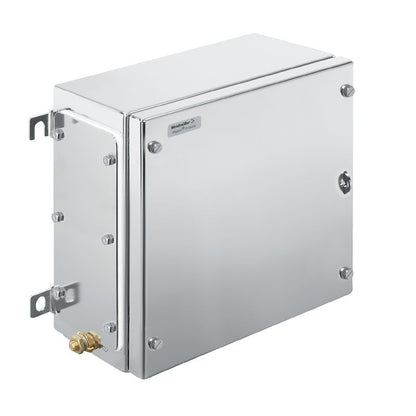

Discover the Klippon TB MH (Terminal Box - Multi Hinge), a versatile empty enclosure designed from high-grade stainless steel This robust box measures 260 mm in height, 260 mm in width, and 150 mm in depth, making it perfect for various applications It is equipped with gland plates positioned at the bottom, left, and right for easy installation Crafted from electropolished stainless steel 14301 (304), its elegant silver finish adds a touch of professionalism to any setup.

Features and Benefits:

    •Stainless steel construction for durability.

    •Electropolished surface for enhanced protection.

    •Mounting feet for secure attachment.

    •Capable of withstanding explosive risk environments.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore.

    •Onshore.

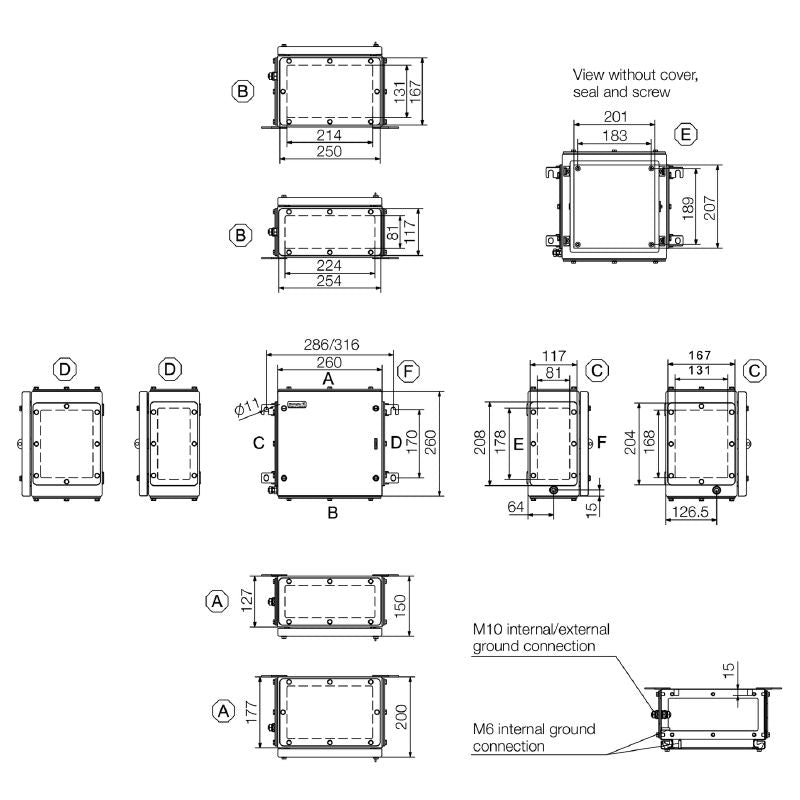

Specifications:

 Height 260 mm
 Width 260 mm
 Depth 150 mm
 Operating temperature (max) 135 °C
 Operating temperature (min) -60 °C
 Protection degree IP66, IP67
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Material thickness of flange 3 mm
 Max. payload 27 kg
 Access opening height 207 mm
 Access opening width 201 mm
 Flange plate Yes
 Lid Yes
 Seal material Silicone
