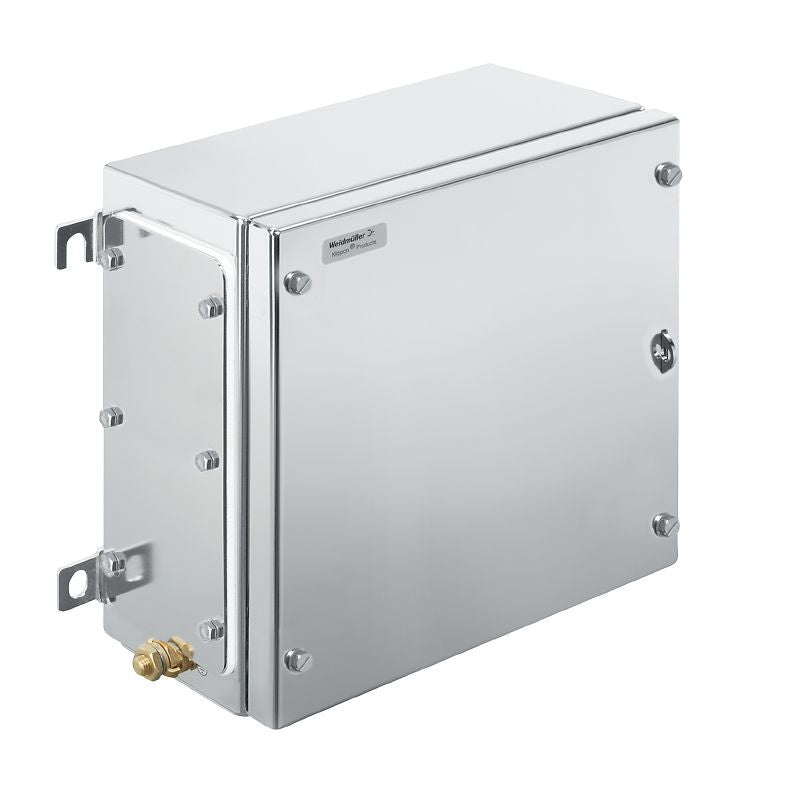

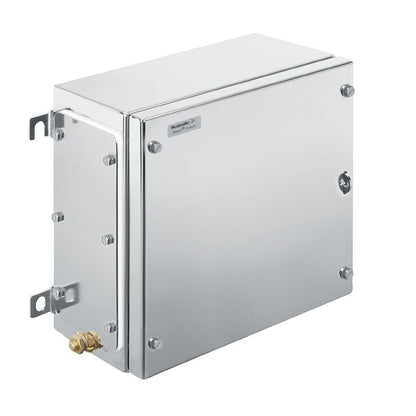

1194610003 - Stainless Steel Terminal Enclosure 260mm x 260mm x 150mm

1194610003 - Stainless Steel Terminal Enclosure 260mm x 260mm x 150mm

SKU: 1194610003   Download PDF

Select a Variant:
  • 1194610003 - Stainless Steel Terminal Enclosure 260mm x 260mm x 150mm
Qty:
Now $989.18   Web pricing policy
BEFORE   $0.00 Now $989.18 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the Klippon TB MH, a robust empty enclosure tailored for terminal applications Crafted from high-grade stainless steel 14301 (304), this enclosure is built to perform in diverse environments With dimensions measuring 260 mm in height, 260 mm in width, and 150 mm in depth, it offers a compact yet functional design It is also compatible with bottom gland plates and has a total net weight of around 9,541.

788 grams Perfect for reliable and durable electrical installations.

Features and Benefits:

    •Constructed from stainless steel 1.4301 (304).

    •Suitable for explosive risk zones.

    •Applicable in process, oil and gas, and chemical industries.

    •IP66 and IP67 protection ratings.

    •Heat resistance up to 135 °C.

    •Explosive risk zone.

    •Process industry.

    •Oil and gas industry.

    •Chemical industry.

    •Offshore.

    •Onshore.

Specifications:

 Depth 150 mm
 Height 260 mm
 Width 260 mm
 Operating temperature -60 °C to 135 °C
 Protection class IP66/IP67
 Certification cULus E243298, ATEX PTB11ATEX2019
 Material thickness of cover 1.5 mm
 Material thickness of enclosure 1.5 mm
 Max payload 27 kg

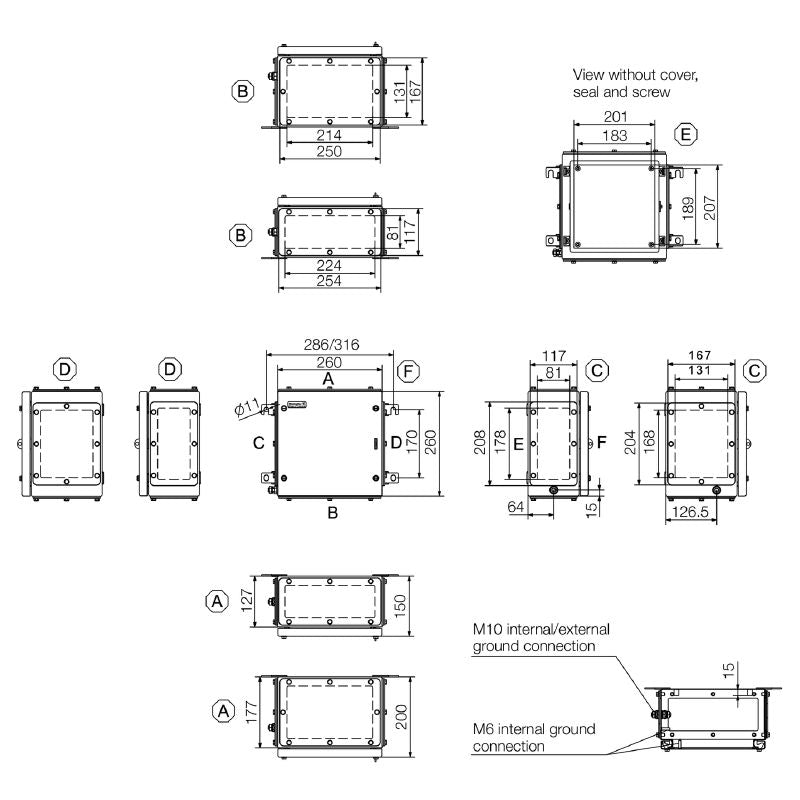

 Access opening dimensions 201 mm width x 207 mm height
