1194610000 - Stainless Steel Terminal Box 260mm x 260mm x 150mm

1194610000 - Stainless Steel Terminal Box 260mm x 260mm x 150mm

SKU: 1194610000   Download PDF

Select a Variant:
  • 1194610000 - Stainless Steel Terminal Box 260mm x 260mm x 150mm
Qty:
Now $893.70   Web pricing policy
BEFORE   $0.00 Now $893.70 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the Klippon TB MH terminal box, crafted from robust stainless steel for lasting performance This spacious enclosure measures 260 mm in height, 260 mm in width, and 150 mm in depth, complete with gland plates at the bottom for easy connections Made from electropolished stainless steel 14404 (316L), it meets stringent safety and environmental regulations Weighing in at 4,840 g, it operates seamlessly in temperatures ranging from -60 °C to 135 °C, making it an excellent choice for various applications.

Features and Benefits:

    •Designed for explosive risk zones.

    •Suitable for process, oil, gas, and chemical industries.

    •IP66 and IP67 protection ratings.

    •Electropolished finish for improved durability.

    •Can accommodate various cable gland types.

    •Used in hazardous environments and explosive atmosphere applications.

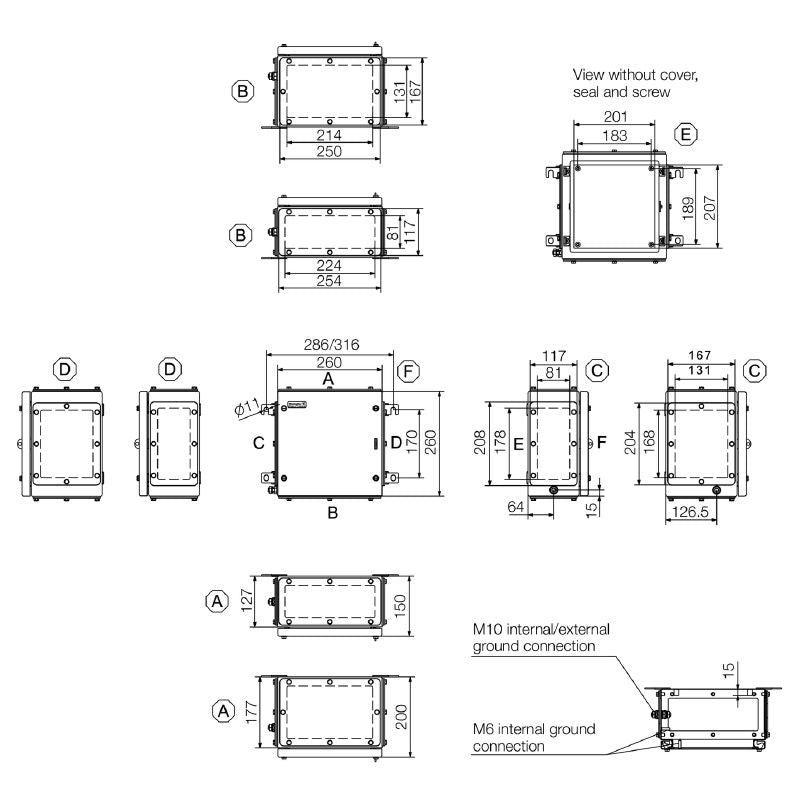

Specifications:

 Material Stainless steel 1.4404 (316L)
 Dimensions 260 mm height, 260 mm width, 150 mm depth
 Operating temperature -60 °C to 135 °C
 Protection class IP66, IP67
 Net weight 4,840 g
 Gland plates Bottom
 Access opening dimensions 207 mm height, 201 mm width
 Flange plate Yes
 Lid attachment 4 hinges and M6 hex-head slotted screws SW10
 Max. payload 27 kg
 Torque for lid screws 2.5 Nm
