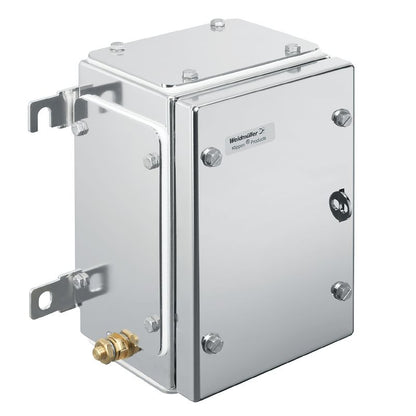

1194570003 - Stainless Steel Terminal Box, 229mm x 152mm x 133mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Klippon TB MH, a versatile stainless steel enclosure featuring an innovative multi-hinge design With dimensions of 229 mm in height, 152 mm in width, and 133 mm in depth, this empty enclosure is perfect for various applications It includes gland plates at both the top and bottom for added functionality Constructed from high-quality, untreated stainless steel 14301 (304), it boasts a sleek silver finish.

Additionally, it comes with multiple certifications, including RoHS compliance, ensuring quality and safety for your projects.

Features and Benefits:

•Constructed from untreated stainless steel 1.4301 (304).

•Includes gland plates at the top and bottom.

•Suitable for explosive risk zones and different industries such as oil, gas, and chemical.

•IP66 and IP67 rated for protection.

•Access opening dimensions of 176 mm (height) and 93 mm (width).

•Can endure operating temperatures ranging from -60 °C to 135 °C.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

Specifications:
