1194560002 - Stainless Steel Klippon TB MH Enclosure, 229mm x 152mm x 133mm

SKU: SKU: 1194560002 Download PDF

Select a Variant:

1194560002 - Stainless Steel Klippon TB MH Enclosure, 229mm x 152mm x 133mm

SET THE QTY:

Now $816.33 Web pricing policy

~~BEFORE $0.00~~ Now $816.33 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

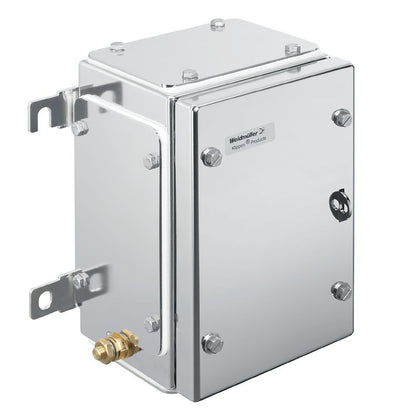

Discover the versatile Klippon TB MH enclosure, expertly crafted from high-grade stainless steel Measuring 229 mm in height, 152 mm in width, and 133 mm in depth, this empty enclosure is suited for a variety of applications It includes bottom gland plates and features a sleek silver finish made from untreated stainless steel 14404 (316L), ensuring both durability and an attractive appearance Perfect for your enclosure needs with a focus on functionality and resilience.

Features and Benefits:

•Environmental Product Compliance Status: Compliant with exemption.

•Impact resistance is rated at 7 J for the ATEX version and 10 J for the standard version.

•Four welded-on mounting feet with 11 mm holes for secure installation.

•Access opening dimensions: height 176 mm, width 93 mm.

•Available for use in explosive risk zones across multiple industries.

•Explosive risk zone.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore.

•Onshore.

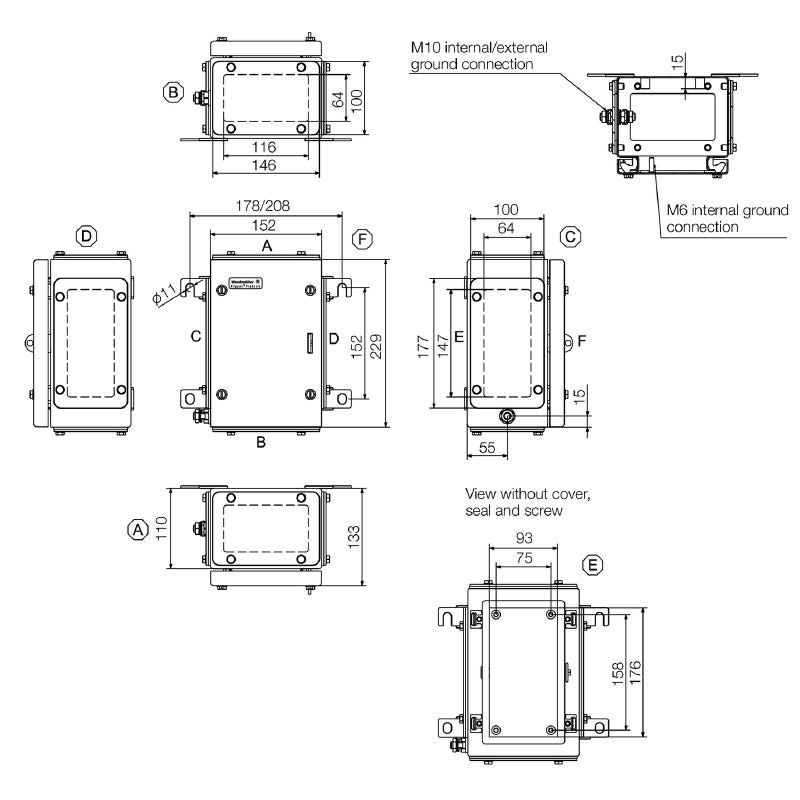

Specifications:

Depth	133 mm
Height	229 mm
Width	152 mm
Operating temperature, min.	-60 °C
Operating temperature, max.	135 °C
Protection degree	IP66
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
Max. payload	14 kg
Lid attachment	4 hinges and M6 hex-head slotted screws SW10
Number of lid screws	4
Flange plate	Yes
Seal material	Silicone
