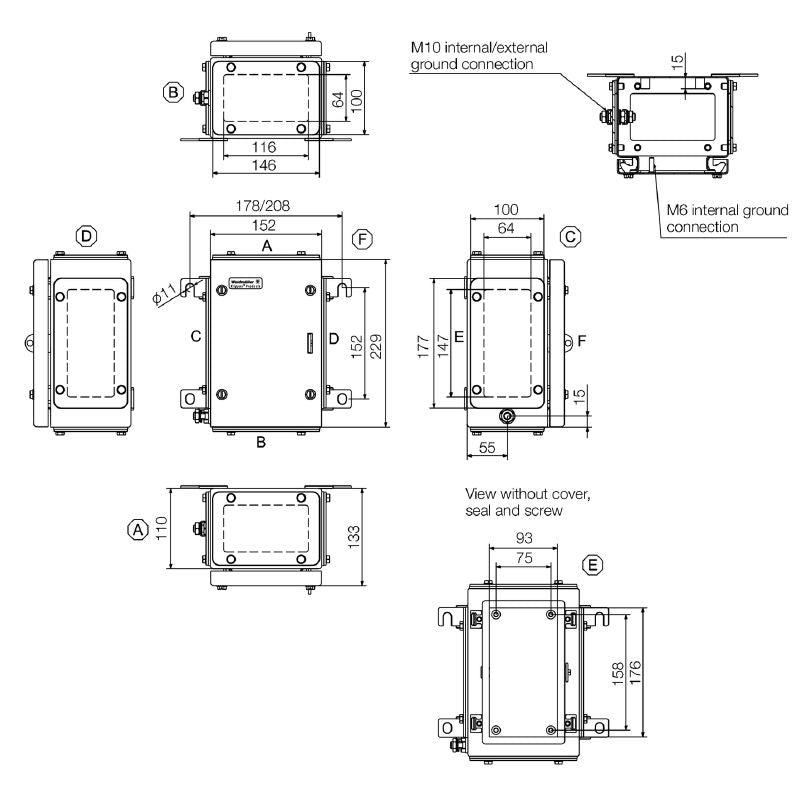

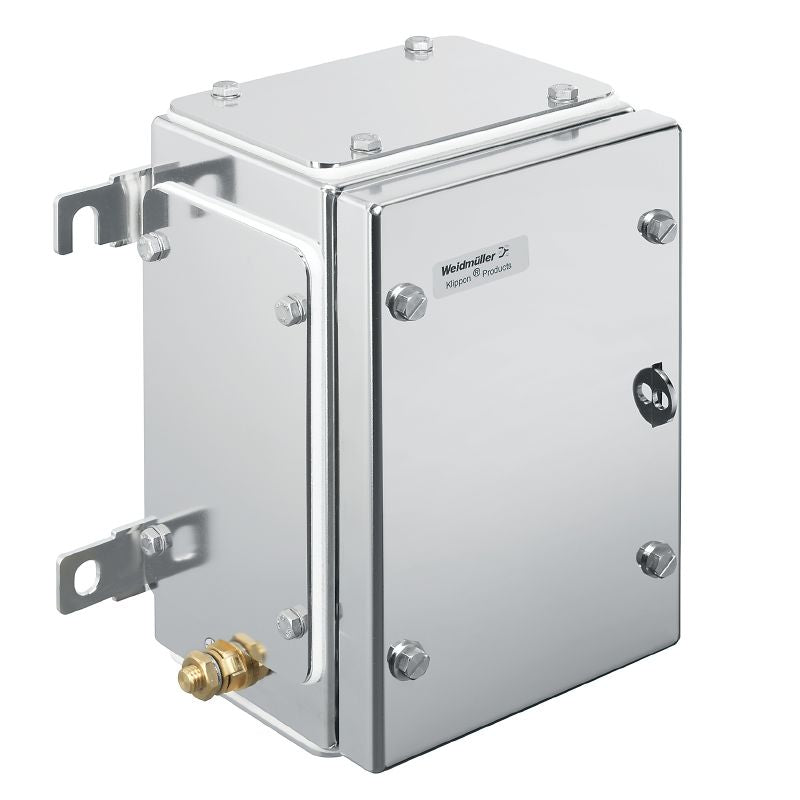

1194560000 - Stainless Steel Klippon Terminal Box 229mm High, 152mm Wide

SKU: SKU: 1194560000 Download PDF

Select a Variant:

1194560000 - Stainless Steel Klippon Terminal Box 229mm High, 152mm Wide

SET THE QTY:

Now $692.91 Web pricing policy

~~BEFORE $0.00~~ Now $692.91 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the Klippon TB MH Terminal Box, a robust empty enclosure crafted from premium stainless steel With dimensions of 229 mm in height, 152 mm in width, and 133 mm in depth, this terminal box is designed for durability It features stainless steel 14404 (316L), enhanced with an electropolished silver surface for a refined look The box is fitted with bottom gland plates and complies with various environmental standards, making it a reliable choice for your technical needs.

Features and Benefits:

•Stainless steel construction for durability.

•Electropolished surface for corrosion resistance.

•Designed for explosion-proof environments.

•Various dimensions for versatile applications.

•Explosive risk zones.

•Process industry.

•Oil and gas industry.

•Chemical industry.

•Offshore applications.

•Onshore applications.

Specifications:

Height	229 mm
Width	152 mm
Depth	133 mm
Net weight	3,060 g
Operating temperature (max)	135 °C
Operating temperature (min)	-60 °C
Protection class	IP66/IP67
Material thickness of cover	1.5 mm
Material thickness of enclosure	1.5 mm
Material thickness of flange	3 mm
Max. payload	14 kg
Access opening height	176 mm
Access opening width	93 mm
Certificate no. (cULus)	E243298
Standards	DIN EN 62208 - Empty enclosure standard; EN 60079-0; 60079-7; 60079-31; IEC 60079-0; 60079-7; 60079-31
