8000085268 - 7.50mm Female PCB Connector, 5 Poles, RoHS Compliant (Pack of 42)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

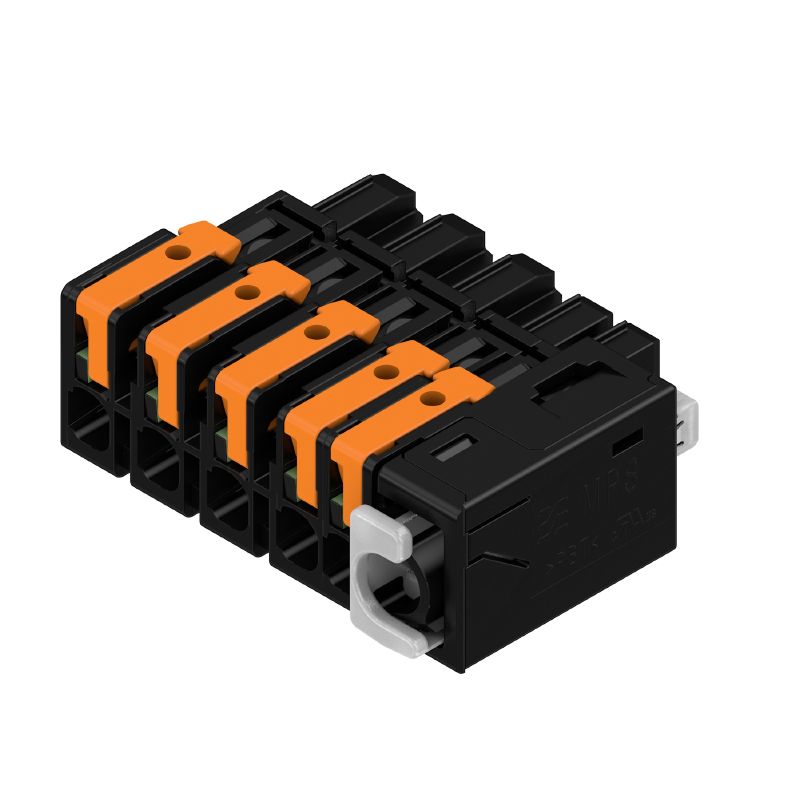

Introducing the MPS 7S/03-5/02 D11 S TN B B PCB plug-in connector, a reliable female connector designed for seamless integration With a pitch measurement of 750 mm, this connector accommodates five poles, making it versatile for various applications Its part number is 8000085268, and it adheres to RoHS compliance standards, ensuring it is environmentally friendly This connector boasts an IEC rating of 1000 V and is capable of handling up to 34.

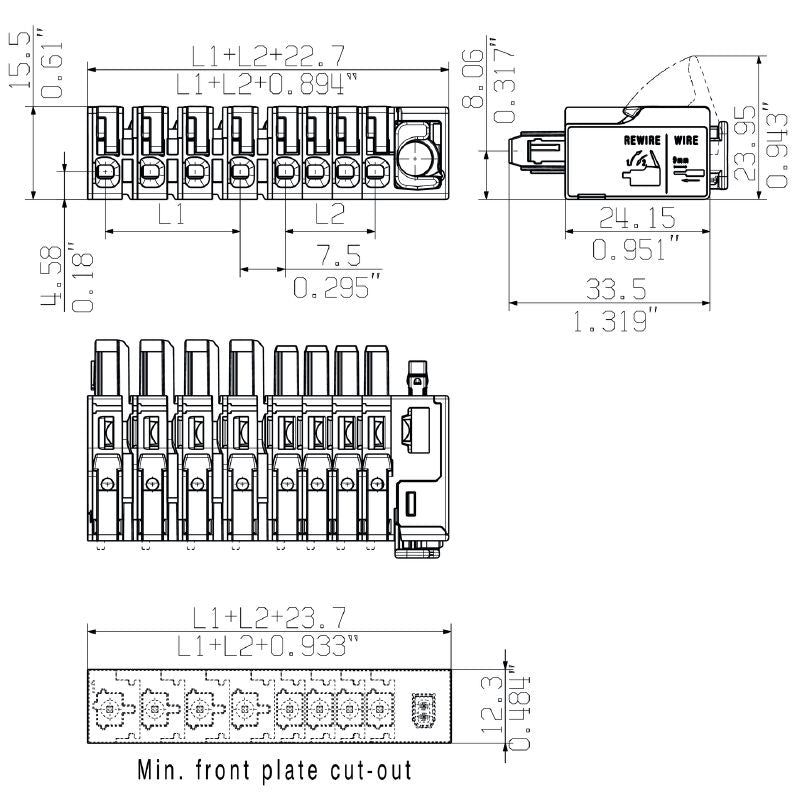

6 A with wire cross-sections ranging from 05 to 4 mm² Additionally, its UL equivalent rating accommodates AWG sizes from 20 to 12, supporting a maximum current of 185 A Measuring 3495 mm in depth and 155 mm in height, it is lightweight at just 30072 g Designed to function optimally in temperature ranges from -50 °C to 125 °C, this connector meets strict environmental standards, making it a dependable choice for both industrial and commercial applications.

Features and Benefits:

•Compliant with RoHS without exemption.

•Supports a wide clamping range from 0.34 mm² to 4 mm².

•Safe for finger touch according to DIN VDE standards.

•Available with a high degree of insulation protection with a CTI of ≥ 600.

Specifications:
