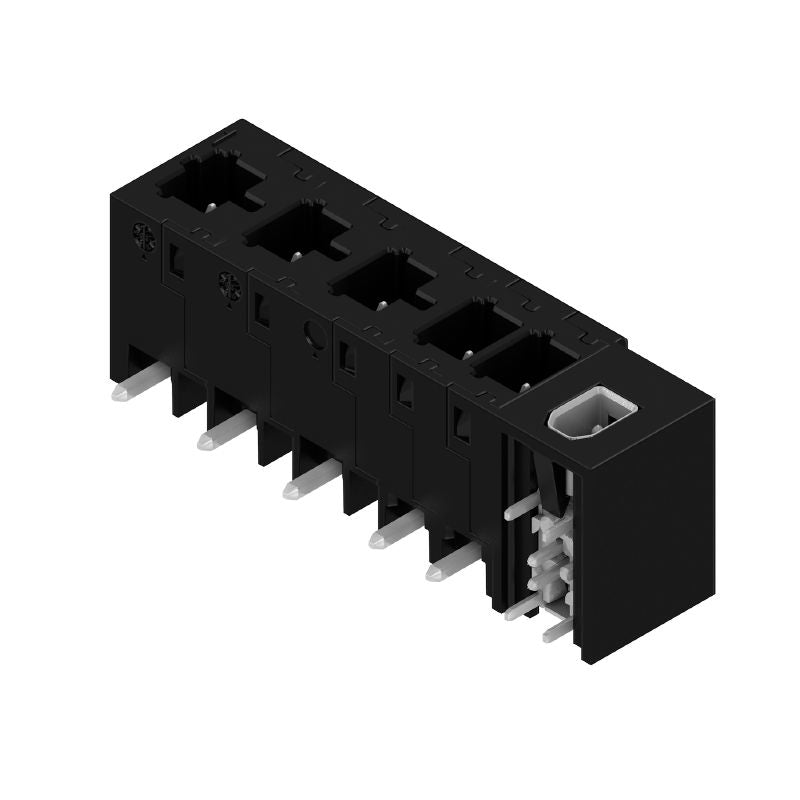

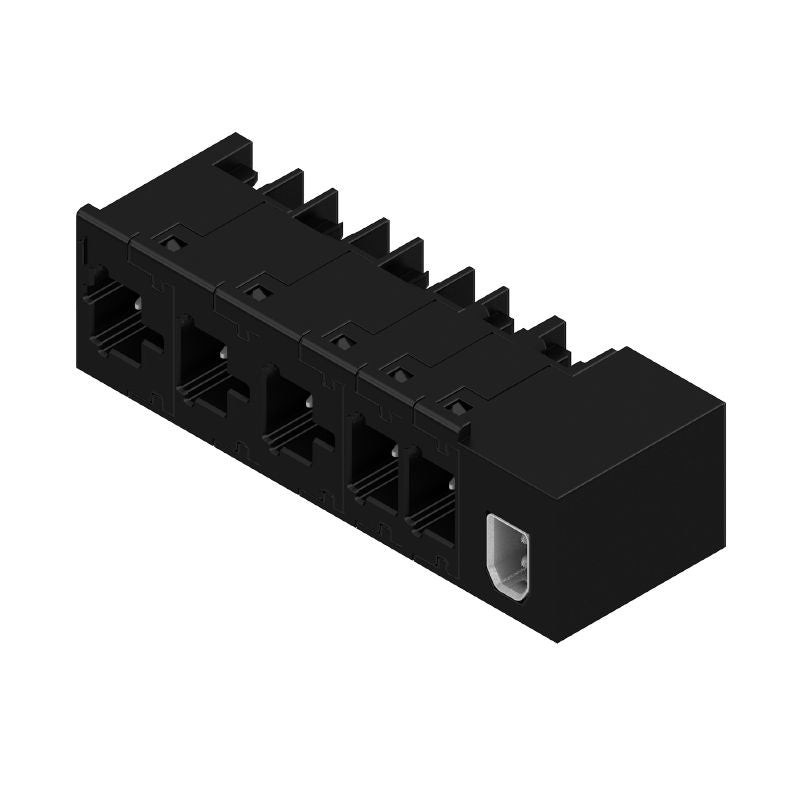

8000085192 - 7.50 mm 5-Pole PCB Connector, 90° Angle, THT/THR (Pack of 13)
8000085192 - 7.50 mm 5-Pole PCB Connector, 90° Angle, THT/THR (Pack of 13)
SKU: SKU: 8000085192 Download PDF
- 8000085192 - 7.50 mm 5-Pole PCB Connector, 90° Angle, THT/THR (Pack of 13)
- 8000085192 - 7.50 mm 5-Pole PCB Connector, 90° Angle, THT/THR (Pack of 13)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Elevate your connectivity with this male header PCB plug-in connector, expertly engineered for THT/THR solder applications With a 750 mm pitch and 5 poles arranged at a 90° angle, it is designed for efficient performance This connector supports various voltage ratings—up to 630 V per IEC standards with a maximum current of 304 A, and 300 V according to UL specifications, accommodating a maximum of 18.
5 A Offered in a convenient tube packaging, it is RoHS compliant, ensuring environmentally-friendly quality without any exemptions.
Features and Benefits:
•Compliant with RoHS.
•Package type: Tube.
•Designed for board connections.
•Plugging cycles of at least 25.
•Operating temperature range from -40 °C to 85 °C.

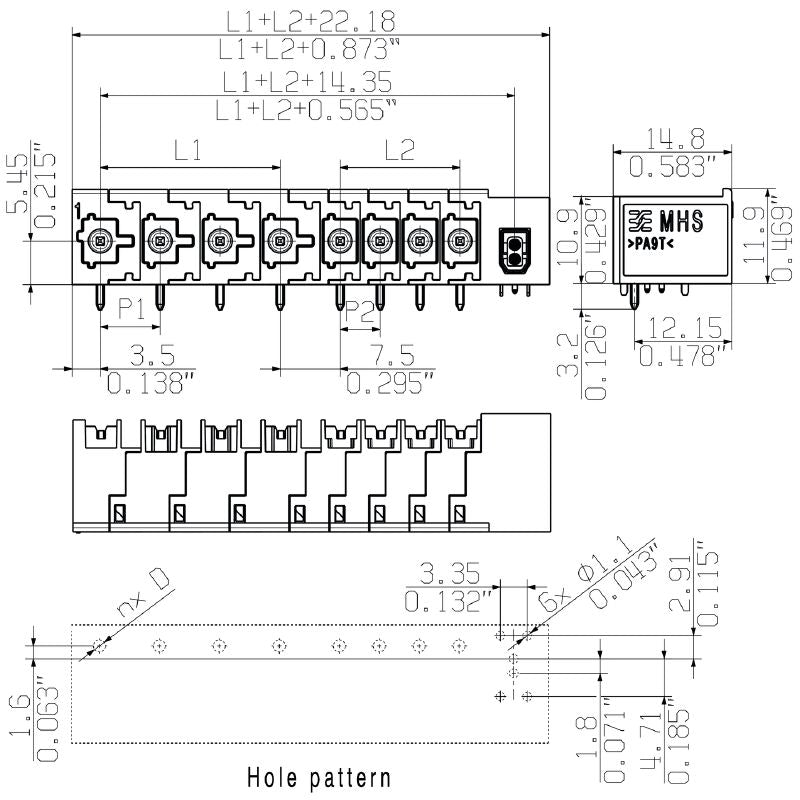

Specifications:
| Depth | 14.8 mm |
| Height | 15.1 mm |
| Ambient temperature | -50 °C to 125 °C |
| Number of poles | 5 |
| Insulating material | PA 9T |
| Colour | black |
| Rated current | 30.4 A |
| Rated voltage (IEC) | 630 V |
| Rated voltage (UL) | 300 V |
