8000078336 - 7.50mm Pitch 5-Pole Male PCB Connector for THT/THR (Pack of 16)
8000078336 - 7.50mm Pitch 5-Pole Male PCB Connector for THT/THR (Pack of 16)
SKU: SKU: 8000078336 Download PDF
- 8000078336 - 7.50mm Pitch 5-Pole Male PCB Connector for THT/THR (Pack of 16)
- 8000078336 - 7.50mm Pitch 5-Pole Male PCB Connector for THT/THR (Pack of 16)
Couldn't load pickup availability
Description:
Introducing the male header PCB plug-in connector, specifically crafted for THT/THR soldering applications This device features a compact pitch of 750 mm and houses 5 poles oriented at a 90° angle within a tubular design It adheres to RoHS standards and comes with UL certification (certificate number E60693) With a maximum voltage rating of 630 V, this connector can handle a current capacity of 304 A according to IEC specifications, making it a reliable choice for your electrical connections.
Features and Benefits:
•8 solder pins across 5 poles for secure connections.
•90° outgoing elbow allows for space-saving configurations.
•Insulating material constructed from PA 9T.
•Color: black, compliant with RAL 9011.
•UL 94 flammability rating of V-0.
•Low volume resistance and high creepage and clearance distances.
•Used for board connection and electronic circuitry.

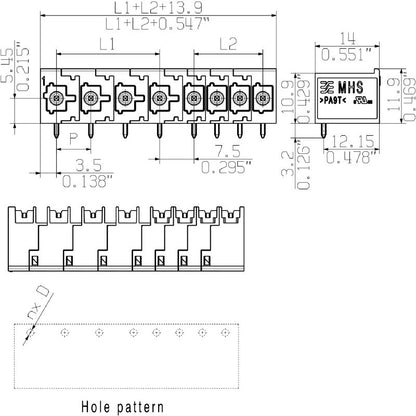

Specifications:
| Rated Voltage (IEC) | 630 V |
| Rated Current (IEC) | 30.4 A |
| Number of Poles | 5 |
| Pitch | 7.50 mm |
| Depth | 14 mm |
| Height | 15.1 mm |
| Solder Pin Length | 3.2 mm |
| Material | CuMg |
| Contact Surface | tinned |
| Max Temperature | 125 °C |
| Min Temperature | -50 °C |
| Storage Temperature Max | 55 °C |
| Storage Temperature Min | -25 °C |
| Moisture Level (MSL) | 1 |
| IPC Conformity | Class 2 |
