Description:

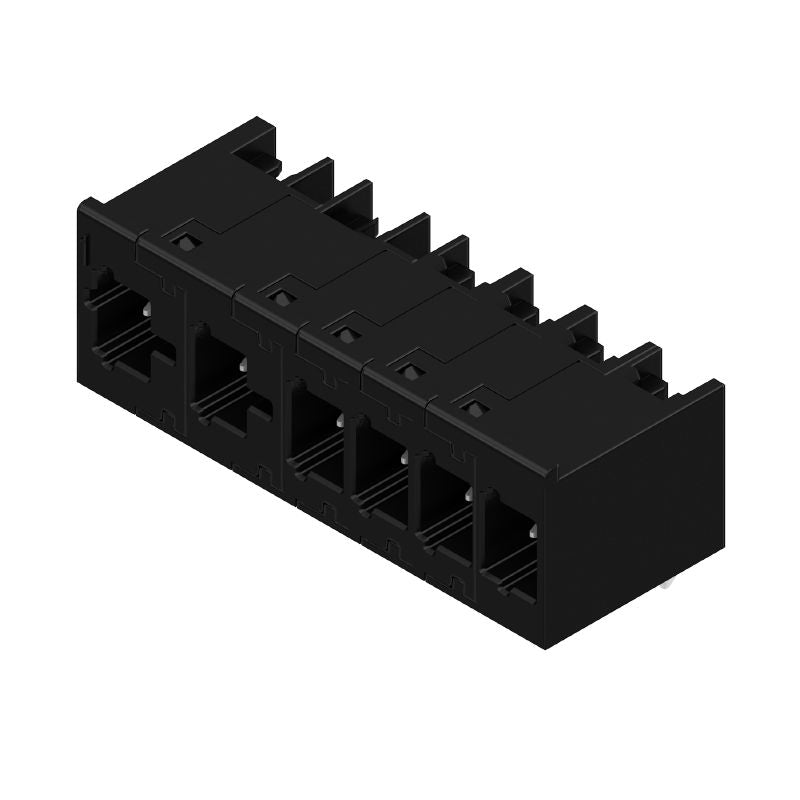

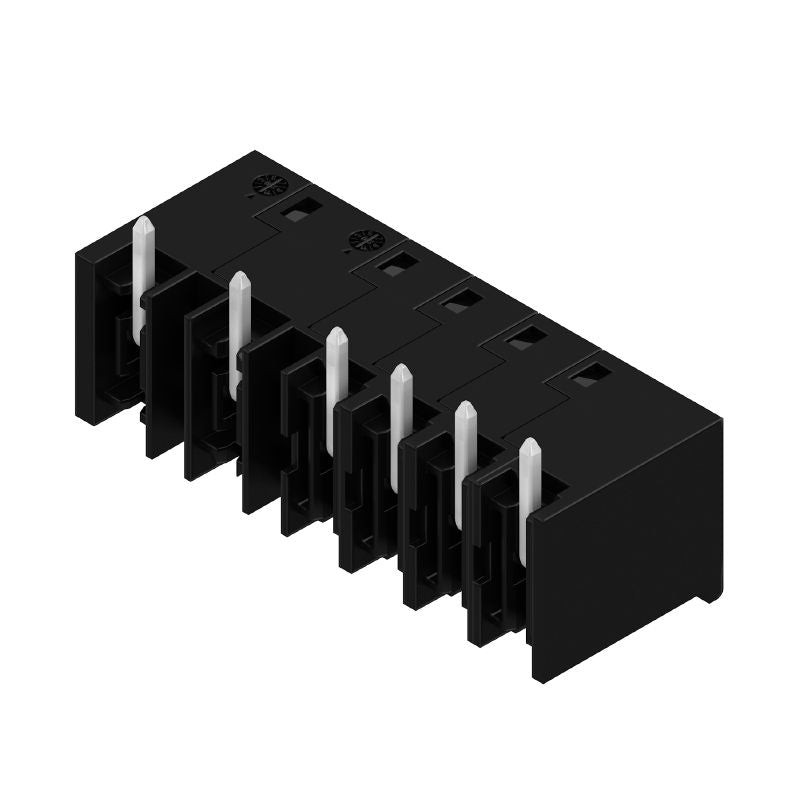

Discover the MHS 7S/02-5/04 H T3 B T, a high-performance male header PCB plug-in connector Engineered for THT/THR solder connections, it boasts a 750 mm pitch and features 6 poles arranged at a 90° angle This connector adheres to RoHS regulations and is rated for a maximum current of 304 A at 630 V per IEC standards, as well as 185 A at 300 V under UL criteria Packaged conveniently in tubes, this component measures 14 mm in depth and 15.
1 mm in height, with a total weight of just 5416 g Perfect for enhancing your electronic projects with reliable connectivity.
Features and Benefits:
•Compliant with RoHS without exemptions.
•UL recognized components with certificate no. E60693.
•Rated for high-temperature range from -50 °C to 125 °C.
•Has plug-in cycles of at least 25.
•Features a tinned contact surface for durability.
•Constructed from PA 9T insulating material.
Specifications:
| Pitch in mm (P) | 7.5 mm |
| Number of poles | 6 |
| Solder pin length | 3.2 mm |
| Ambient temperature | -50 °C…125 °C |
| Rated voltage for surge voltage class / pollution degree II/2 | 630 V |
| Rated current min. number of poles (Tu=20°C) | 30.4 A |
| Rated current max. number of poles (Tu=20°C) | 26.9 A |
| Insulating material | PA 9T |
| Net weight | 5.416 g |
