Description:

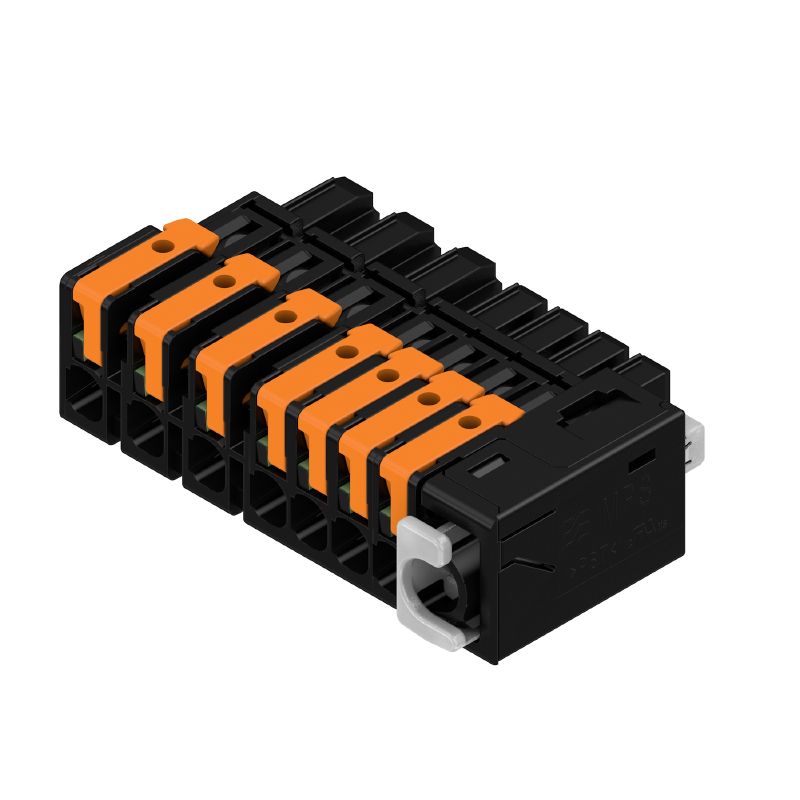

Discover the MPS 7S/03-5/04 D11 S TN B B female plug PCB connector, designed with a 750 mm pitch and featuring 7 poles This environmentally friendly connector adheres to RoHS standards, ensuring safety in your applications It boasts an IEC voltage rating of 1000 V and a current capacity of 346 A, accommodating wire sizes from 05 to 4 mm² With a UL rating of 185 A for wire gauges between AWG 20 and AWG 12, this product offers reliability for various connectivity needs.
Packaged conveniently in a box, it’s ready for immediate use.
Features and Benefits:
•Rated operating temperature range from -50 °C to 125 °C.

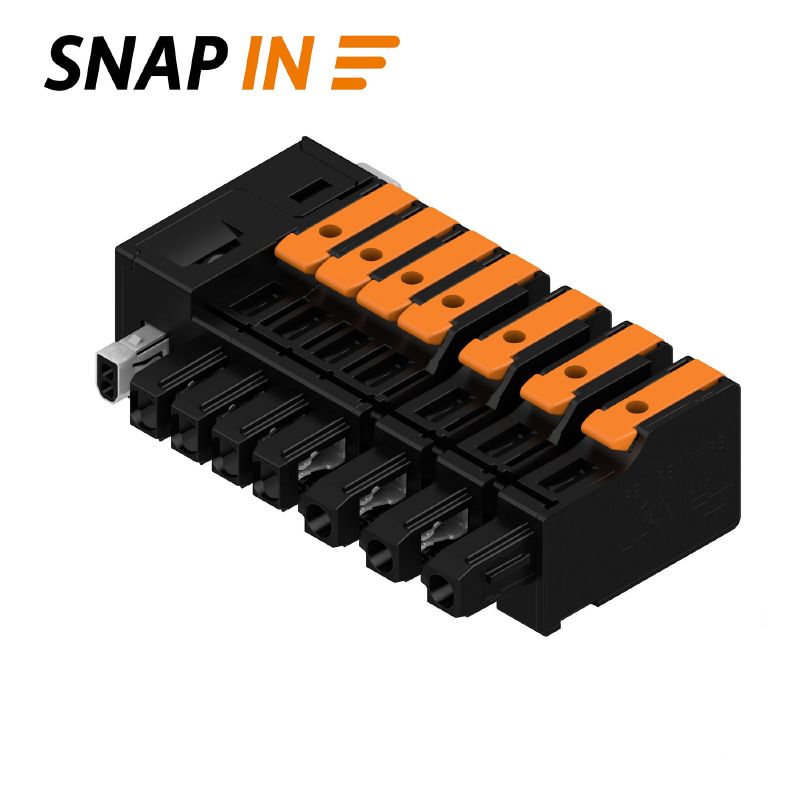

•Easy snap-in wire connection method.
•Insulating material made of PBT GF.
•Meets touch-safe protection according to DIN VDE regulations.
•Rated for a minimum of 25 plugging cycles.
•Safe from finger touch with IP 20 protection.
•Constructed from durable Cu-alloy contacts.

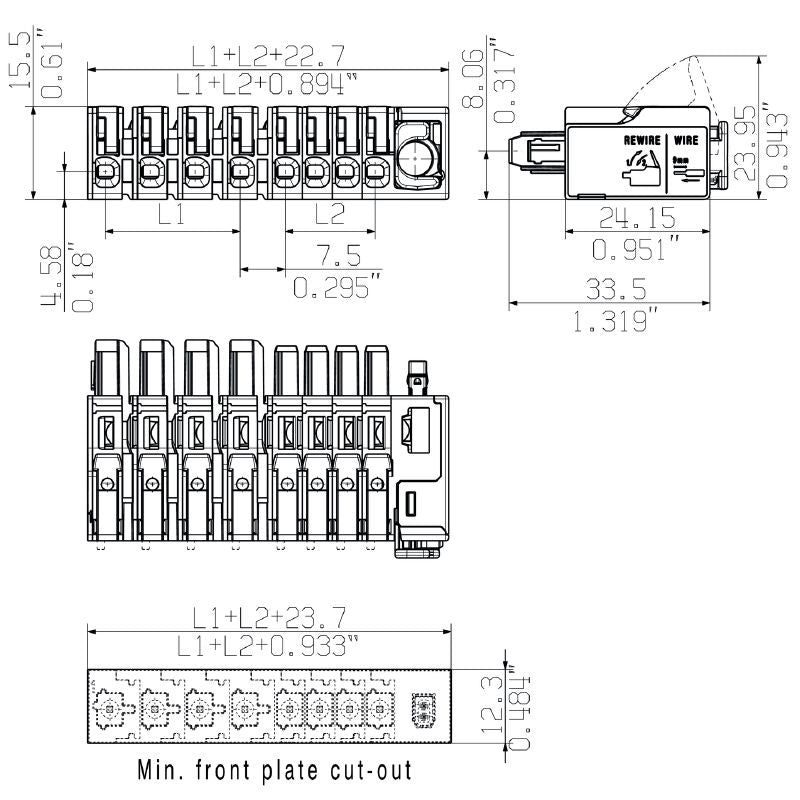

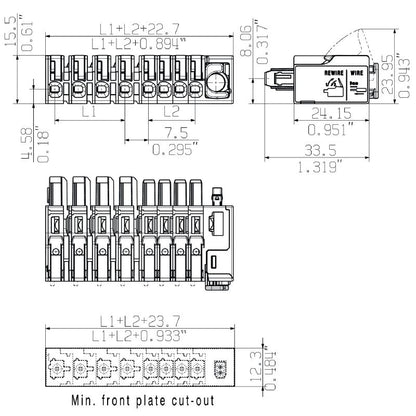

Specifications:
| Pitch in mm | 7.5 |
| Number of poles | 7 |
| Depth | 34.95 mm |
| Height | 15.5 mm |
| Stripping length | 9 mm |
| Ambient temperature range | -50 °C…125 °C |
| Storage temperature range | -25 °C to 55 °C |
| Rated voltage | 1000 V |
| Rated current | 34.6 A |
| Contact material | Cu-alloy |
| Insulating material group | I |
| UL flammability rating | V-0 |
