8000085261 - 7-Pole 7.50mm PCB Connector, 630V THT/THR Solder (Pack of 10)
8000085261 - 7-Pole 7.50mm PCB Connector, 630V THT/THR Solder (Pack of 10)
SKU: SKU: 8000085261 Download PDF
- 8000085261 - 7-Pole 7.50mm PCB Connector, 630V THT/THR Solder (Pack of 10)
- 8000085261 - 7-Pole 7.50mm PCB Connector, 630V THT/THR Solder (Pack of 10)
Couldn't load pickup availability
Description:

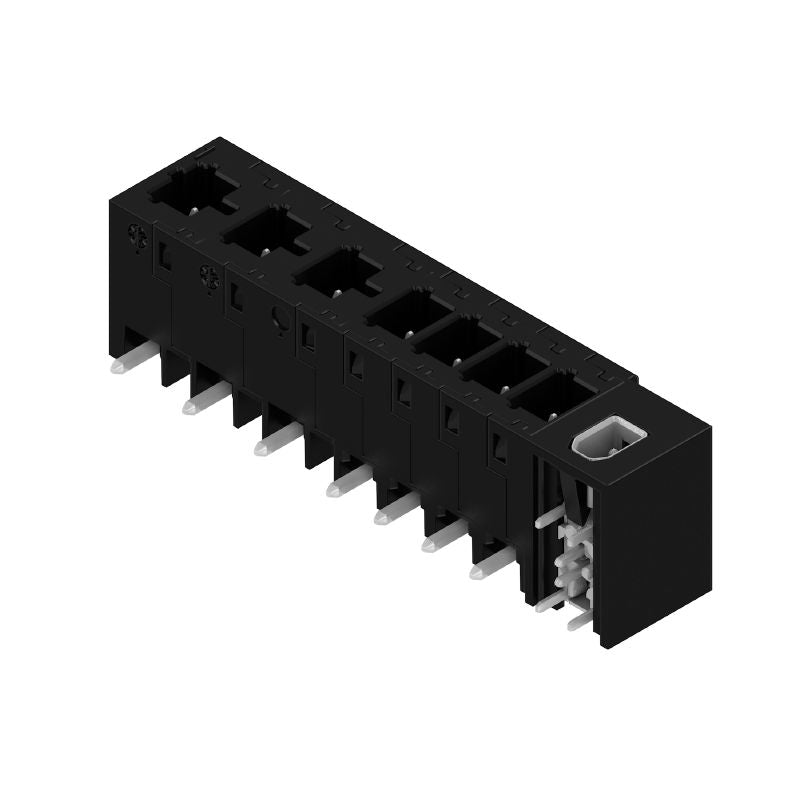

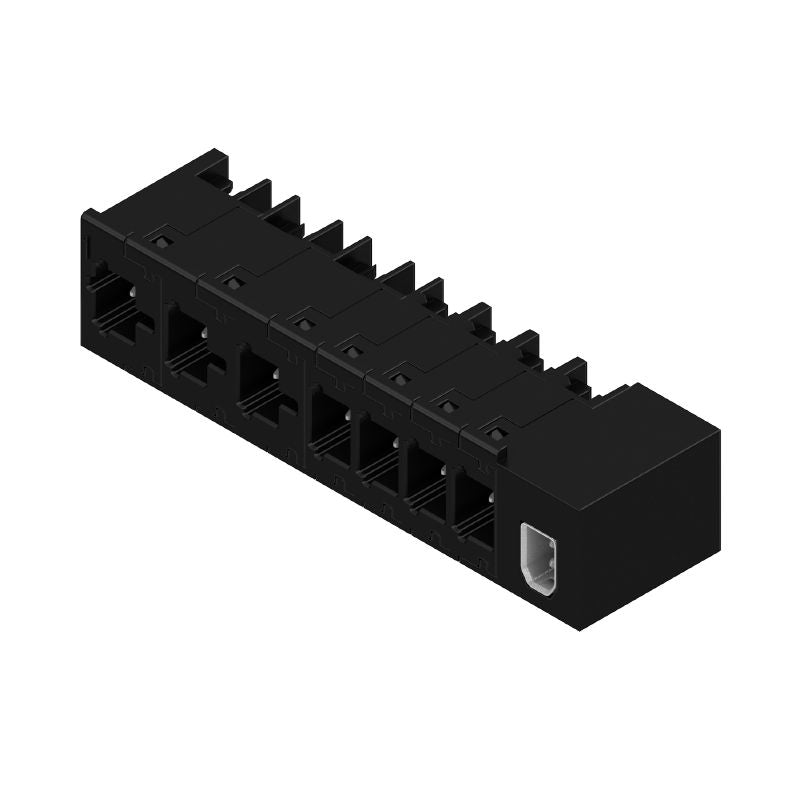

Introducing this durable male header PCB plug-in connector, expertly crafted for THT/THR solder connections With a pitch of 750 mm, this connector houses 7 poles arranged at a 90° angle, making it versatile for various applications that demand reliable electrical interfaces It meets RoHS requirements and can support IEC ratings of up to 630 V and 304 A, alongside UL ratings of 300 V and a maximum current of 18.
5 A This connector is built to deliver exceptional performance in any project requiring sturdy connections.
Features and Benefits:
•Compliant with RoHS standards.
•Tube packaging.
•Insulating material is PA 9T.
•Black color (RAL 9011).
•Designed for board connection with THT/THR solder connections.
•Designed for use in environments with temperatures ranging from -50 °C to 125 °C.

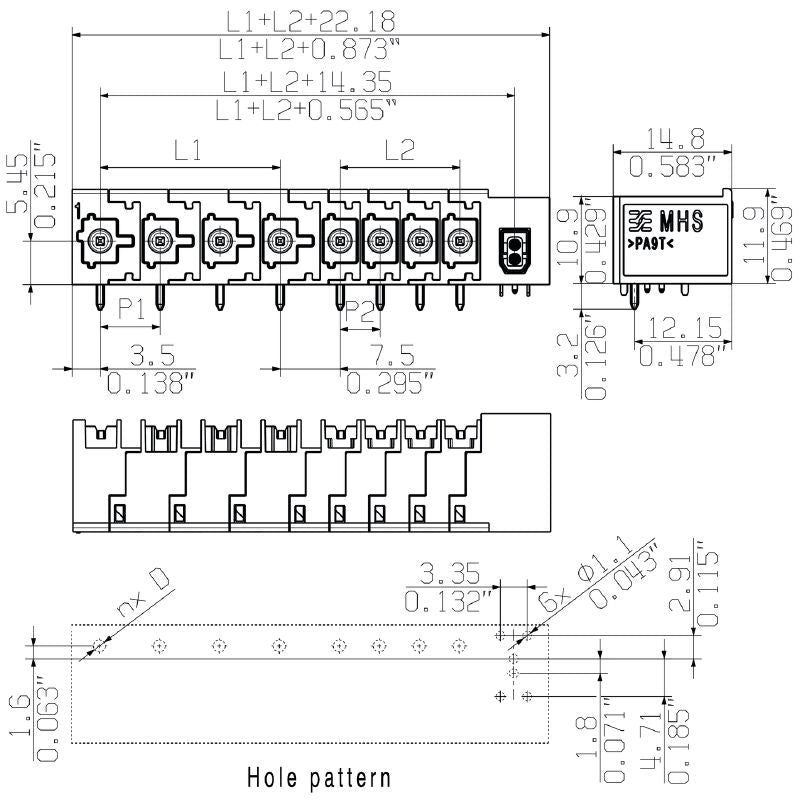

Specifications:
| Depth | 14.8 mm |
| Height | 15.1 mm |
| Operating temperature | -40 °C to 85 °C |
| Rated voltage | {'IEC': '630 V', 'UL': '300 V'} |
| Rated current | {'min. number of poles (Tu=20°C)': '30.4 A', 'max. number of poles (Tu=20°C)': '26.9 A', 'min. number of poles (Tu=40°C)': '27 A', 'max. number of poles (Tu=40°C)': '23.9 A'} |
| Number of poles | 7 |
| Plugging cycles | ≥ 25 |
| Solder pin length | 3.2 mm |
| Material | {'Contact base material': 'CuMg', 'Contact material': 'Cu-alloy', 'Contact surface': 'tinned'} |
