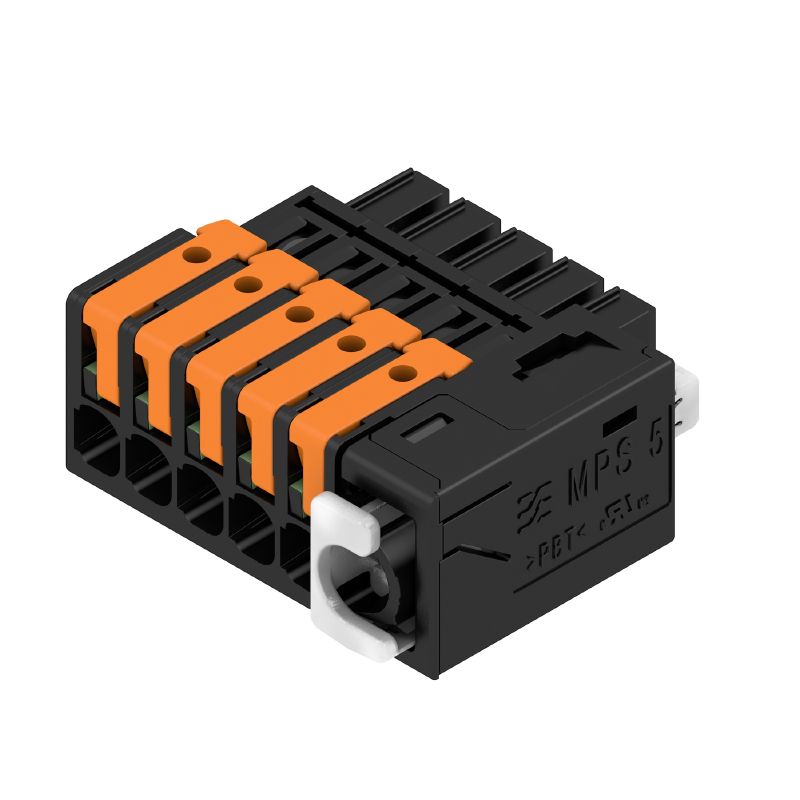

2741800000 - 5-Pole PCB Connector, 5mm Pitch, 400V Rated (Pack of 48)
2741800000 - 5-Pole PCB Connector, 5mm Pitch, 400V Rated (Pack of 48)
SKU: SKU: 2741800000 Download PDF
- 2741800000 - 5-Pole PCB Connector, 5mm Pitch, 400V Rated (Pack of 48)
- 2741800000 - 5-Pole PCB Connector, 5mm Pitch, 400V Rated (Pack of 48)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a reliable PCB plug-in connector that features a female connector with a 500 mm pitch and five poles arranged in a 180° configuration This component is fully compliant with IEC regulations, boasting a voltage capacity of 400 V and accommodating a maximum current of 268 A Additionally, it holds a UL certification for 300 V and 185 A Each box comprises 48 connectors, making it an excellent choice for bulk needs.

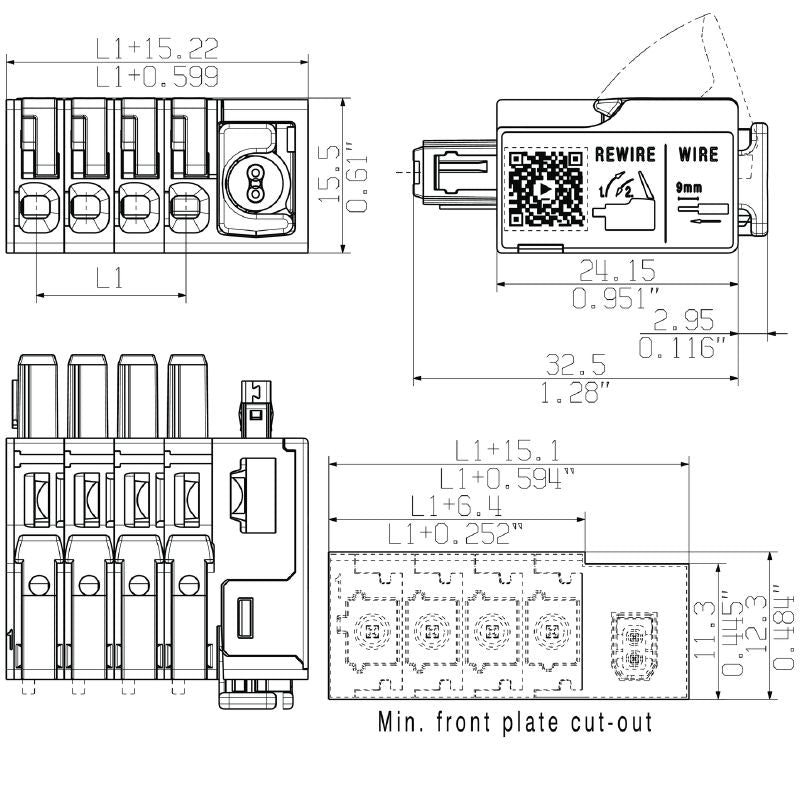

With dimensions of 36 mm in depth, 155 mm in height, and 352 mm in width, this connector is engineered for efficiency and compatibility in various applications.
Features and Benefits:
•Compliant with RoHS without exemption.
•Touch-safe protection according to DIN VDE standards.

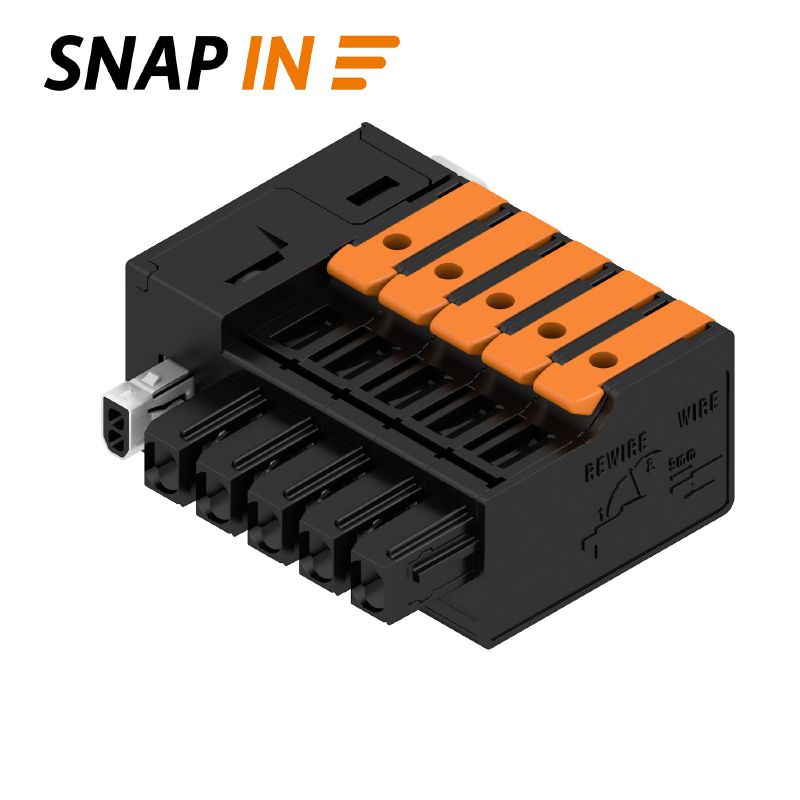

•Easy SNAP IN wire connection method with lever.
Specifications:
| Voltage Rating (IEC) | 400 V |
| Max Current (IEC) | 26.8 A |
| Wire Connection Method | SNAP IN with lever |
| Pitch | 5 mm |
| Number of Poles | 5 |
| Ambient Temperature | -50 °C to 125 °C |
| Protection Degree | IP20 |
| Contact Material | Cu-alloy |
| Contact Surface | tinned |
| Stripping Length | 9 mm |
| Operating Temperature | -40 °C to 85 °C |
| Width | 35.2 mm |
| Height | 15.5 mm |
| Depth | 36 mm |
| Net Weight | 30.886 g |
