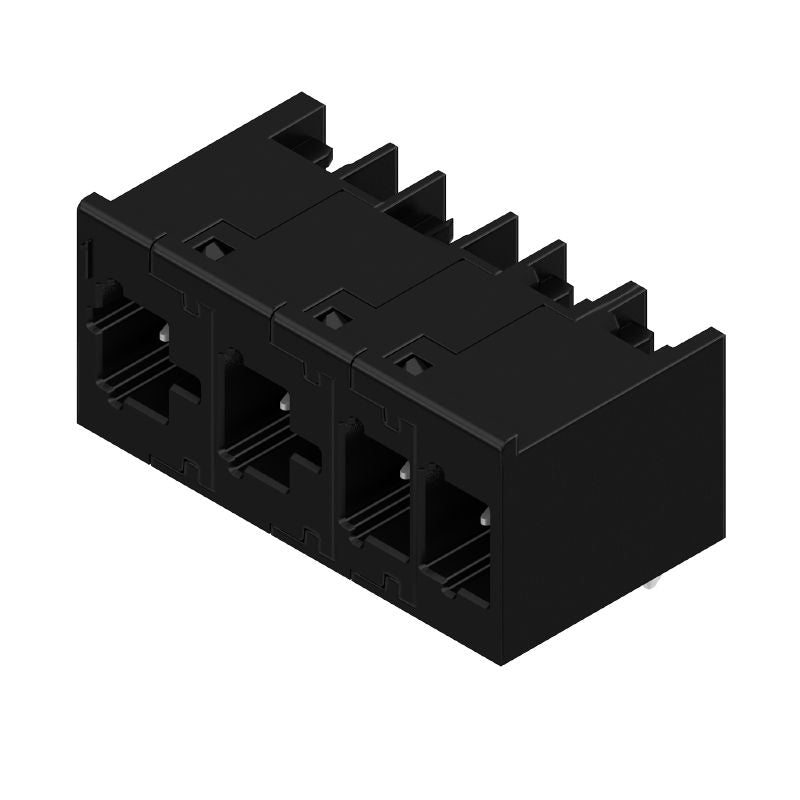

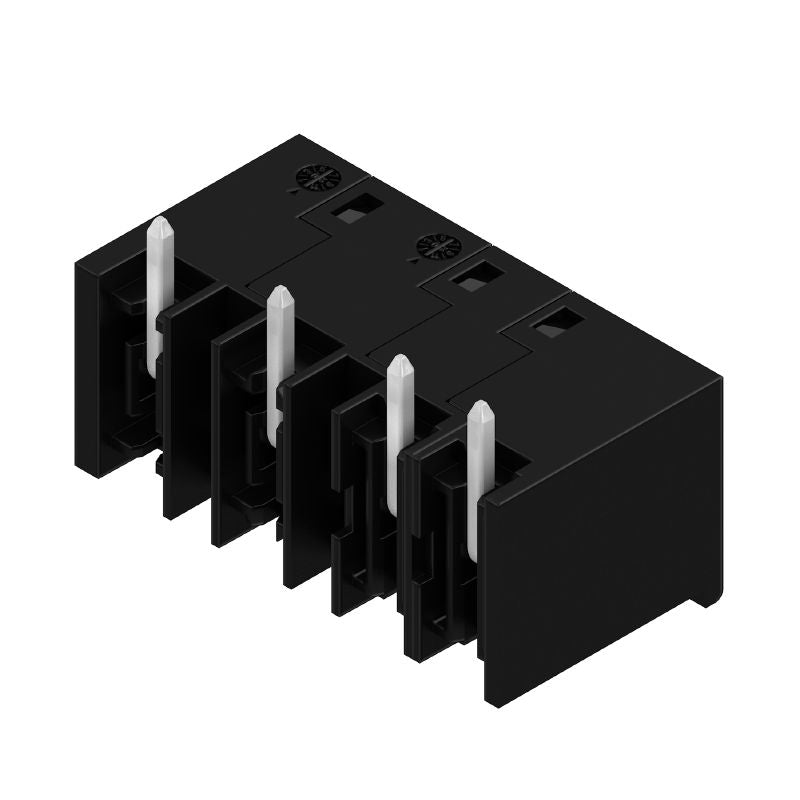

8000078335 - 4-Pole 7.5mm Connector with THT Solder, RoHS Compliant (Pack of 20)
8000078335 - 4-Pole 7.5mm Connector with THT Solder, RoHS Compliant (Pack of 20)
SKU: SKU: 8000078335 Download PDF
- 8000078335 - 4-Pole 7.5mm Connector with THT Solder, RoHS Compliant (Pack of 20)
- 8000078335 - 4-Pole 7.5mm Connector with THT Solder, RoHS Compliant (Pack of 20)
Couldn't load pickup availability
Description:
Introducing this male header PCB plug-in connector, featuring robust THT/THR solder connections for reliable performance With a 750 mm pitch and a configuration of 4 poles set at a precise 90° angle, this connector ensures versatile and efficient connectivity Adhering to RoHS standards, it supports an operating voltage of up to 630 V according to IEC and 300 V for UL, accommodating various current ratings seamlessly.
Features and Benefits:
•Compliant with RoHS and REACH.
•Manufactured from durable insulating material.
•Designed for board connection with solder connection.
•Supports a temperature range from -50 °C to 125 °C.
•Standardized according to IPC-A-610 Class 2.

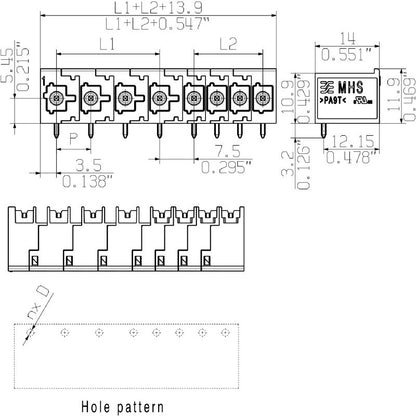

Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Number of poles | 4 |
| Rated voltage | 630 V |
| Rated current (IEC) | 30.4 A |
| Ambient temperature | -50 °C…125 °C |
| Insulating material | PA 9T |
| Colour | black |
| Operating temperature | -50 °C to 125 °C |
| Storage temperature | -25 °C to 55 °C |
| Contact base material | CuMg |
| Contact material | Cu-alloy |
| Plugging cycles | ≥ 25 |
