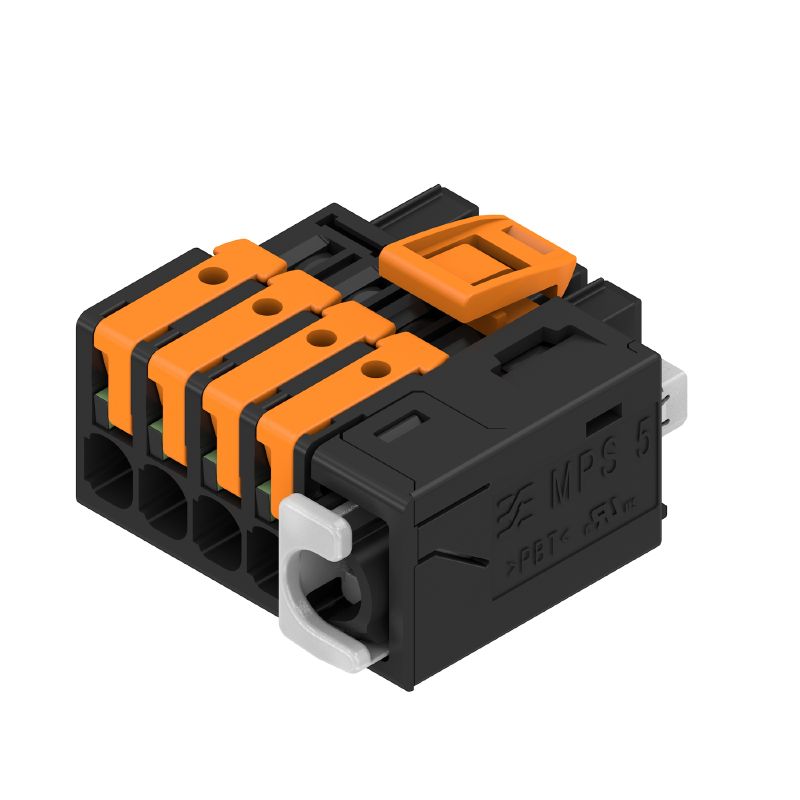

2741900000 - 5mm 4-Pole PCB Connector, RoHS Compliant, 60-Pack (Pack of 60)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile PCB plug-in connector tailored for female plugs with a pitch of 500 mm This connector offers four poles configured at a 180° angle, ensuring an efficient connection It adheres to RoHS standards and is packaged in boxes containing 60 connectors each With a power rating suitable for IEC applications, it supports voltages up to 400 V and currents of 268 A, accommodating wire sizes from 0.

5 to 4 mm² Additionally, it is UL-rated for 300 V and 185 A with wire gauges ranging from AWG 18 to AWG 14 Built to perform in extreme conditions, this connector operates flawlessly within a temperature spectrum of -50 °C to 125 °C.

Features and Benefits:

•Touch-safe protection according to DIN VDE 57 106.

•Compatible with a clamping range for conductors of 0.34 mm² to 4 mm².

•Stripping length tolerance of 8 mm to 10 mm.

•Material used for insulation is PBT GF and has a Comparative Tracking Index of ≥ 600.

Specifications:
