Description:

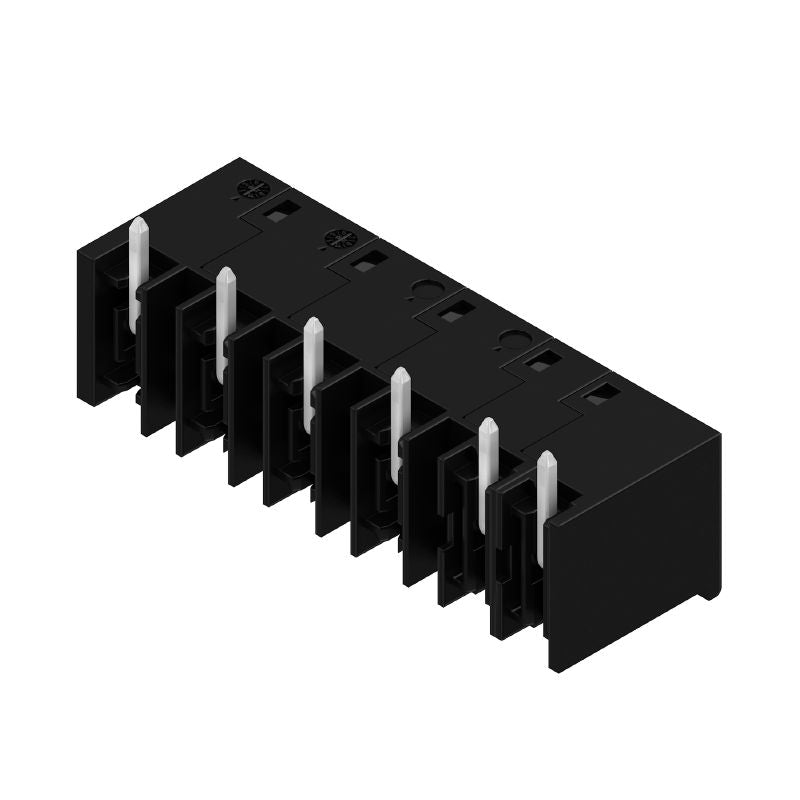

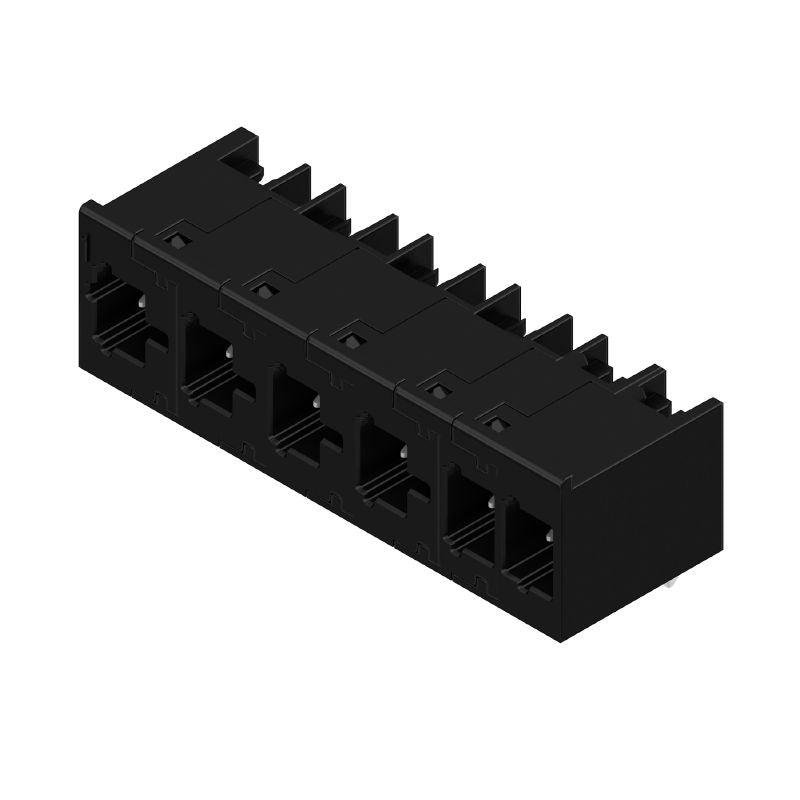

Discover the reliability of this male header plug-in connector, perfectly crafted for THT/THR soldering applications With a standard pitch of 750 mm, it features six poles configured at a 90-degree angle Each connector is conveniently supplied in a tube for easy handling It conforms to key electrical benchmarks, boasting IEC ratings of 630 V / 304 A and UL ratings of 300 V / 185 A Moreover, it adheres to RoHS regulations with no exemptions, and contains no SVHC materials exceeding 0.
1 wt% This connector is an excellent choice for your electronic projects.
Features and Benefits:
•Ambient temperature range from -50 °C to 125 °C.
•Compliance with IPC-A-610 standards for decorative properties.
•Developed, manufactured, and delivered according to international recognized standards.

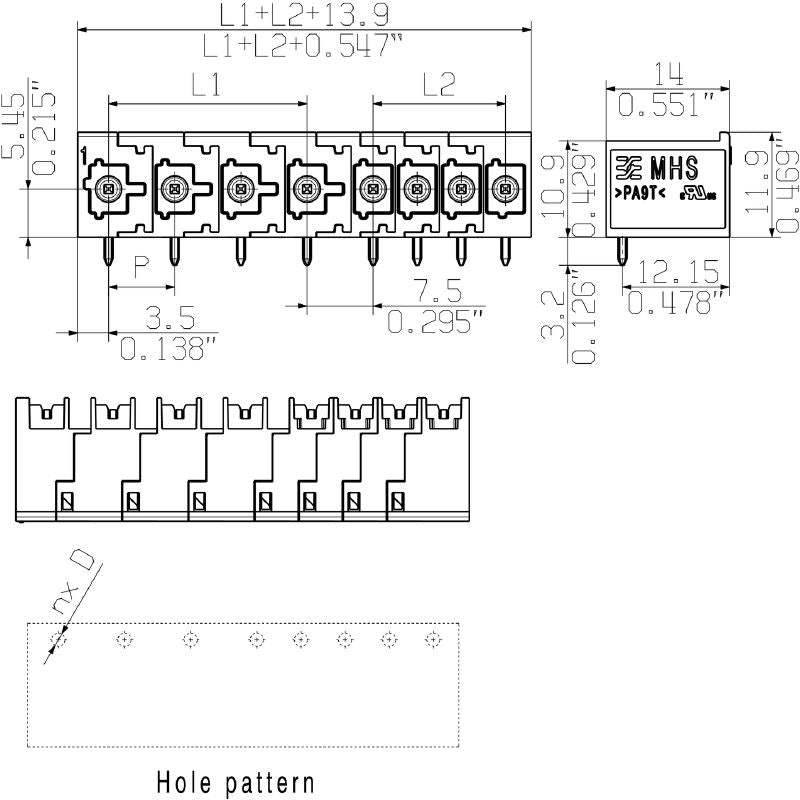

Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Number of poles | 6 |
| Solder pin length | 3.2 mm |
| Insulating material | PA 9T |
| Rated voltage for surge voltage class / pollution degree II/2 | 630 V |
| Rated current, min. number of poles (Tu=20°C) | 30.4 A |
| Rated current, max. number of poles (Tu=20°C) | 26.9 A |
| Plugging cycles | ≥ 25 |
| UL 94 flammability rating | V-0 |
| Moisture Level (MSL) | 1 |
| Contact material | Cu-alloy |
