Description:

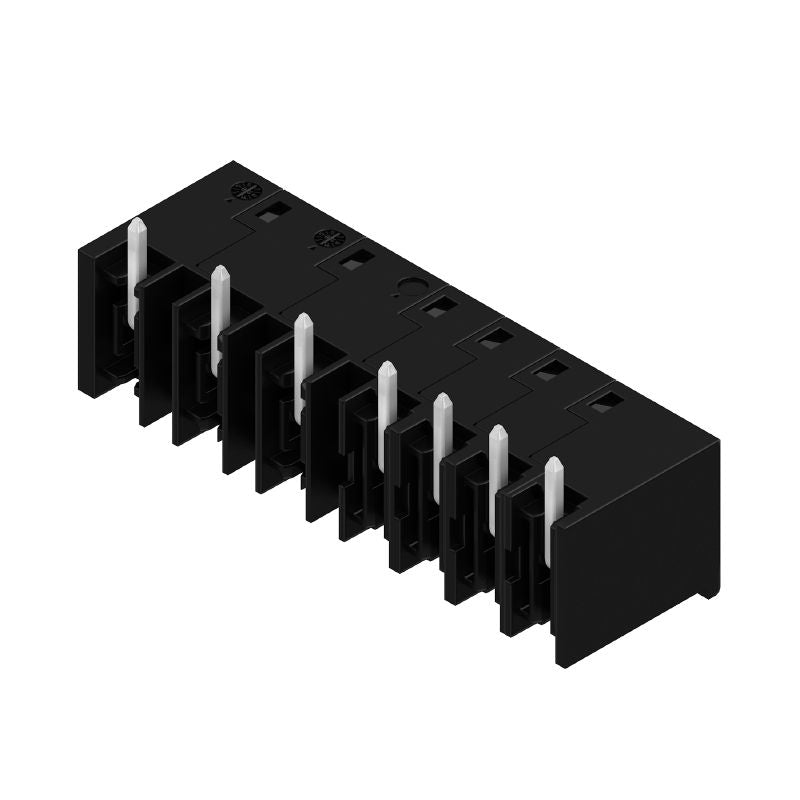

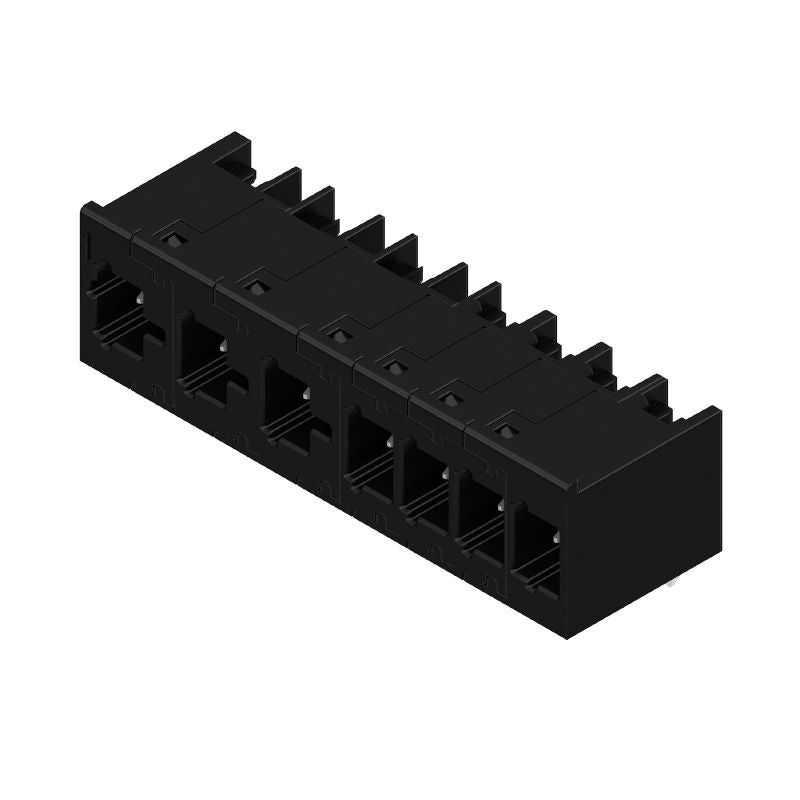

Introducing the MHS 7S/03-5/04 H T3 B T male header PCB plug-in connector, engineered for versatile mounting with both THT and THR soldering options This connector features a 750 mm pitch and accommodates 7 poles, all arranged at a convenient 90° exit angle Each order comes neatly packaged in tubes, containing 12 connectors for your assembly needs Ideal for reliable connections in various electronic applications.
Features and Benefits:
•RoHS compliant.
•Suitable for ambient temperatures ranging from -50 °C to 125 °C.
•Has a net weight of 6.444 g.
•Constructed from high-quality insulating material (PA 9T).
•Meets various IEC and UL standards.

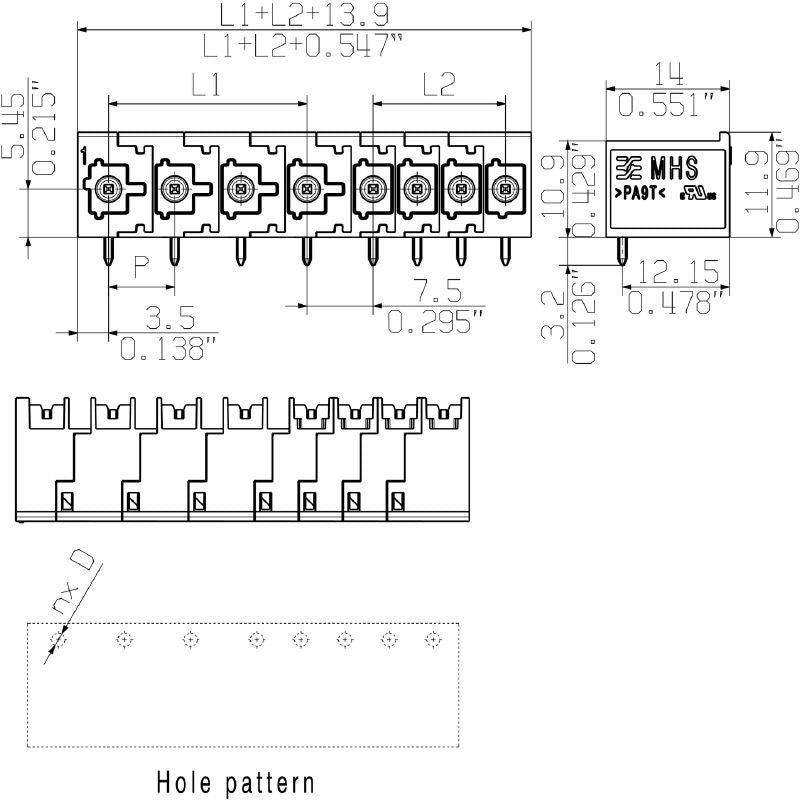

Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Pitch in mm | 7.5 mm |
| Number of poles | 7 |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 18.5 A |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 55 °C |
| Plugging cycles | ≥ 25 |
| Insulating material | PA 9T |
| Contact surface | tinned |
