2741920000 - 5mm 6-Pole PCB Connector Female, RoHS Compliant (Pack of 42)
2741920000 - 5mm 6-Pole PCB Connector Female, RoHS Compliant (Pack of 42)
SKU: SKU: 2741920000 Download PDF
- 2741920000 - 5mm 6-Pole PCB Connector Female, RoHS Compliant (Pack of 42)
- 2741920000 - 5mm 6-Pole PCB Connector Female, RoHS Compliant (Pack of 42)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

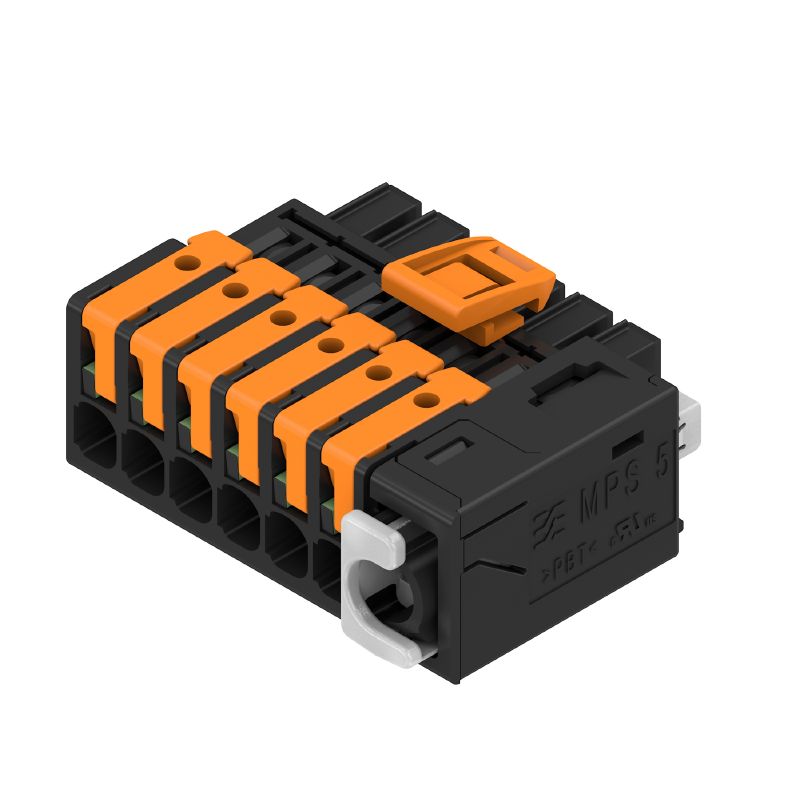

Introducing a reliable female plug PCB connector designed for versatility, featuring a 500 mm pitch and accommodating 6 poles with a 180° connection orientation Each box contains 42 connectors, making it an efficient choice for your projects This component meets RoHS standards for safety and environmental compliance, withstanding ambient temperatures between -50 °C to 125 °C It is rated for a voltage of 400 V and can carry a maximum current of 26.
8 A as per IEC specifications A perfect solution for your electronic connectivity needs.
Features and Benefits:

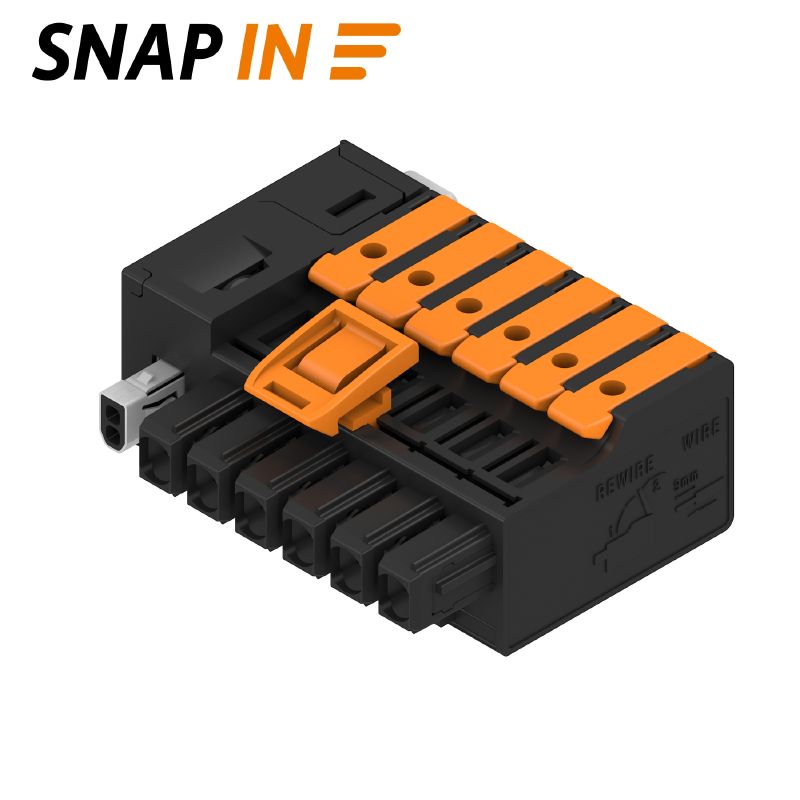

•Field connection using SNAP IN with lever technology.
•Touch-safe protection according to DIN VDE standards.
•Compliant with IEC 60664-1 and IEC 61984.
•UL rated for 300 V and 18.5 A.
Specifications:
| Dimensions | {'Depth': '36 mm', 'Height': '17.53 mm', 'Width': '40.2 mm'} |
| Operating temperature range | -40 °C to 85 °C |
| IP Rating | IP20 |
| Volume resistance | ≤5 mΩ |
| Pitch | 5 mm |
| Number of poles | 6 |
| Rated current | {'min': '26.8 A', 'max': '19.7 A'} |
| Rated voltage | {'IEC': '400 V', 'UL': '300 V'} |
| Insulating material | PBT GF |
| Material data | {'Contact material': 'Cu-alloy', 'Contact surface': 'tinned'} |
| Stripping length | 9 mm |
| Plugging cycles | 25 |
