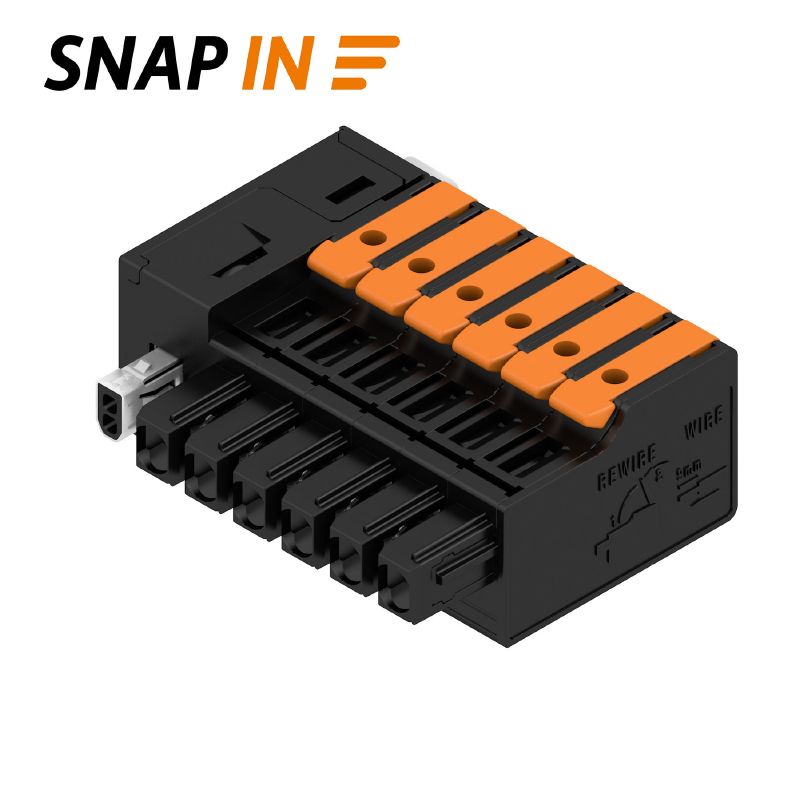

2741810000 - 5mm PCB Connector 6-Pole 180° Angle, 26.8A, RoHS Compliant (Pack of 42)
2741810000 - 5mm PCB Connector 6-Pole 180° Angle, 26.8A, RoHS Compliant (Pack of 42)
SKU: SKU: 2741810000 Download PDF
- 2741810000 - 5mm PCB Connector 6-Pole 180° Angle, 26.8A, RoHS Compliant (Pack of 42)
- 2741810000 - 5mm PCB Connector 6-Pole 180° Angle, 26.8A, RoHS Compliant (Pack of 42)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

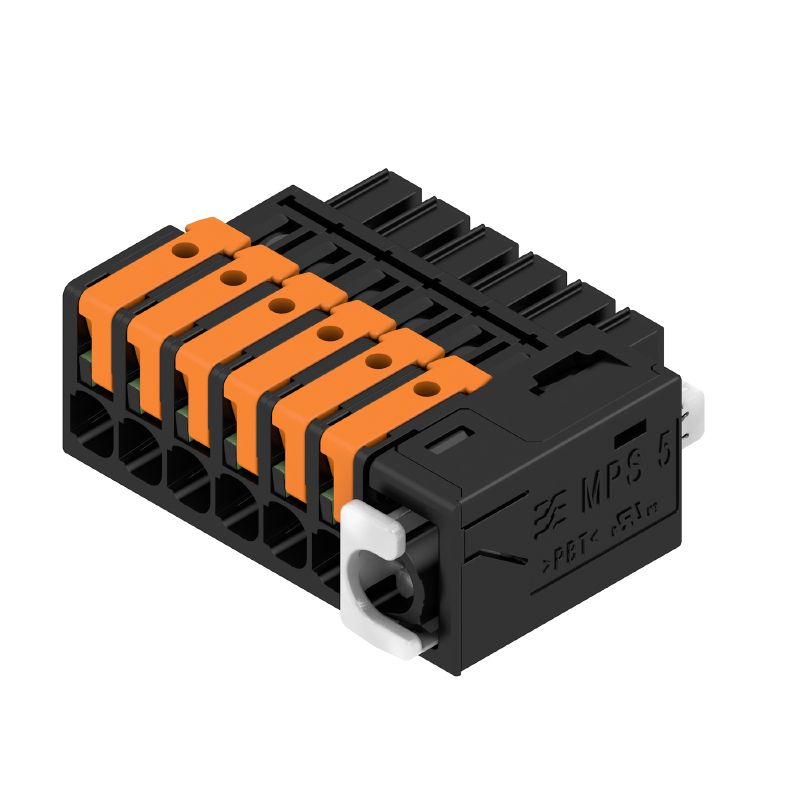

Introducing the MPS 5/06 D11 S TN B B, a robust PCB plug-in connector featuring a 5 mm pitch, specifically engineered for female plugs with 6 poles arranged at a 180° angle This connector can handle a maximum of 400 V and 268 A, accommodating conductor cross-sections from 05 to 4 mm² Weighing in at just 33031 g, it meets RoHS compliance and showcases snap-in lever wire connections for enhanced stability.
Designed with touch safety in mind, it adheres to recognized DIN standards and offers a high comparative tracking index (CTI) for reliable performance.
Features and Benefits:
•RoHS compliant.
•Snap-in lever connection method.
•Safe from finger touch.
•IP20 protection degree.
•High durability with 25 plugging cycles.
Specifications:

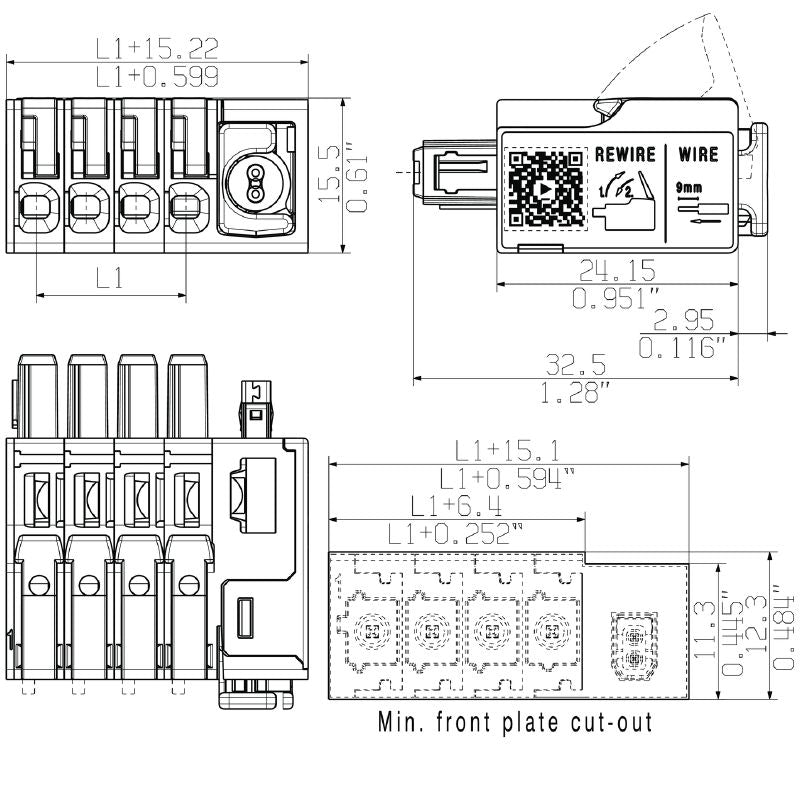

| Dimensions (Depth x Height x Width) | 36 mm x 15.5 mm x 40.2 mm |
| Ambient temperature | -50 °C to 125 °C |
| Number of poles | 6 |
| Conductor outlet direction | 180° |
| Pitch | 5 mm |
| Insulating material | PBT GF |
| Volume resistance | ≤ 5 mΩ |
| Protection degree | IP20 |
| Rated voltage (IEC) | 400 V |
| Rated current (IEC) | 26.8 A |
| Wire cross-section (AWG) | AWG 18 - 14 |
| Plugging force/pole, max | 8.5 N |
| Pulling force/pole, max | 8.5 N |
