2741790000 - 5mm PCB Female Connector, 4-Pole, 400V, RoHS Compliant (Pack of 60)
2741790000 - 5mm PCB Female Connector, 4-Pole, 400V, RoHS Compliant (Pack of 60)
SKU: SKU: 2741790000 Download PDF
- 2741790000 - 5mm PCB Female Connector, 4-Pole, 400V, RoHS Compliant (Pack of 60)
- 2741790000 - 5mm PCB Female Connector, 4-Pole, 400V, RoHS Compliant (Pack of 60)
Couldn't load pickup availability
Description:

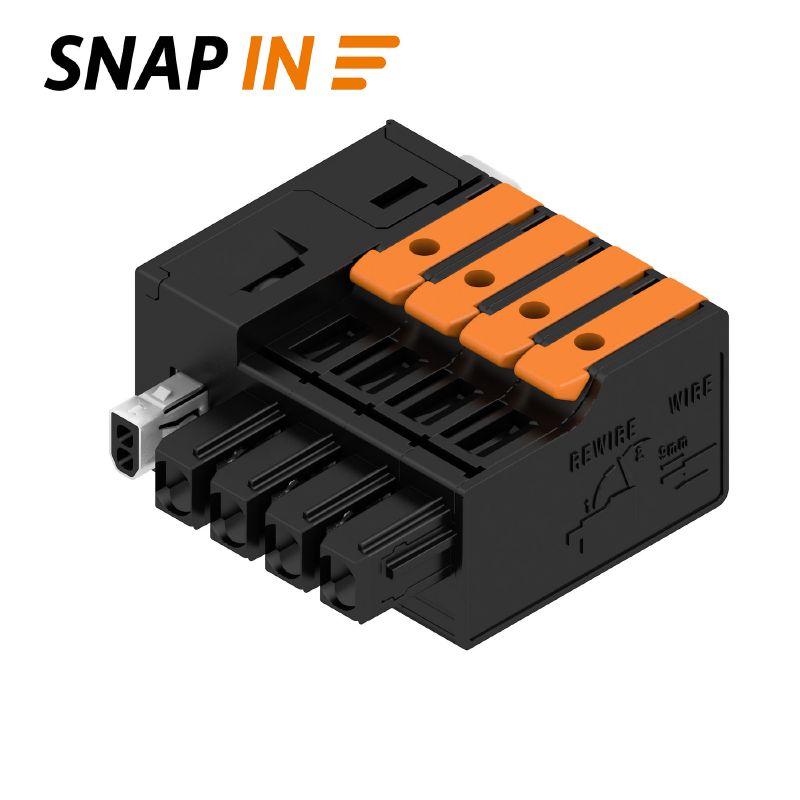

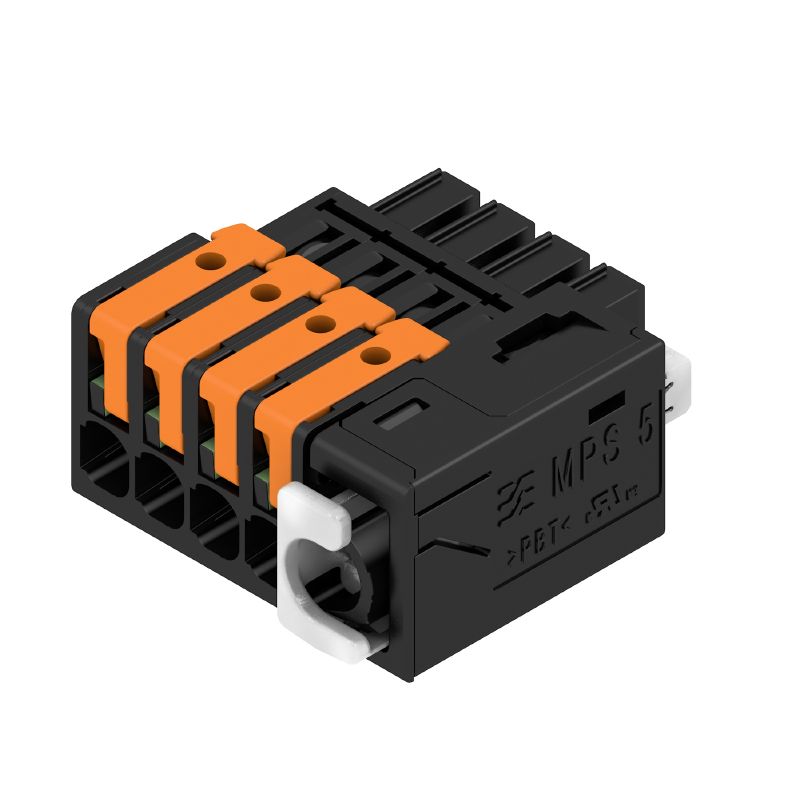

Introducing the MPS 5/04 D11 S TN B B, an efficient female connector tailored for printed circuit boards (PCBs) This connector boasts a 500 mm pin pitch and supports four poles arranged at a 180° angle It adheres to RoHS standards and comes securely packaged in boxes of 60 for easy handling Operating at a voltage capacity of 400 V and a current rating of 268 A according to IEC specifications, it also meets UL standards with maximum ratings of 300 V and 18.
5 A Ideal for various applications, this connector is a reliable choice for your electronic projects.
Features and Benefits:
•Compliant with RoHS and REACH.
•Field connection technology.

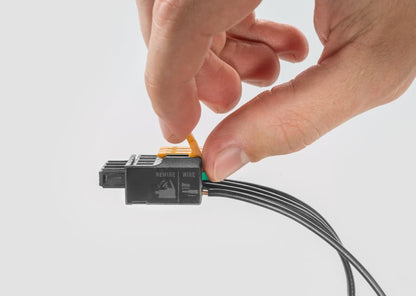

•Snap-in wire connection method.
•Touch-safe protection to DIN VDE standards.
•Designed for ambient temperatures ranging from -50 °C to 125 °C.
•IP20 rated protection degree.
•Safe for finger contact.
Specifications:
| Approvals | RoHS compliant |
| Pitch | 5.00 mm |
| Number of poles | 4 |
| Operating temperature range | -40 °C to 85 °C |
| Insulating material | PBT GF |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Volume resistance | ≤5 mΩ |
| Plugging cycles | 25 |
| Stripping length | 9 mm |
| Net weight | 26.968 g |
| Ambient temperature | -50 °C to 125 °C |
| Storage temperature range | -25 °C to 55 °C |
| IEC rated voltage | 400 V |
| UL rated voltage | 300 V |
| Rated current (IEC) | 26.8 A |
| Rated current (UL) | 18.5 A |
