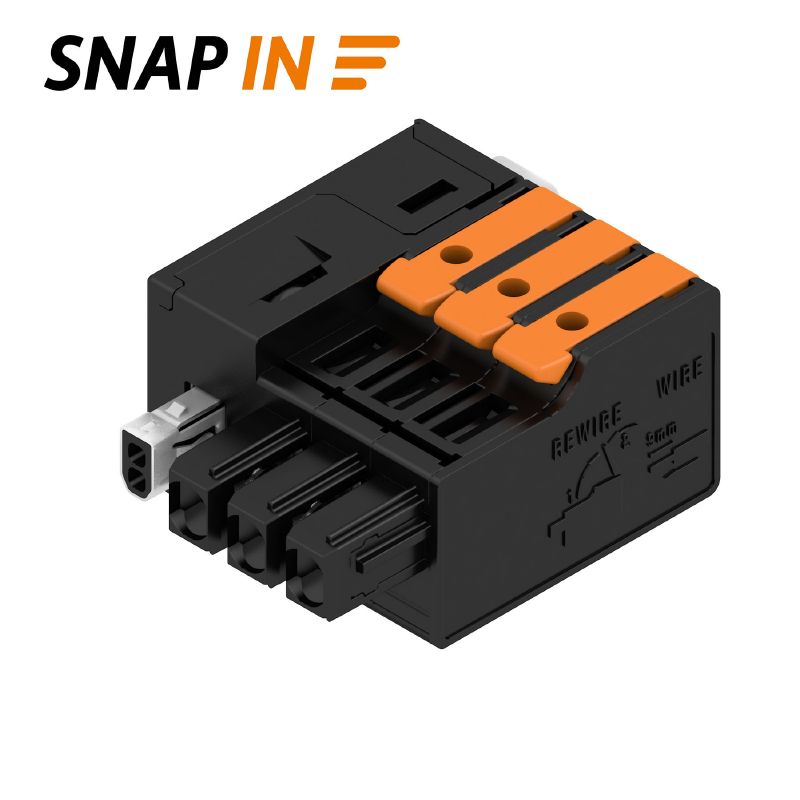

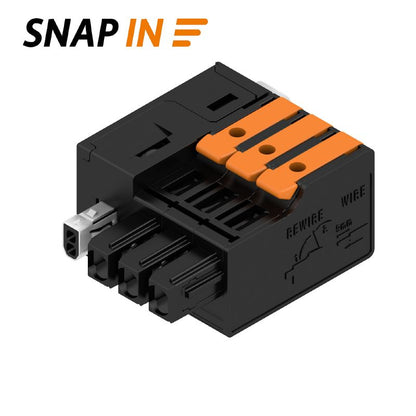

2741780000 - 5mm Pitch 3-Pole Female PCB Connector, Box of 72 (Pack of 72)
2741780000 - 5mm Pitch 3-Pole Female PCB Connector, Box of 72 (Pack of 72)
SKU: SKU: 2741780000 Download PDF
- 2741780000 - 5mm Pitch 3-Pole Female PCB Connector, Box of 72 (Pack of 72)
- 2741780000 - 5mm Pitch 3-Pole Female PCB Connector, Box of 72 (Pack of 72)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a top-notch PCB plug-in connector tailored for female plug connections, featuring a 5 mm pitch and three poles arranged at a 180° angle This connector adheres to international standards, ensuring reliable compatibility and compliance across various applications Each order includes a convenient packaging of 72 units It also meets both IEC and UL safety standards for voltage and current ratings, making it a versatile choice for your electronic needs.
Features and Benefits:
•Compliant with RoHS.
•Features a SNAP IN wire connection method.
•Touch-safe protection according to DIN standards.
•Easy to use with lever mechanism.

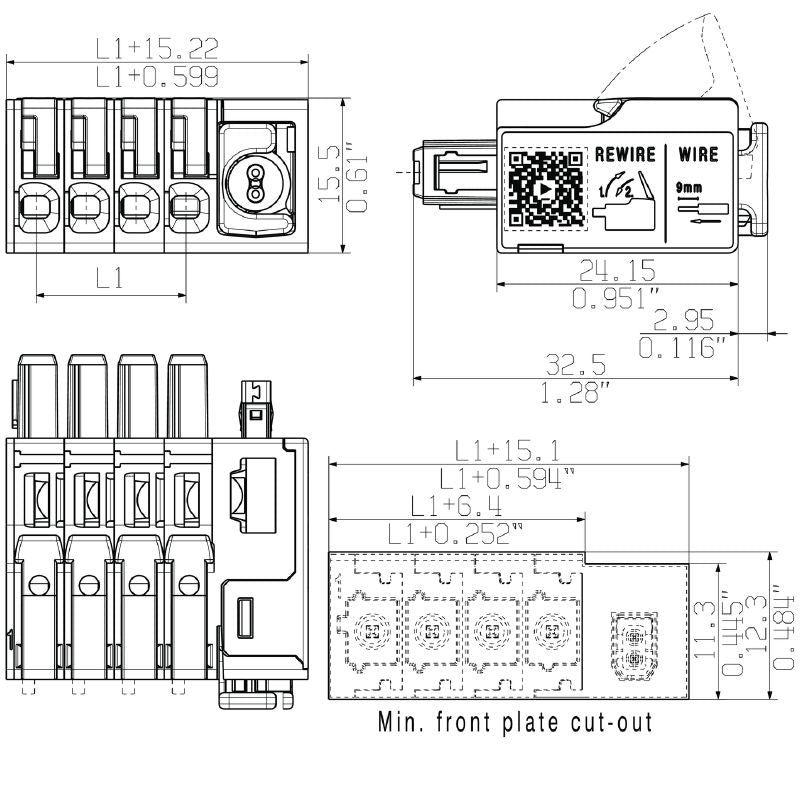

Specifications:
| Order No. | 2741780000 |
| GTIN (EAN) | 4064675055303 |
| Depth | 36 mm |
| Height | 15.5 mm |
| Width | 25.2 mm |
| Ambient temperature | -50 °C…125 °C |
| Rated voltage (IEC) | 400 V |
| Rated current (IEC) | 26.8 A |
| Rated voltage (UL) | 300 V |
| Rated current (UL) | 18.5 A |
| Pitch | 5 mm |
| Number of poles | 3 |
| Protection degree | IP20 |
| Volume resistance | ≤5 mΩ |
| Insulating material | PBT GF |
| Clamping range (min) | 0.34 mm² |
| Clamping range (max) | 4 mm² |
| Plugging cycles | 25 |
| Operating temperature (min) | -40 °C |
| Operating temperature (max) | 85 °C |
