Description:

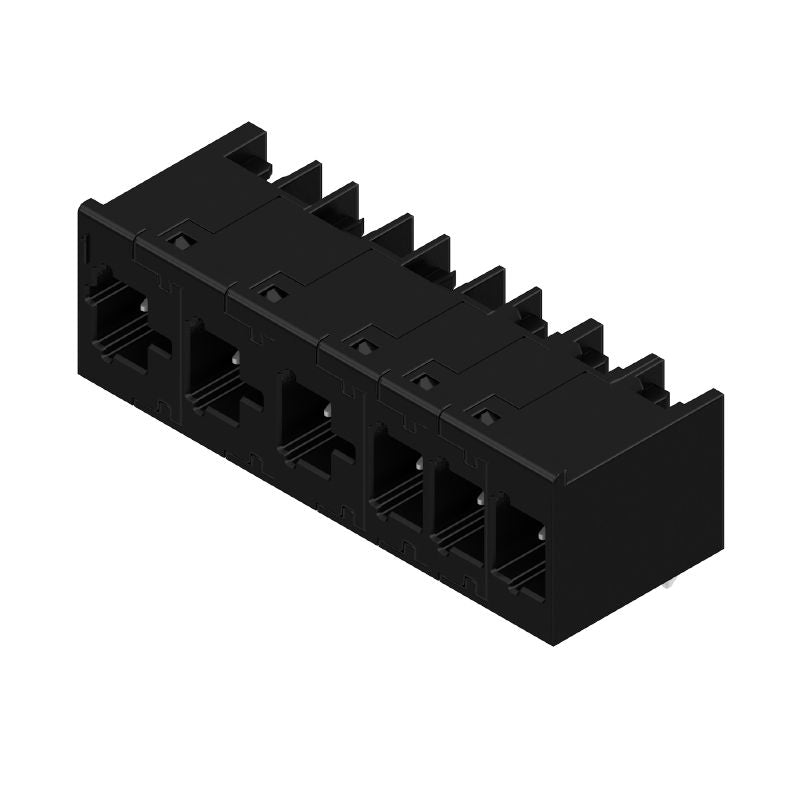

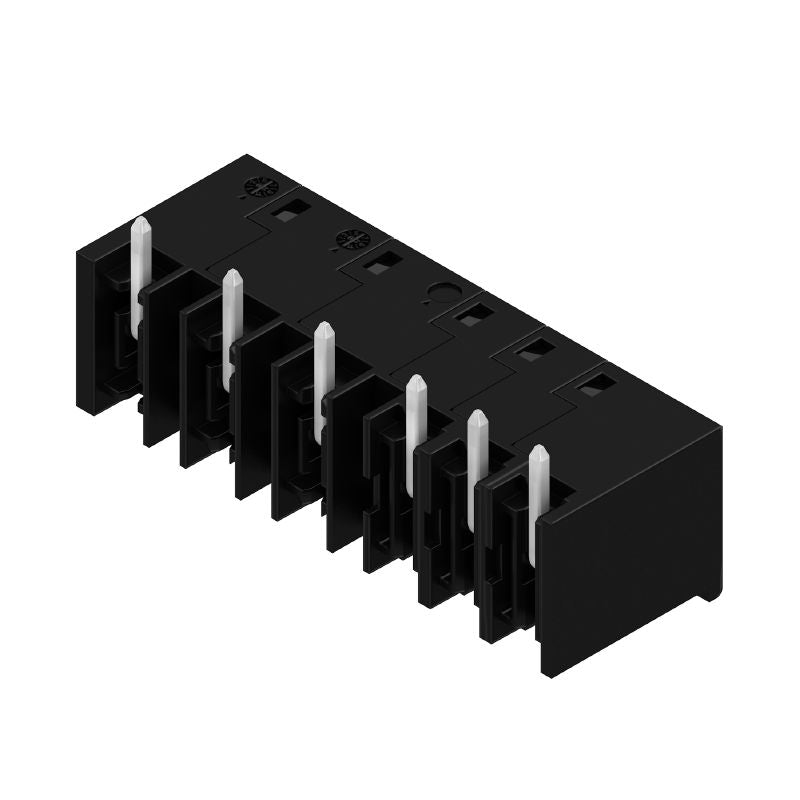

Introducing the MHS 7S/03-5/03 H T3 B T, a reliable male header PCB plug-in connector ideal for THT/THR soldering applications With a 75 mm pitch and six poles arranged at a 90° angle, this connector is conveniently packaged in tubes for easy handling Capable of supporting voltages up to 630 V and currents of 304 A, it meets IEC standards and complies with both RoHS and UL regulations, ensuring dependable performance across a range of uses.
Features and Benefits:
•90° outgoing elbow.
•Insulation material: PA 9T.
•Moisture Level (MSL): 1.
•UL 94 flammability rating: V-0.
•Plugging cycles: ≥ 25.
•Low volume resistance of ≤5 mΩ.

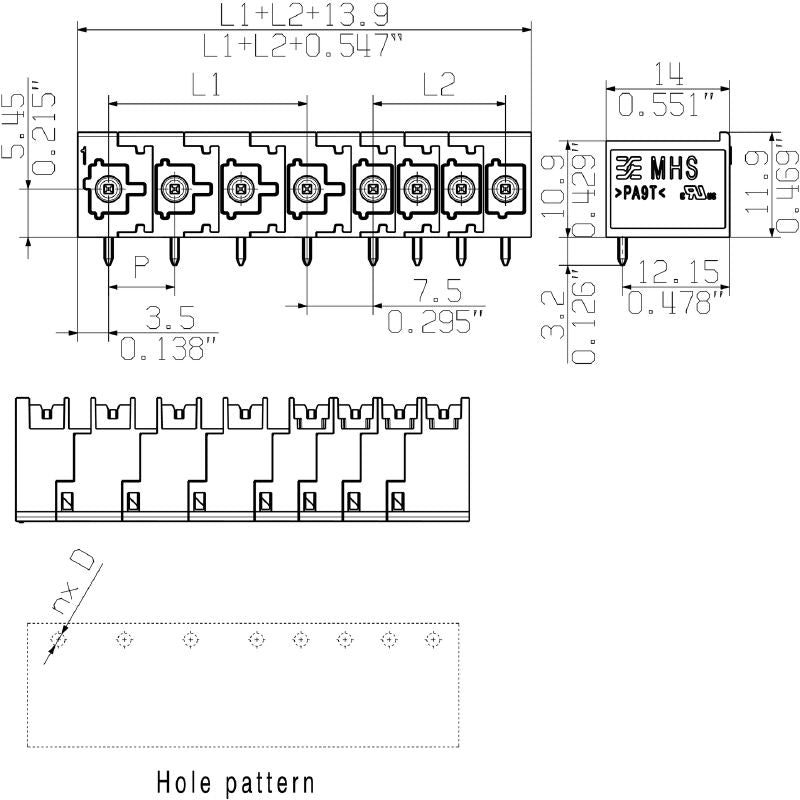

Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 18.5 A |
| Ambient temperature | -50 °C…125 °C |
| Number of solder pins per pole | 1 |
| Solder pin length | 3.2 mm |
| Contact base material | CuMg |
| Contact material | Cu-alloy |
| Number of poles | 6 |
| Pitch in mm (P) | 7.5 mm |
