8000085260 - 6-Pole 7.50mm PCB Connector, THT, RoHS Compliance (Pack of 11)
8000085260 - 6-Pole 7.50mm PCB Connector, THT, RoHS Compliance (Pack of 11)
SKU: SKU: 8000085260 Download PDF
- 8000085260 - 6-Pole 7.50mm PCB Connector, THT, RoHS Compliance (Pack of 11)
- 8000085260 - 6-Pole 7.50mm PCB Connector, THT, RoHS Compliance (Pack of 11)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

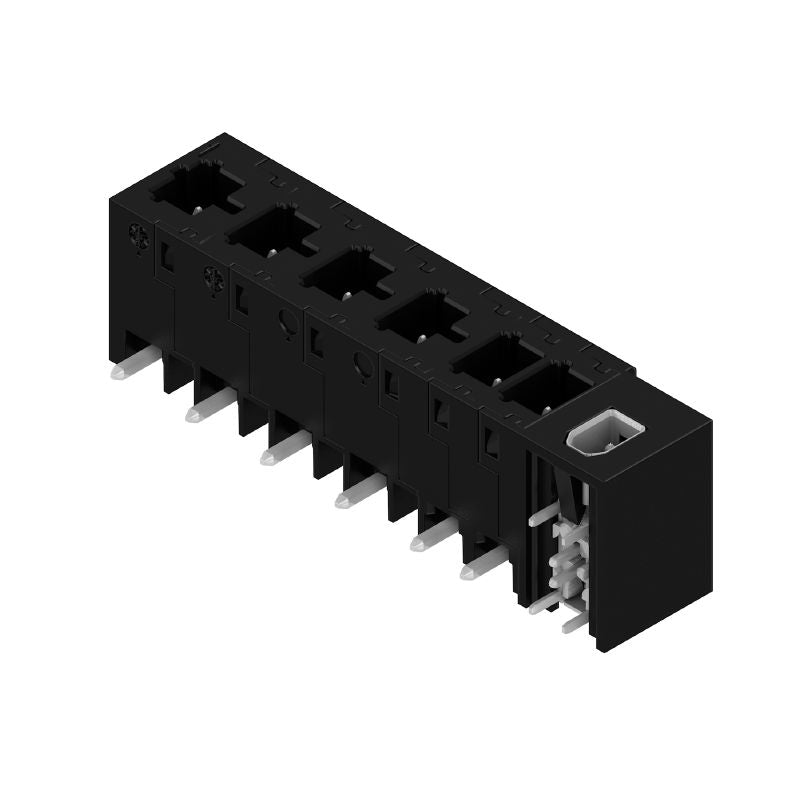

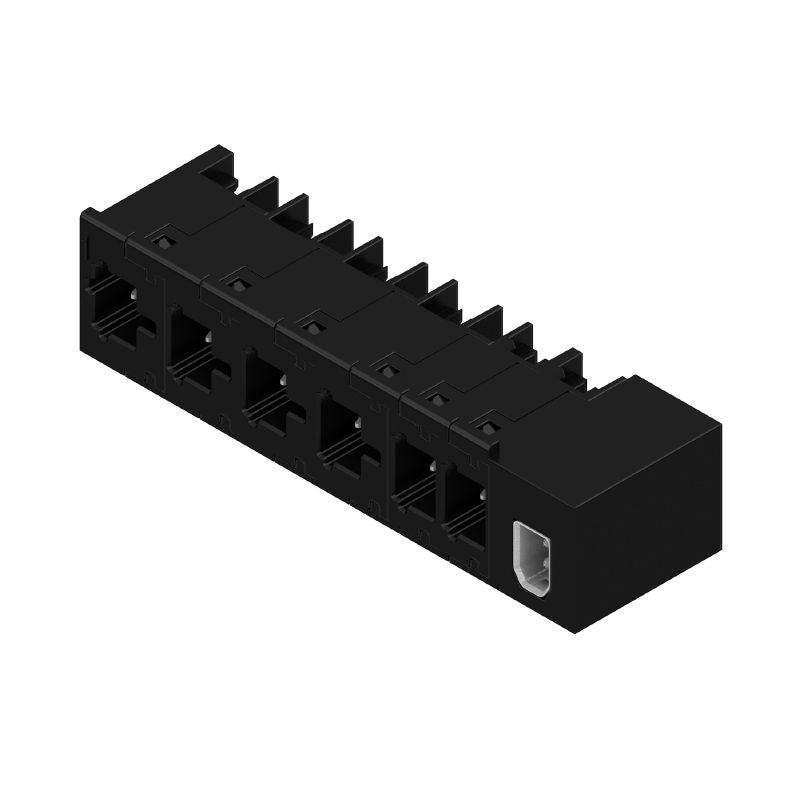

This male header PCB plug-in connector features THT/THR solder connections and is designed with a pitch of 750 mm It includes six poles set at a right-angle, making it versatile for various applications Compliant with RoHS regulations, it supports IEC specifications of 630 V at 304 A and meets UL standards of 300 V at 185 A The connector is packaged in tubes and has a depth of 148 mm, a height of 15.
1 mm, and a net weight of 13903 g It performs reliably in temperatures ranging from -50 °C to 125 °C.
Features and Benefits:
•RoHS compliant without exemption.
•Easy to mount on the PCB using THT/THR solder connection.
•Suitable for a wide range of temperatures, from -50 °C to 125 °C.
•High durability with ≥ 25 plugging cycles.
Specifications:

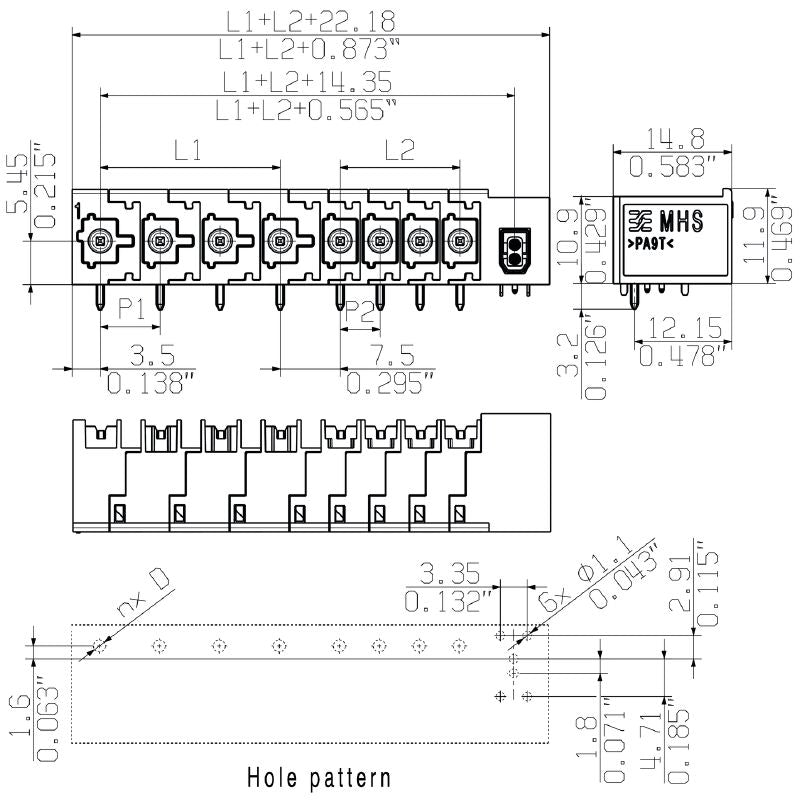

| Pitch in mm | 7.5 mm |
| Number of poles | 6 |
| Outgoing elbow | 90° |
| Solder pin length (l) | 3.2 mm |
| Safety standards | IEC 60664-1, IEC 61984 |
| Rated current | {'min at 20°C': '30.4 A', 'max at 20°C': '26.9 A', 'min at 40°C': '27 A', 'max at 40°C': '23.9 A'} |
| Rated voltage | {'surge voltage class II/2': '630 V', 'surge voltage class III/2': '500 V', 'surge voltage class III/3': '400 V'} |
| Material data | {'Insulating material': 'PA 9T', 'Contact base material': 'CuMg', 'Contact surface': 'tinned'} |
| Storage temperature | {'min': '-25 °C', 'max': '55 °C'} |
| Operating temperature | {'min': '-40 °C', 'max': '85 °C'} |
