2741890000 - 5mm Pitch PCB Female Connector with 3 Poles, 400V Rated (Pack of 72)
2741890000 - 5mm Pitch PCB Female Connector with 3 Poles, 400V Rated (Pack of 72)
SKU: SKU: 2741890000 Download PDF
- 2741890000 - 5mm Pitch PCB Female Connector with 3 Poles, 400V Rated (Pack of 72)
- 2741890000 - 5mm Pitch PCB Female Connector with 3 Poles, 400V Rated (Pack of 72)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

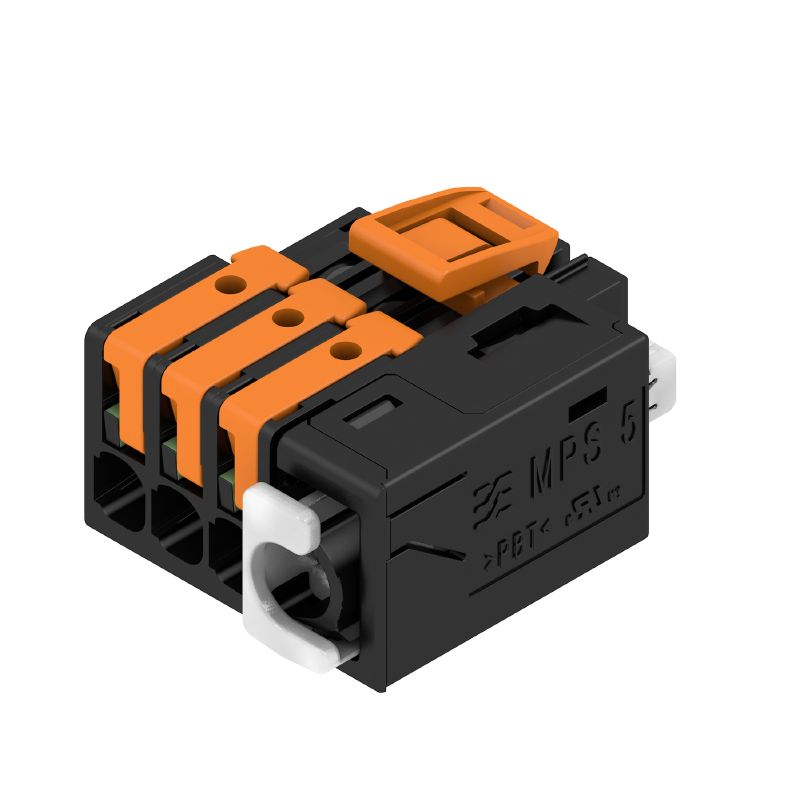

Introducing a versatile PCB plug-in connector, equipped with a female plug that offers a 500 mm pitch and features three poles arranged in a 180-degree alignment This connector is rated for a voltage of 400 V with a current capacity of 268 A in accordance with IEC standards, and 300 V with a current rating of 185 A according to UL standards Each unit is securely packaged in a box and meets RoHS compliance for environmental safety.
Features and Benefits:
•Compliant with RoHS without exemption.
•Touch-safe protection compliant with DIN VDE standards.
•Compatible with various wire cross-sections.

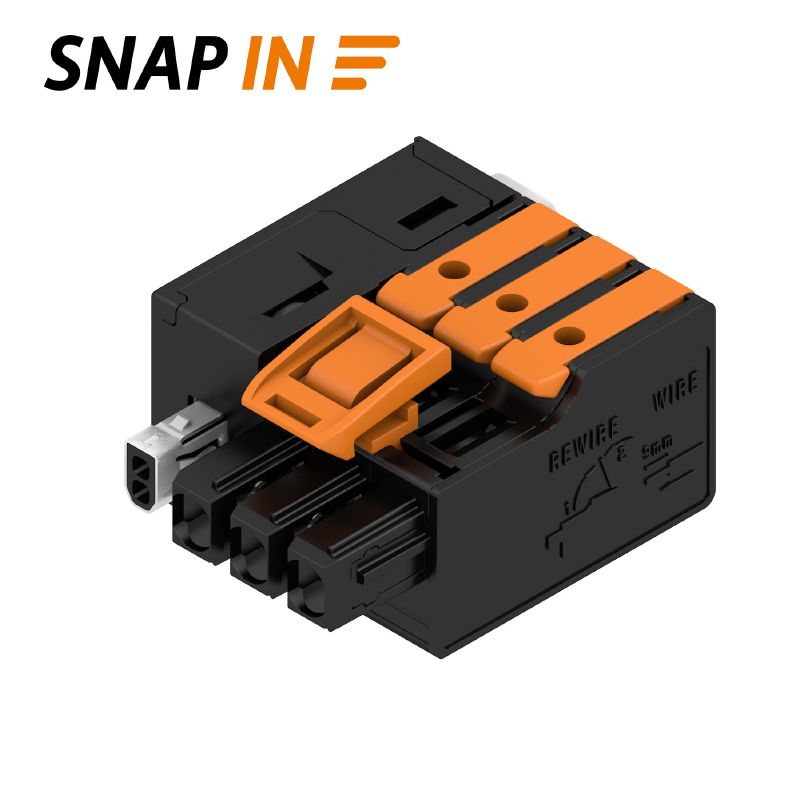

•User-friendly SNAP IN connection method.

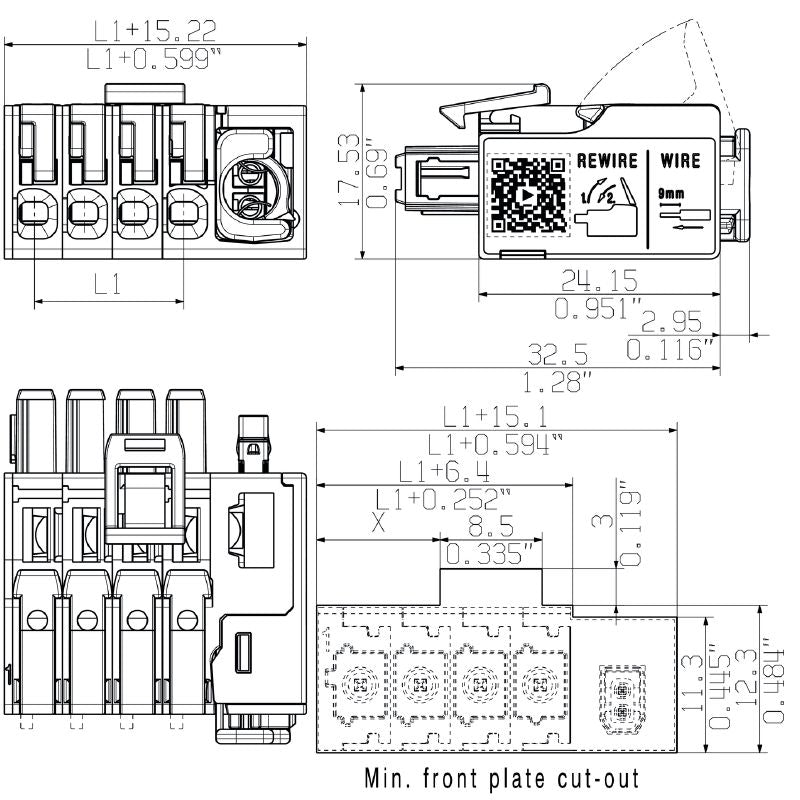

•Compact design with specific dimensions suitable for different applications.
Specifications:
| Depth | 36 mm |
| Height | 17.53 mm |
| Width | 25.2 mm |
| Ambient temperature | -50 °C…125 °C |
| Pitch in mm | 5 mm |
| Number of poles | 3 |
| Operating temperature, min | -40 °C |
| Operating temperature, max | 85 °C |
| Storage temperature, min | -25 °C |
| Storage temperature, max | 55 °C |
| Volume resistance | ≤5 mΩ |
| Protection degree | IP20 |
| Insulating material | PBT GF |
| Contact material | Cu-alloy |
| Rated current, min | 26.8 A |
| Rated current, max | 19.7 A |
| Rated voltage | 400 V |
| Plugging cycles | 25 |
