Description:

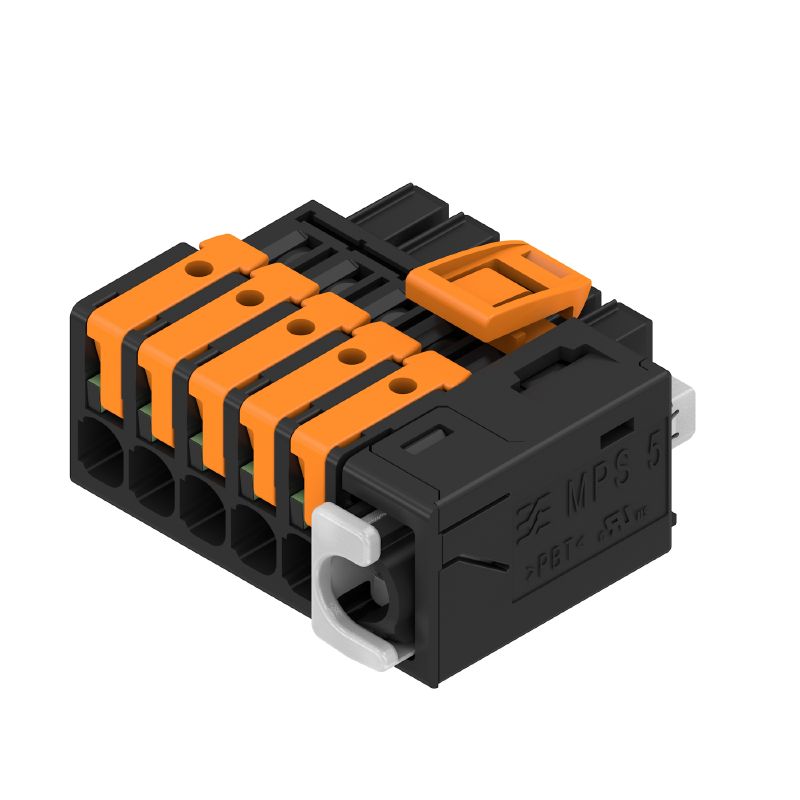

Introducing our female PCB plug-in connector, expertly crafted with a 500 mm pitch and configured with 5 poles in a convenient 180° layout This versatile connector is compatible with a variety of wire sizes and boasts an IEC rating of 400 V, allowing for a maximum current of 268 A It supports wire gauges ranging from 05 to 4 mm² For additional safety, it has a UL rating that accommodates up to 300 V and 18.
5 A for wires measuring between AWG 18 and AWG 14 Each box contains 48 connectors, ensuring you have ample supply for your projects Environmentally friendly, this connector meets RoHS standards and operates effectively in temperatures from -50 °C to 125 °C.
Features and Benefits:
•RoHS compliant without exemption.
•Clamping range allows for a variety of conductor sizes.
•Touch-safe protection according to DIN VDE.
•High current and voltage ratings suitable for various applications.
•Plugging cycles rated up to 25.

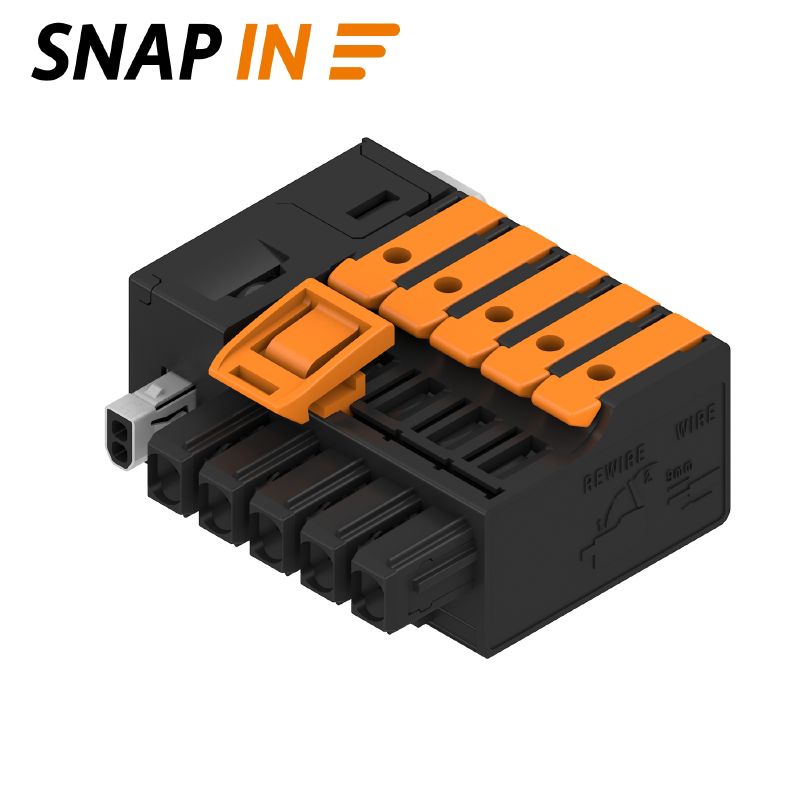

•Easy handling with a SNAP IN lever connection method.
Specifications:

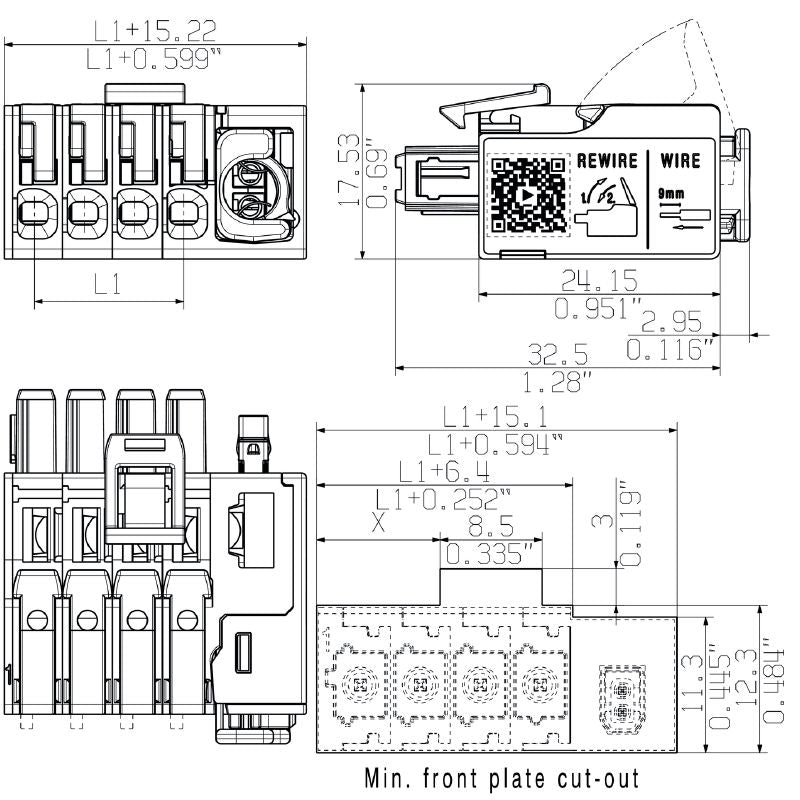

| Depth | 36 mm |
| Height | 17.53 mm |
| Width | 35.2 mm |
| Ambient temperature | -50 °C…125 °C |
| Operating temperature | -40 °C to 85 °C |
| Storage temperature | -25 °C to 55 °C |
| Volume resistance | ≤5 mΩ |
| IP protection degree | IP20 |
| Insulating material | PBT GF |
| Colour | black |
| Rated voltage | 400 V |
| Rated current | 26.8 A |
| Pitch | 5 mm |
| Number of poles | 5 |
| Stripping length | 9 mm |
