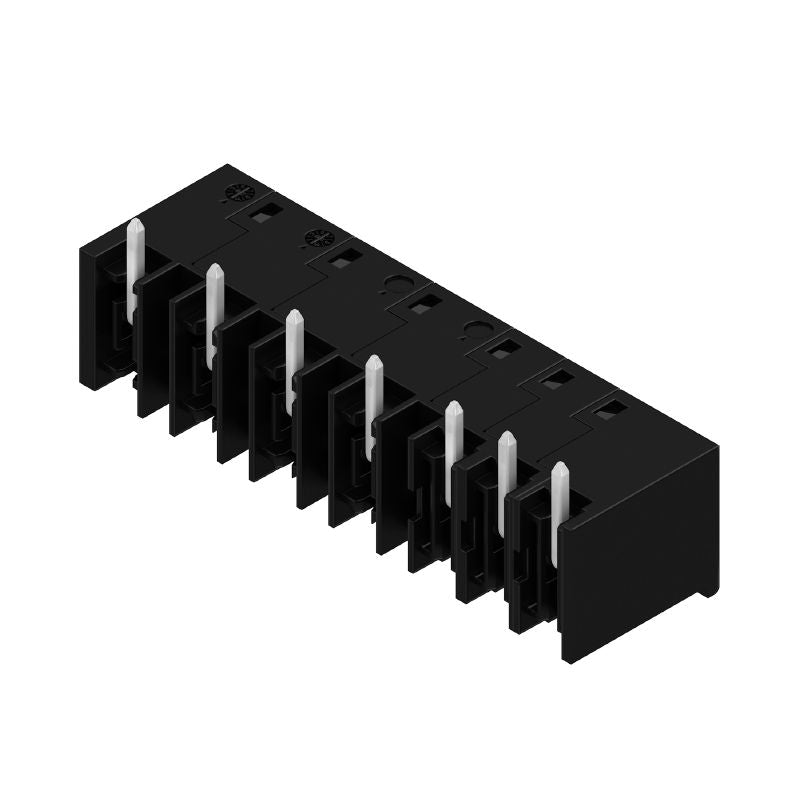

8000078340 - 7 Pole PCB Connector, 7.50mm Pitch, Male Header THT/THR (Pack of 11)
8000078340 - 7 Pole PCB Connector, 7.50mm Pitch, Male Header THT/THR (Pack of 11)
SKU: SKU: 8000078340 Download PDF
- 8000078340 - 7 Pole PCB Connector, 7.50mm Pitch, Male Header THT/THR (Pack of 11)
- 8000078340 - 7 Pole PCB Connector, 7.50mm Pitch, Male Header THT/THR (Pack of 11)
Couldn't load pickup availability
Description:
Introducing a top-notch PCB plug-in connector featuring a male header suitable for THT/THR soldering connections With a pitch measurement of 750 mm, this connector supports 7 poles and is designed with a 90° outgoing elbow for optimal space efficiency It meets RoHS standards and boasts UL certification (certificate number E60693) for added assurance of quality Capable of enduring temperatures between -50 °C and 125 °C, this connector weighs 6.
708 g and is conveniently packaged in a tube, making it the perfect choice for interfacing with PCBs in various applications.
Features and Benefits:
•RoHS compliant.
•UL certified.
•Designed for THT/THR solder connection.
•Multi-pole configuration.

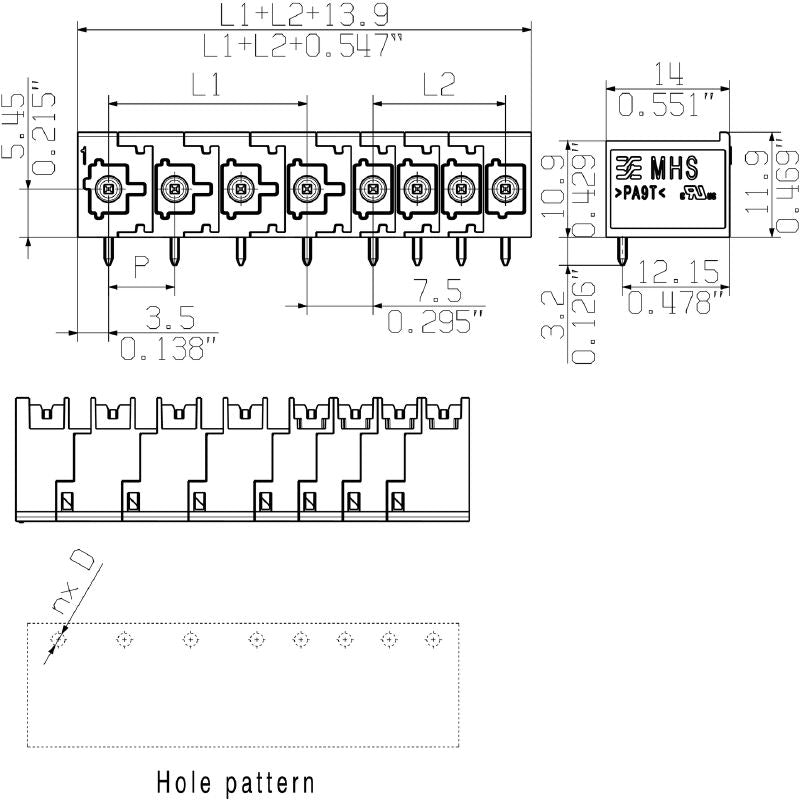

Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Number of poles | 7 |
| Rated voltage | 630 V |
| Rated current | 30.4 A |
| Insulating material | PA 9T |
| Operating temperature range | -50 °C to 100 °C |
| Pitch | 7.5 mm |
| Plugging cycles | ≥ 25 |
| Solder pin length | 3.2 mm |
| Contact material | CuMg |
