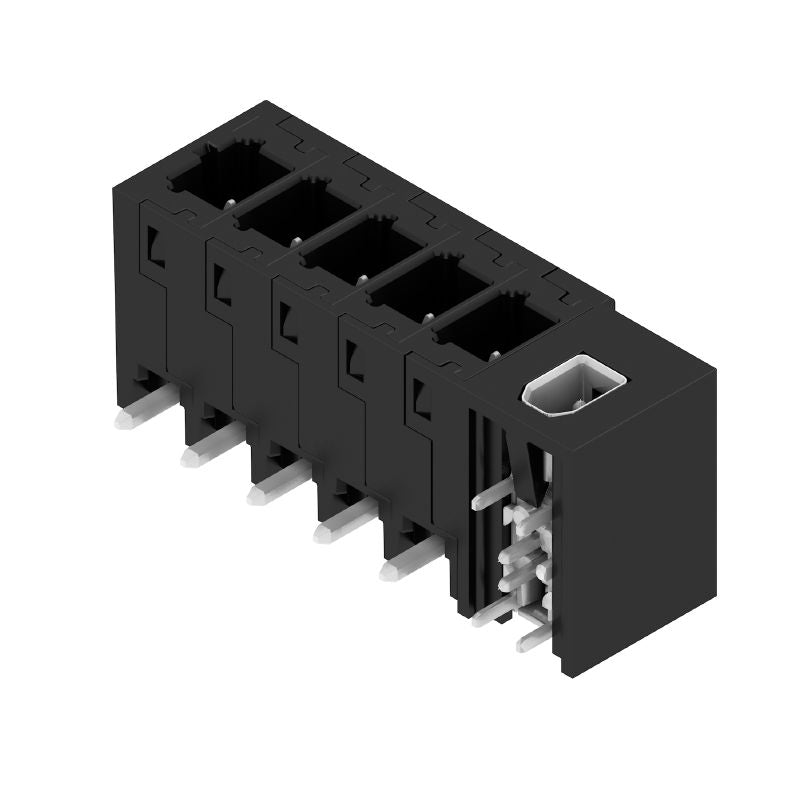

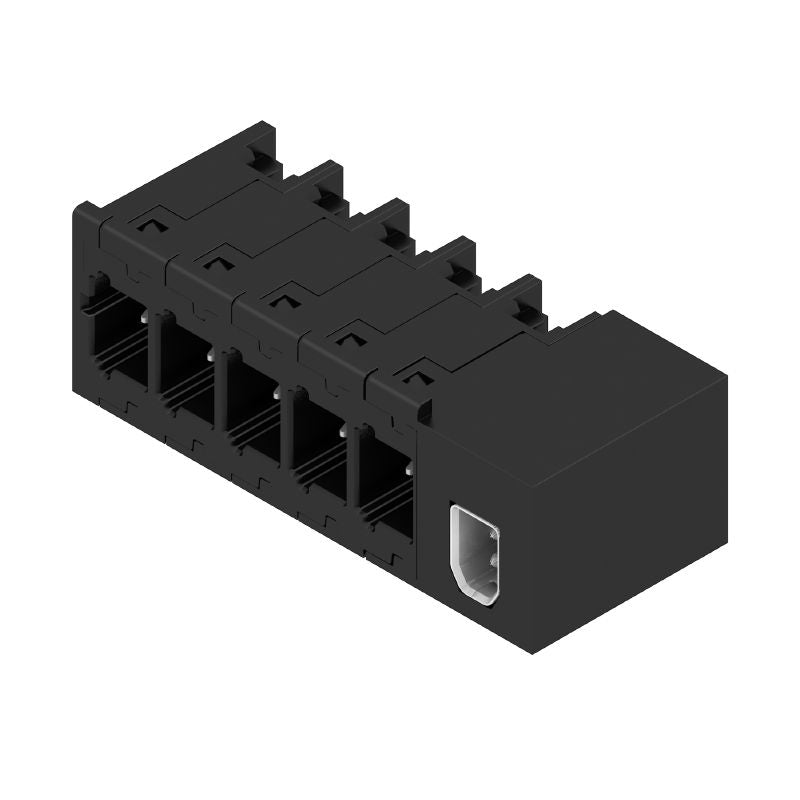

2741540000 - 5-Pole PCB Plug Connector, 5mm Pitch, THT/THR Solder (Pack of 15)
2741540000 - 5-Pole PCB Plug Connector, 5mm Pitch, THT/THR Solder (Pack of 15)
SKU: SKU: 2741540000 Download PDF
- 2741540000 - 5-Pole PCB Plug Connector, 5mm Pitch, THT/THR Solder (Pack of 15)
- 2741540000 - 5-Pole PCB Plug Connector, 5mm Pitch, THT/THR Solder (Pack of 15)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Elevate your PCB projects with this male header PCB plug-in connector, specifically crafted for THT/THR soldering methods This connector features a 500 mm pitch and comprises 5 poles, making it ideal for reliable PCB mounting Each unit is conveniently packaged in tubes containing 15 connectors With compliance to RoHS and REACH regulations, this product also meets certified environmental standards, ensuring it’s a responsible choice for your electronic needs.
Features and Benefits:
•Tube packaging for convenient distribution.
•Touch-safe protection according to DIN VDE standards.
•High rated current and voltage specifications.
•Compliant with international standards including IEC 60664-1 and IEC 61984.
Specifications:
| IEC Voltage Rating | 400 V / 26.8 A |
| UL Voltage Rating | 300 V / 18.5 A |

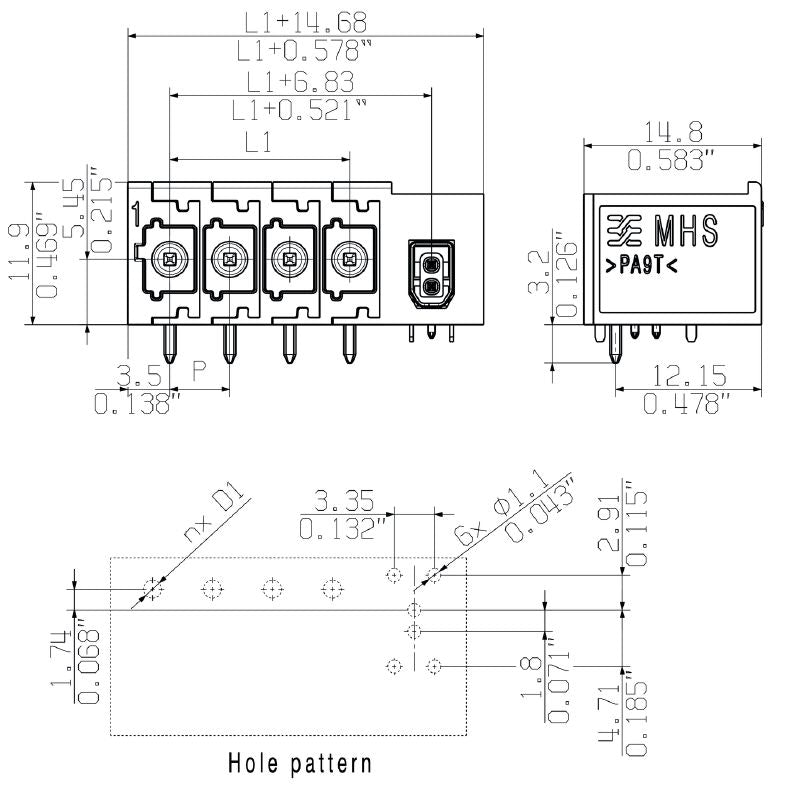

| Depth | 14.8 mm |
| Height | 15.1 mm |
| Width | 34.7 mm |
| Ambient Temperature | -50 °C…125 °C |
| Insulating Material | PA 9T |
| Color | black |
| Rated Current at 20°C (min) | 26.8 A |
| Rated Voltage | 400 V |
| Protection Degree | IP20 |
| Volume Resistance | ≤5 mΩ |
| Solder Pin Length | 3.2 mm |
| Rated Impulse Voltage | 4 kV |
| Clearance Distance | 4 mm |
| Creepage Distance | 5.4 mm |
