1059750400 - 40m PROFINET Dragline Cable, M12 D-Code, IP67 Rating

SKU: SKU: 1059750400 Download PDF

Select a Variant:

1059750400 - 40m PROFINET Dragline Cable, M12 D-Code, IP67 Rating

SET THE QTY:

Now $228.96 Web pricing policy

~~BEFORE $0.00~~ Now $228.96 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

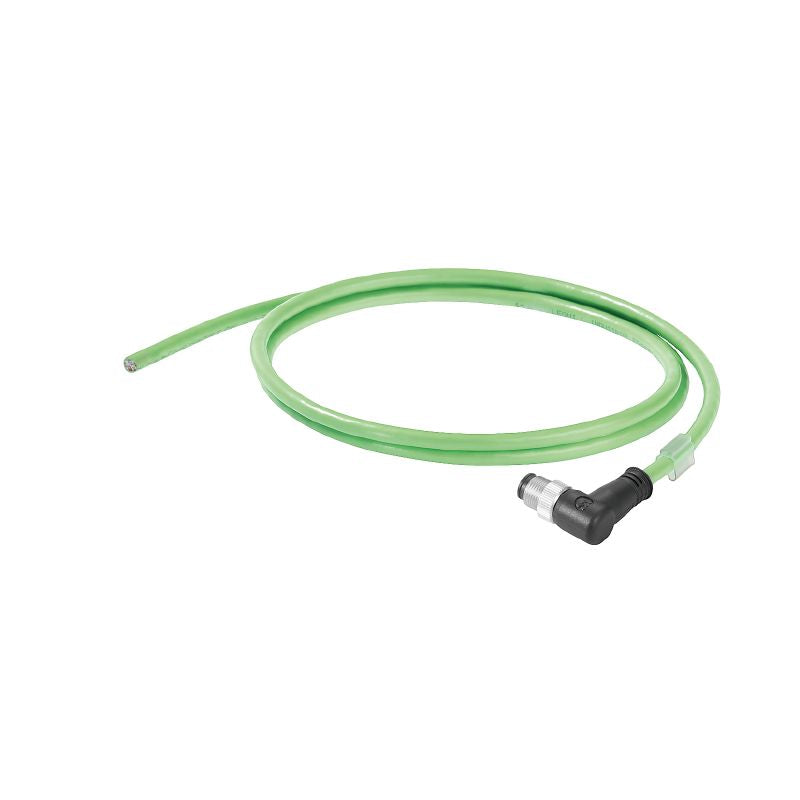

Enhance your connectivity with the Dragline cable, expertly crafted for PROFINET applications This cable is equipped with M12 D-code angled pins that meet the IP 67 standard for durability in various conditions It adheres to Cat5 and Cat5e specifications according to ISO/IEC 11801 and TIA T568-B With a generous length of 40 meters and constructed from robust PUR material, this cable is ideal for reliable data transmission in demanding environments.

Features and Benefits:

•Compliant with RoHS exemption.

•Very good abrasion resistance.

•Halogen-free according to IEC 60754-2.

•Suitable for installation in temperatures ranging from -20 °C to 60 °C.

Specifications:

Length	40 m
Diameter of inner sheathing	3.9 mm
Sheath diameter, max.	6.7 mm
Sheath diameter, min.	6.3 mm
Sheathing material thickness	0.9 mm
Cross-section	4*AWG 22/7 - 0.32 mm²
Wire core insulation thickness	0.38 mm
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Operating voltage (UL rating)	600 V
Speed	180 m/min
Delay skew	40 ns/100m
Loop resistance	120 Ω/km
Capacity at 1 kHz	52 nF/km
Resistance differential	3 %
Test voltage: wire-wire-shield	2000 V eff, 50 Hz, 1 min
Transfer impedance	20 mΩ/m at 10 MHz
Pulling force	≤ 150 N
Min. bending radius, once only	5 x cable diameter
Min. bending radius, repetitive	7.5 x cable diameter
Bending cycles	3 Mio
Fire propagation	No
Silicone-free	Yes
Resistance to oils	in accordance with IEC 60811-2-1
