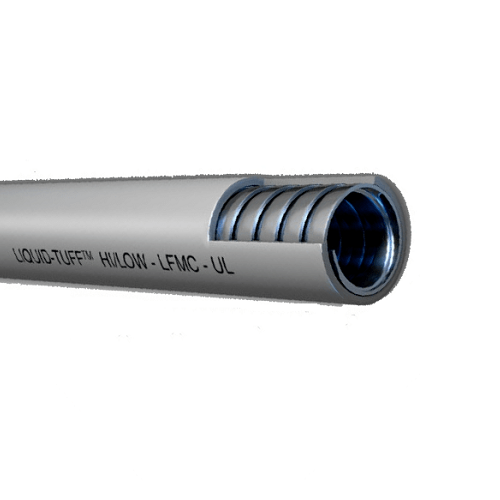

UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

Applications:

• Direct burial in earth
• Concrete embedment
• Sunlight and weather exposure
• Suitable for grounding per NEC 250.118(6), 3/8“ – 1 1⁄4”
• Hazardous location per NEC 501
• Raised computer room floors per NEC 645.5(D)
• Service entrance wiring up to 6 feet per NEC 230.43(15)
• Feeders and services for marina and boat yards

Also Known As:

Type UL, Type LFMC, Liquid Tight Conduit, Flexible Steel Conduit, PVC Jacket, Rugged Non-Metallic.

Description:

• UL bonded strip 3/8“ – 1 1⁄4” for grounding
• Flame retardant PVC jacket
• Hot dipped zinc galvanized low carbon steel core
• UL Liquidtight all sizes
• Sunlight resistant
• Available in Grey, Black, Red, Orange, Yellow or Green

Construction:

• The UL Type LFMC Liquid Tight Flexible Steel Conduit features a uniform width and thickness, formed from a zinc coated galvanized low carbon steel strip. This construction adheres to the requirements of UL 360 and CSA C22.2 Number 56. The dimensions of the completed LFMC, as specified in Table 5.1 of UL 360 and Table 2 of CSA C22.2 No. 56, are guaranteed to meet industry standards.
• Rugged moisture, oil and sunlight resistant polyvinyl chloride (PVC) jacket shall be applied directly over the flexible metal conduit with a wall thickness in accordance with Table 4.1 of UL 360 and Table 4 of CSA C22.2 No.56 which are summarized in Table 2. Jacket Colors: Grey, Black, Red, Orange, Yellow or Green

Temperature Rating:

• 80°C to –30°C Dry
• 60°C Wet
• 70°C Oil resistant
