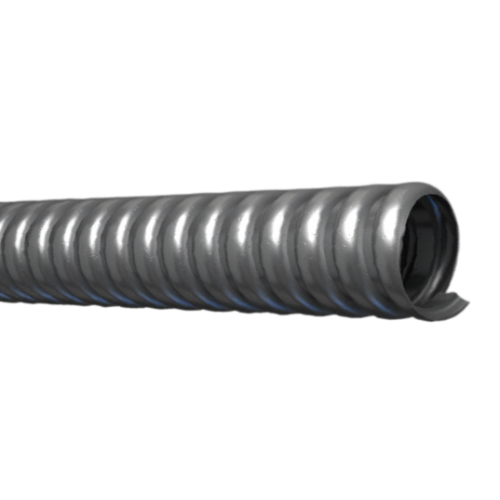

3/8" Trade Reduced Wall Aluminum Flexible Metal Conduit

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Allowable Ampacity for 3/8" Trade Reduced Wall Aluminum Flexible Metal Conduit: 100 Amps

Applications:

• Flexible metal raceway for electrical power, control and communication cables
• Motor leads
• Listed assemblies
• Listed wire fixtures
• Manufactured wiring systems

Also Known As:

Reduced Wall Conduit, Flexible Aluminum Conduit, Metal Conduit, AFC Conduit, Flexible Metal Conduit, Interlocking Conduit, Aluminum Metal Conduit, AFC Interlocking Conduit, AFC Reduced Wall, AFC Metal Conduit, AFC Aluminum Conduit, AFC Flexible Conduit, 5601-22-00*, 5601-24-00*, 5601-30-00*, 5601-42-00*, 5601-45-00*, 5601-60-00*.

About:

Constructed with a lightweight, reduced wall design, this flexible metal conduit is crafted from premium aluminum alloy and is reinforced with an interlocking pattern for enhanced longevity.

References & Ratings:

• UL 1, UL 1479, File Reference E11831, CSA File Number 15035, CSA C22.2 No. 56 (trade size 3/8 only)
• Cable Tray installations per NEC
• Federal Specification WW-C–566C, (now superseded by UL 1)
• NEC 250.118(5), 300.22(C), 348, 430.223, 501.10(B)(2), 645.5
• Environmental Air-Handling space installation NEC 300.22(C)
• UL Classified 1, 2 and 3-hour Through-Penetration Fire Systems UL File R14141

Specification:

• Trade Size: 3/8" Inches
• Coil Length: 25 FT, 50 FT, 100 FT, 250 FT
• Reel Length: 500 FT, 1000 FT
• Weight: 0.0630 lbs/ft
• Internal Diameter Min: 0.375 Inches
• Internal Diameter Max: 0.393 Inches
• External Diameter Min: 0.560 Inches
• External Diameter Max: 0.610 Inches
• Bend Radius: 2 Inches
• Part Number: 5601-22-00*, 5601-24-00*, 5601-30-00*, 5601-42-00*, 5601-45-00*, 5601-60-00*
