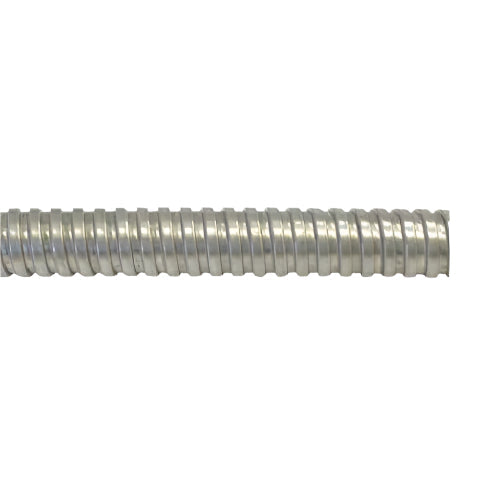

1 9/16" Trade FSS40 Stainless Steel Corrugated Conduit

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications: Metro rail stations and tunnels.

Allowable Ampacity for 1 9/16" Trade FSS40 Stainless Steel Corrugated Conduit:100 Amps

Also Known As:

AFC Cable, Corrugated Conduit, FSS Cable, Stainless Steel, Annularly Corrugated Conduit, Flexicon Metallic Conduit, FSS40 AFC.

About:

This product boasts an IP68 rating, ensuring complete protection against dust and water immersion. It is capable of withstanding extreme temperature ranges, from -100°C to +400°C, without compromising performance. With high mechanical strength, it offers impressive pull-off strength of 100kg at 20mm and a high compression strength of 1000kg per 100mm. Its inherent low fire hazard makes it a safe choice for various environments. Additionally, it meets the LUL Std S1085 (pending) standard, as well as EN 45545-2 to HL3 and NFPA 130 compliance. The material is highly resistant to corrosion, oil, and UV exposure, while providing effective EMC screening and anti-static properties.

Construction:

Stainless steel (316L) annularly corrugated conduit. Inherent Low Fire hazard performance with superior Ingress Protection (IP68) and excellent corrosion resistance.

Color: Self-color, also available in black version on request

Specification:

Nominal Size: 40 mm
Trade Size: 1 9/16"
Reel Length: 10 m
Inside Diameter: 34.1 mm
Outside Diameter: 41.3 mm
Min Inside Bend Radius: 105 mm
Part Number: FSS40
