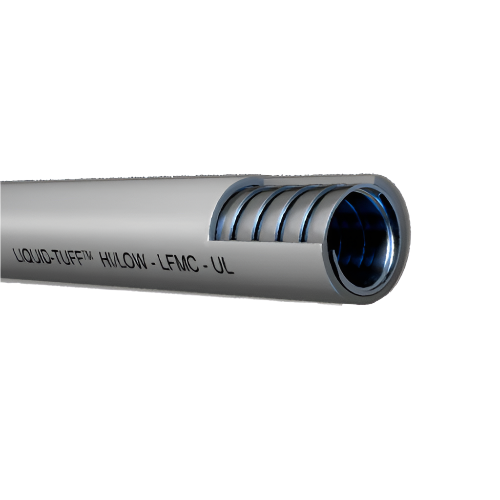

1" Trade UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Direct burial in earth
• Concrete embedment
• Sunlight and weather exposure
• Suitable for grounding per NEC 250.118(6), 3/8“ – 1 1⁄4”
• Hazardous location per NEC 501
• Raised computer room floors per NEC 645.5(D)
• Service entrance wiring up to 6 feet per NEC 230.43(15)
• Feeders and services for marina and boat yards

Also Known As:

Type UL, Type LFMC, Liquid Tight Conduit, Flexible Steel Conduit, PVC Jacket, Rugged Non-Metallic, 6204-30-BK AFC, 6204-80-BK AFC, 6204-64-00 AFC.

About:

• UL bonded strip 3/8“ – 1 1⁄4” for grounding
• UL Liquidtight all sizes
• Flame retardant PVC jacket
• Sunlight resistant
• Hot dipped zinc galvanized low carbon steel core
• Available in Grey, Black, Red, Orange, Yellow or Green

Construction:

• The 1" Trade UL Type LFMC Liquid Tight Flexible Steel Conduit with PVC Jacket is made from zinc-coated galvanized low carbon steel strip, maintaining consistent width and thickness. Its construction meets the standards of UL 360 and CSA C22.2 No. 56. The final dimensions of Type LFMC comply with the specifications in Table 5.1 of UL 360 and Table 2 of CSA C22.2 No. 56.
• A durable, moisture-, oil-, and sunlight-resistant polyvinyl chloride (PVC) jacket is applied directly over the flexible metal conduit, with a wall thickness meeting the specifications outlined in Table 4.1 of UL 360 and Table 4 of CSA C22.2 No. 56, as summarized in Table 2. Available jacket colors include grey, black, red, orange, yellow, and green.

Temperature Rating:

• 80°C to –30°C Dry
• 60°C Wet
• 70°C Oil resistant

Specification:

• Trade Size: 1" inch
• Coil Length: 100ft
• Reel Length: 400ft 1250ft.
• Weight: 0.8295 lbs/ft
• Bend Radius: 6.5 inch
• External Diameter Over Conduit Max: 1.201 inch
• External Diameter Over Conduit Min: 1.226 inch
• External Diameter Over Jacket Min: 1.290 inch
• External Diameter Over Jacket Max: 1.315 inch
• Internal Diameter Min: 1.041 inch
• Internal Diameter Max: 1.066 inch
• Part Number: 6204-30-00
• Part Number: 6204-80-00
• Part Number: 6204-64-00
