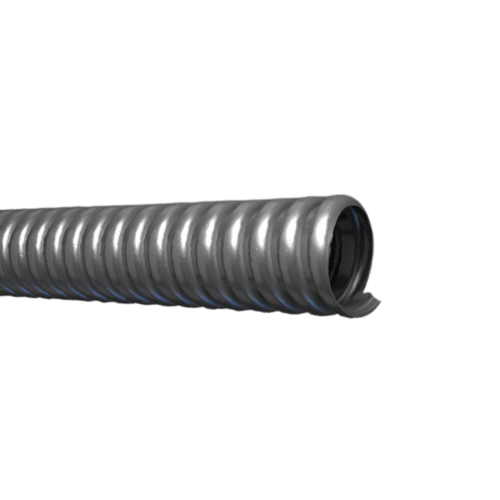

1" Trade Heavy Wall Type Ray-Flex CSA Aluminum Flexible Conduit

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Flexible Aluminum Conduit (FAC): A raceway of circular cross-section made of helically wound, interlocked aluminum strip.
• Suitable for use in accordance with CEC Rule 12-1000 Rigid and Flexible Metal Conduit
• Suitable for installation in or on buildings or portions of buildings of either combustible or non-combustible construction per CEC 12-1002(1)
• Support shall be provided in accordance with CEC 12-1010(3)
• Suitable for use in hoist ways per CEC 12-014(1)
• Suitable for Wiring under raised floors for data processing and similar systems per CEC 12-020(2)
• Suitable for use in Class I Zone 2 where flexibility is required per CEC 18.152(6)
• UL/CSA Equipment
• Raceways

Also Known As:

Reduced Wall Conduit, Flexible Aluminum Conduit, Metal Conduit, AFC Conduit, Flexible Metal Conduit, Interlocking Conduit, Aluminum Metal Conduit, AFC Interlocking Conduit, AFC Reduced Wall, AFC Metal Conduit, AFC Aluminum Conduit, AFC Flexible Conduit, 5704-21-00

Description:

Heavy wall flexible aluminum conduit

Standards:

• CSA Certified to CSA C22.2 No.56
• UL 1
• Suitable for use in hazardous locations as per CEC Class I, Zone 2 & Div.2, Class II Div. 1 & 2, Class III Div. 1 & 2
• C22.1 - Canadian Electrical Code, Part I Safety Standard for Electrical Installations Rule 12-1000
• C22.2 No. 56 - CSA Standard for Flexible Metal Conduit and Liquid-Tight Flexible Metal Conduit, Master Contract 157782, File Number LL15035
• UL 1 - Standard for Flexible Metal Conduit , UL File Number E11831
• NEC Articles - 356, 390.15, 501.10(B)(2), 502.10(A)(2), 503.10(A)(2), 511.7(A)(1), 620.21, 645.5(D)(2), 680.21, 680.23, 680.25, 680.27, 680.42, 695.6(E) and 695.14(E)

Specification:

• Trade Size: 1" Inches
• Coil Length: 30 M
• Weight: 0.3158 lbs/ft
• Internal Diameter Min: 1.0 Inches
• Internal Diameter Max: 1.040 Inches
• External Diameter Min: 1.300 Inches
• External Diameter Max: 1.380 Inches
• Bend Radius: 10.0 Inches
• 30 M Coil Code: 5704-21-00
