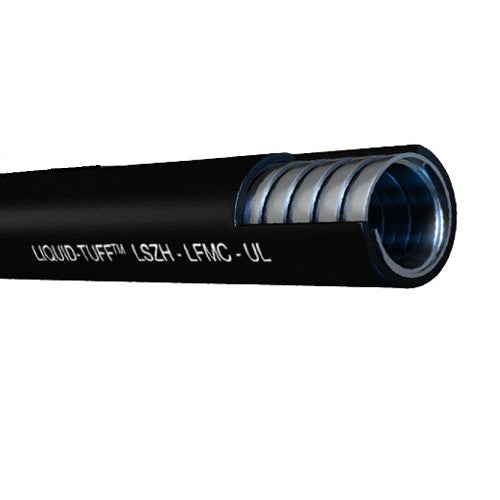

1-1/4" Trade UL And CSA LFMC Type LSZH Liquid Tight Flexible Metal Conduit TPU Jacket

Applications:

• Wherever limiting toxic material of combustion is needed
• Direct burial and concrete embedment
• Bond wire for grounding in sizes 3/8“ – 11⁄4” NEC 250.118(6)
• Hazardous locations per NEC 501

Also Known As:

Type UL, Type LFMC, Type LSZH, Liquid Tight Conduit, Flexible Conduit, TPU Jacket, Flexible Metal Conduit, Low Smoke Conduit, 6705-24-00 AFC, 6705-40-00 AFC, 6705-47-00 AFC.

Description:

• Low smoke, zero halogen raceway
• Low toxicity generation characteristics
• Hot dipped zinc galvanized low carbon steel core
• Excellent temperature ratings
• Black thermoplastic polyurethane jacket
• UL copper bonding strip 3/8“ – 11⁄4” for grounding
• Sunlight resistant
• Flame retardant TPU jacket

Construction:

The LIQUID-TUFF LSZH Liquidtight Flexible Metal Conduit is constructed from a zinc-coated, galvanized low-carbon steel strip with uniform width and thickness. A continuous bonding strip is incorporated into the conduit core for trade sizes 3/8 through 1 1/4. The construction complies with the UL 360 Standard. The Low Smoke Zero Halogen (LSZH) designation is validated through testing to ASTM 162 (Flame Spread Index), ASTM E662 (Smoke Density Generation), and Bombardier SMP-800C (Toxic Gas Generation). The final dimensions adhere to Table 5.1 of UL 360.

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 70°C/158°F Oil resistant
• –40°C/-40°F Low Temperature

Specification:

• Trade Size: 1-1/4" inch
• Coil Length: 50ft
• Reel Length: 200ft, 750ft.
• Weight: 1.0710 lbs/ft
• Bend Radius: 8 inch
• Internal Diameter Min: 1.380 inch
• Internal Diameter Max: 1.410 inch
• External Diameter Over Conduit Min: 1.540 inch
• External Diameter Over Conduit Max: 1.570 inch
• External Diameter Over Jacket Min: 1.630 inch
• External Diameter Over Jacket Max: 1.660 inch
• Part Number: 6705-24-00
• Part Number: 6705-40-00
• Part Number: 6705-47-00
