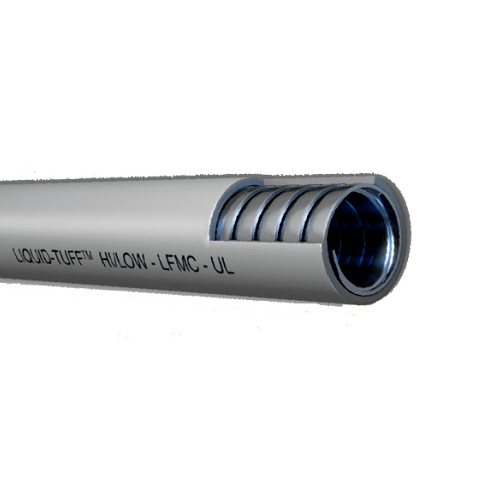

1-1/2" Trade UL Type LFMC Liquid Tight Flexible Steel Conduit PVC Jacket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Applications:

• Direct burial in earth
• Concrete embedment
• Sunlight and weather exposure
• Suitable for grounding per NEC 250.118(6), 3/8“ – 1 1⁄4”
• Hazardous location per NEC 501
• Raised computer room floors per NEC 645.5(D)
• Service entrance wiring up to 6 feet per NEC 230.43(15)
• Feeders and services for marina and boat yards

Also Known As:

Type UL, Type LFMC, Liquid Tight Conduit, Flexible Steel Conduit, PVC Jacket, Rugged Non-Metallic, 6206-24-BK AFC, 6206-35-BK AFC.

About:

• UL bonded strip 3/8“ – 1 1⁄4” for grounding
• UL Liquidtight all sizes
• Flame retardant PVC jacket
• Hot dipped zinc galvanized low carbon steel core
• Sunlight resistant
• Available in Grey, Black, Red, Orange, Yellow or Green

Construction:

• The Type UL Liquidtight Flexible Steel Conduit is constructed from a zinc-coated, galvanized low-carbon steel strip with consistent width and thickness. It meets the requirements of UL 360 and CSA C22.2 No. 56 standards. The final dimensions of Type LFMC conform to Table 5.1 of UL 360 and Table 2 of CSA C22.2 No. 56.

• The flexible metal conduit is coated with a durable polyvinyl chloride (PVC) jacket that is resistant to moisture, oil, and sunlight. The specified wall thicknesses can be found in Table 4.1 of UL 360 and Table 4 of CSA C22.2 No. 56, which are summarized in Table 2. Jacket color options include grey, black, red, orange, yellow, and green.

Temperature Rating:

• 80°C to –30°C Dry
• 60°C Wet
• 70°C Oil resistant

Specification:

• Trade Size: 1-1/2" inch
• Coil Length: 50ft
• Reel Length: 150ft, 750ft.
• Weight: 1.1445 lbs/ft
• Bend Radius: 9 inch
• External Diameter Over Conduit Max: 1.735 inch
• External Diameter Over Conduit Min: 1.770 inch
• External Diameter Over Jacket Min: 1.865 inch
• External Diameter Over Jacket Max: 1.900 inch
• Internal Diameter Min: 1.575 inch
• Internal Diameter Max: 1.600 inch
• Part Number: 6206-24-00
• Part Number: 6206-35-00
• Part Number: 6205-47-00
