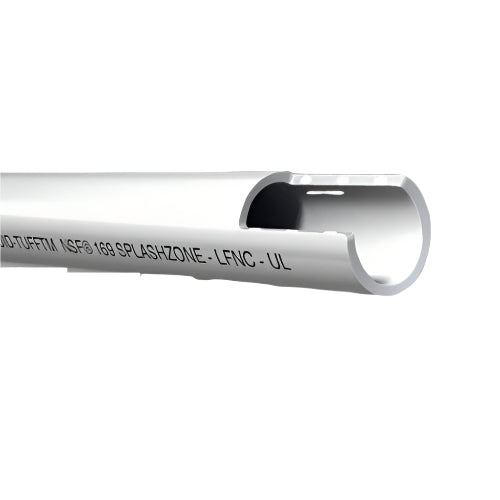

1" Trade Nonmetallic Type LFNC-B Splash Zone Rugged PVC Jacket White NSZ4-30-00

Allowable Ampacity for 1" Trade Nonmetallic Type LFNC-B Splash Zone Rugged PVC Jacket White NSZ4-30-00: 100 Amps

Applications:

• Food equipment & other devices associated with food production
• NSF 169 Component compliant
• For use in “splash zones” contiguous to food production – wash down areas PVC jacket does not promote the growth of bacteria
• Meat packing, restaurants, food processing, poultry packing, pharmaceutical facilities

Also Known As:

Hydrotite Conduit, Nonmetallic Conduit, Type LFNC-B, Splash Zone Conduit, Rugged Nonmetallic, PVC Jacket, White Jacket Conduct, NSZ4-30-00 AFC.

About:

• NSF 169 Component for “splash zones” in food production areas
• NSF 169 Component Special Purpose Food Equipment and Devices
• Rugged nonmetallic PVC construction
• Non-conductive – non-corrosive
• PVC jacket inhibits bacteria growth – color white
• Ease of cleaning/sterilization using bleach – no degradation of jacket
• UL 1660, UL File E123464
• NSF 169 Special Purpose Food Equipment and Devices
• NEC 356, 390.15, 501.10(B)(2), 502.10(A)(2), 503.10(A)(2), 511.7(A)(1), 620.21, 680.21, 680.23, 80.25, 680.27, 680.42, 695.6(E), and 695.14(E)
• Made in USA of US and/or imported materials

Temperature Rating:

• 80°C/176°F Dry
• 60°C/140°F Wet
• 0°C/158°F Oily
• -20°C/-14°F After installation

Specification:

Trade Size: 1" inch
Coil Length: 100 feet
Weight: 0.2835 lbs
Reel Length: 1.201/1.226 Feet
Bend Radius: 6.5 inch
Internal Diameter Min: 1.041 inch
Internal Diameter Max: 1.066 inch
External Diameter Min: 1.290 inch
External Diameter Max: 1.315 inch
Part Number: NSZ4-30-00
